Qnap TS569L Kuwait

Qnap TS569L Kuwait

The Qnap TS569L Kuwait supports SMB/CIFS, NFS and AFP protocols for file sharing across Windows, Mac, Linux/UNIX networks. Your accounts and shared folders can be created via a user-friendly web based interface without IT expertise.



Qnap TS569L Kuwait

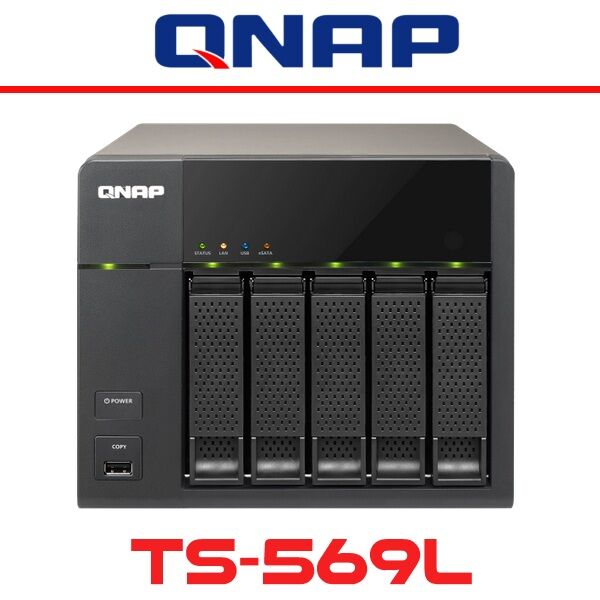

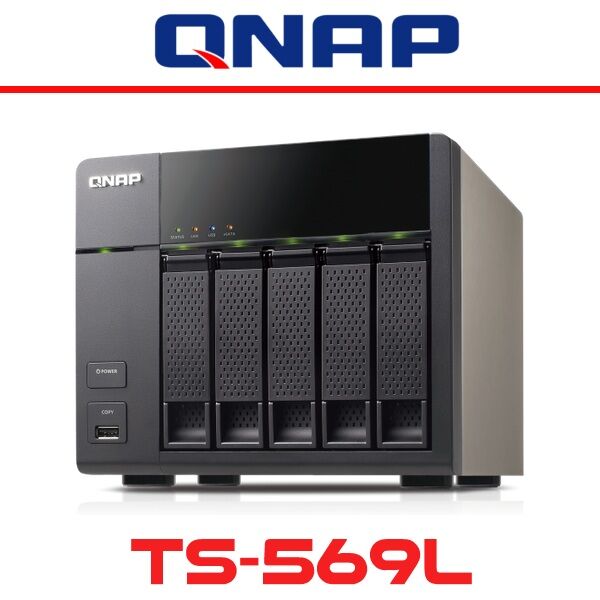

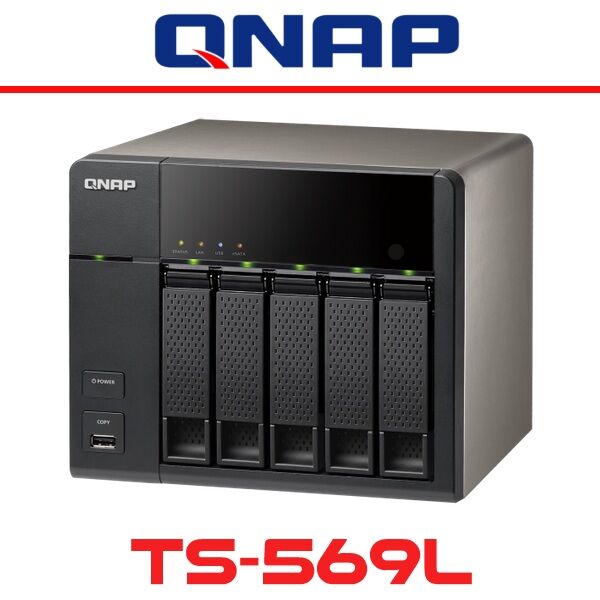

The Qnap TS569L Kuwait Turbo NAS Server for SMBs from QNAP is a 5-bay, all-in-one NAS server with exceptional performance that can meet the storage requirements of modern SMB IT environments. It includes secure cross-platform file sharing for Windows, Mac and Linux/UNIX users, an iSCSI / IP-SAN storage combo solution and a number of value-added business applications. Critical business information can be safely protected against unexpected data loss with a set of integrated backup solutions. It is also an ideal shared storage solution for virtualized and clustered environments with VMware Ready and Citrix Ready certification, and has proven compatibility in Microsoft Hyper-V environments.

The intuitive MyCloudNAS service simplifies the process of publishing content present in the Turbo NAS over the Internet and helps you create a private cloud in just a few simple steps. Mobile apps including Qfile, Qmanager and Qmobile provide iOS or Android users a convenient way to access and monitor the Turbo NAS live and on the go.


  • Cross-Platform Sharing with Antivirus
    • The Qnap TS-569L Kuwait supports SMB/CIFS, NFS and AFP protocols for file sharing across Windows, Mac, Linux/UNIX networks. Your accounts and shared folders can be created via a user-friendly web based interface without IT expertise. The integrated antivirus solution for the Turbo NAS ensures business stability. It offers detection against the latest viruses, malware, worms and Trojan horses.
  • Windows Active Directory (AD) and LDAP Directory Service
    • The Windows AD and Lightweight Directory Access Protocol (LDAP) is a directory service feature that enables you to retrieve user accounts from Windows AD or LDAP based directory server to the Turbo NAS. This reduces time and effort in setting up a new account. You can use the same login name and password to access the Turbo NAS.
  • Shared Folder Aggregation
    • As an added convenience, you can connect to the shared folders of other servers on Microsoft Networking via the portal folder on the Qnap TS-569L Kuwait. This minimizes the hassle of logging in to various servers one by one.
  • ISO File Archiving and Sharing
    • The Qnap TS-569L Kuwait supports the mounting of ISO images of CD or DVD discs for network sharing folders for data archiving, storage and sharing. This feature conserves much more space than storing the physical discs. It lowers the risk of data loss due to long-term use of the discs and improves the performance of data sharing on a business network.
  • Advanced Folder Permissions
    • You can configure folder/subfolder access to the Qnap TS-569L Kuwait  with advanced folder permissions. With this feature enabled, you can manage the folder permissions from Microsoft Windows or the web-based management interface of the Turbo NAS easily.
  • Policy-Based Unauthorized IP Blocking
    • You can allow, deny or auto block specified IP addresses or network domains, which attempt to connect to the Turbo NAS, via SSH, Telnet, HTTP(S), FTP, Samba or AFP.
  • Remote Login
    • The Qnap TS-569L Kuwait supports remote login via SSH (secure shell) or Telnet connection.
  • SSL Security (HTTPS)
    • Qnap TS-569L Kuwait supports HTTPS connection. You can upload a secure certificate and RSA private key in X.509PEM format issued by a trusted provider to allow access to the NAS server via secure SSL login.
  • Secure FTP
    • The Qnap TS-569L Kuwait server offers secure data transfer with SSL/TLS (explicit) encryption. It also supports Passive FTP port range setup.

QNAP TS-569L Specs

CPU Intel Atom 2.13 GHz Dual-core processor
Flash Memory 512 MB DOM
Hard Disk Drive 5x 3.5″ (88.9 mm) or 2.5″ (63.5 mm) SATA 6 Gb/s, SATA 3 Gb/s hard drive or SSD
Hard Disk Tray 5x Hot-swappable and Lockable tray
LAN Port 2x Gigabit RJ-45 Ethernet ports
LED Indicators Status, LAN, USB, eSATA, Power, HDD 1, HDD 2, HDD 3, HDD 4, HDD 5
USB 2x USB 3.0 port (Back: 2)
5x USB 2.0 port (Front: 1; Back: 4)
Support USB printer, pen drive, USB hub, and USB UPS and more
eSATA 2x eSATA ports (back)
Buttons Power, USB One-Touch-Backup, Reset
Alarm Buzzer System warning
Form Factor Tower
Sound Level HDD Sleep: 14.7 dB
In Operation: 21.43 dB
(with 5 x 500 GB HDDs installed)
Power Consumption Sleep mode: 29 W
In Operation: 48.5 W
Power-off (in WOL mode): 1 W
(with 500 GB HDD installed)
Power Supply Input: 100-240 VAC, 50/60 Hz, Output: 250 W
Secure Design K-lock security slot for theft prevention
VGA Reserved VGA interface for maintenance
Fan 1x quiet cooling fan 4.72″ (12 cm), 12 VDC
Operating System Embedded Linux
Supported Operating System Windows XP, Vista, Windows 7, 8 (32/64-bit), Windows Server 2003/2008 R2
Apple Mac OS X
Linux & UNIX
Supported Web Browsers Microsoft Internet Explorer 8, 9
Mozilla Firefox 8, 9, 10
Apple Safari 4, 5
Google Chrome
Language Support Chinese (Traditional and Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish
File System Internal Hard Drive: EXT3, EXT4
External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+
Networking TCP/IP (IPv4 and IPv6: Dual stack)
Dual Gigabit NICs with jumbo frame
-Multi-IP settings
-Port trunking/NIC teaming (Modes: Balance-rr, Active Backup, Balance XOR, Broadcast, IEEE 802.3ad/Link Aggregation, Balance-tlb and Balance-alb)
Service binding based on network interfaces
Virtual LAN (VLAN)
DHCP client, DHCP server
Protocols: CIFS/SMB, AFP (v3.3), NFS (v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP and SMSC
UPnP and Bonjour discovery
USB Wi-Fi adapter support
Backup Solution Real-time Remote Replication (RTRR)
-Works as both RTRR Server & Client with bandwidth control
-Real-time & Scheduled backup
-Encryption, Compression, File filter, and Transfer rate limitation
Block-level Remote Replication
-Works as both Rsync Server & Client with bandwidth control
-Encrypted replication between QNAP NAS servers
USB one touch backup (Import/Export)
Desktop backup by QNAP NetBak Replicator for Windows
Apple Time Machine support with backup management
Data backup to multiple external storage devices
Data backup to cloud storage (Amazon S3, ElephantDrive, and Symform)
Security IP Filter and Policy-based automatic IP blocking
Network Access Protection with Auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
Encrypted Access: HTTPS, FTP with SSL/TLS (Explicit), SSH/SFTP (admin only), Encrypted remote replication between QNAP NAS servers (Rsync over SSH)
CIFS Host Access Control for shared folders
Antivirus protection
FIPS 140-2 validated AES 256-bit volume-based data encryption
AES 256-bit external drive encryption
Importable SSL certificate
Instant alert via E-mail, SMS, Instant messaging (Windows Live), beep and LCD panel
Disk Management Single Disk, JBOD, RAID 0, 1, 5, 5+hot spare, 6, 6+hot spare, 10, 10+hot spare
Online RAID capacity expansion and online RAID level migration
Bad block scan and hard drive S.M.A.R.T.
RAID recovery
Bitmap support
iSCSI (IP SAN) iSCSI target
Multi-LUNs per target
Up to 256 targets/LUNs combined
Supports LUN mapping & masking
Online LUN capacity expansion
Supports SPC-3 persistent reservation
Supports MPIO & MC/S
iSCSI LUN backup, one-time snapshot, and restore
iSCSI connection and management by QNAP Finder (Windows)
Virtual disk drive (via iSCSI Initiator)
Stack chaining master
Max no. of virtual disk drives: 8
Server Virtualization and Clustering Supports VMware vSphere
Supports Citrix XenServer
Supports Windows server 2008 R2 Hyper-V & Failover clustering
Power Management Wake on LAN
Internal hard drive standby mode
Scheduled Power on/off (Max 15 settings)
Automatic power on after power recovery
USB and network UPS support with SNMP management
Access Rights Management Max no. of users: 4,096
Max no. of user groups: 512
Max no. of network shares: 512
Batch Users creation
Import/Export users
User Quota management
Subfolder permissions support for CIFS/SMB, AFP, FTP and Web File manager
Domain Authentication Integration Microsoft Active Directory (AD)
LDAP Server
LDAP Client
Domain users login via CIFS/SMB, AFP, FTP, and Web File Manager
MyCloudNAS Service Private Cloud Storage and Sharing
Free Host Name registration (DDNS)
Auto Router configuration (via UPnP)
MyCloudNAS Connect for easy VPN connection (Windows utility)
Storage Plug & Play Windows Software: QNAP Finder
Create and map shared folders
Create and connect to iSCSI target/LUN
Web Administration AJAX-based UI
Smart fan control
Dynamic DNS (DDNS)
SNMP (v2 & v3)
Resource monitor
Network recycle bin for file deletion via CIFS/SMB and AFP
Comprehensive logs (events & connection)
Syslog client
Firmware Live update
System settings backup and restore
Restore to factory default
Powerful All-in-one server
File Server File sharing across Windows, Mac, and Linux/UNIX
Shared Folder aggregation (CIFS/SMB)
Web File manager
-Supports ISO mounting
-Direct file viewing via Google Doc
-Create and send download links for public file sharing with expiration time and password protection
FTP Server FTP over SSL/TLS (Explicit)
Max no. of concurrent connections: 256
FXP supported
Passive FTP port range control
FTP bandwidth & connection control
Unicode support
Backup Server Remote Replication Server (over Rsync)
Real-time Remote Replication to another QNAP NAS or FTP Server
