APC SMT1000 IC Kuwait

APC SMT1000 IC Kuwait

APC SMT1000 IC Kuwait boasts of a SmartConnect, an easy-to-use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.

Category:

Description

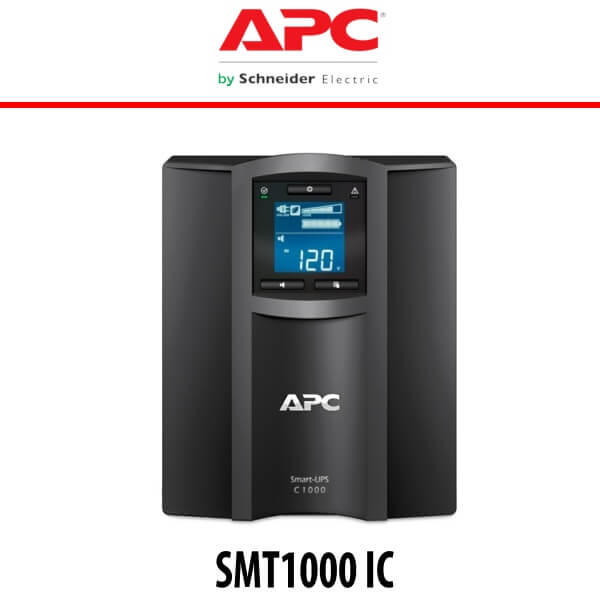

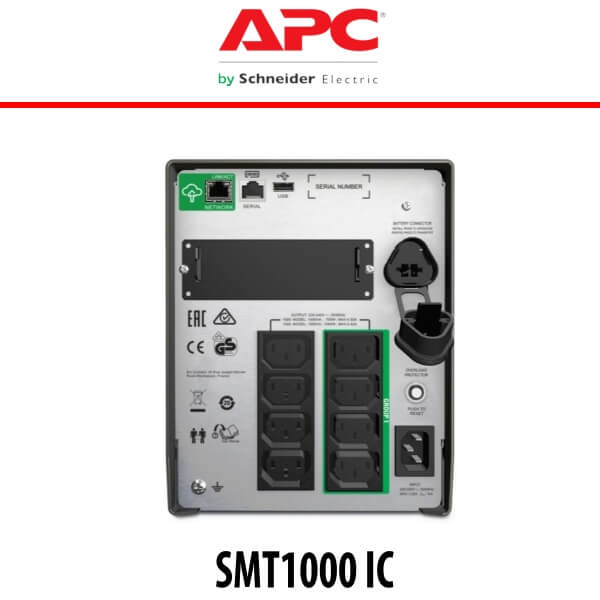

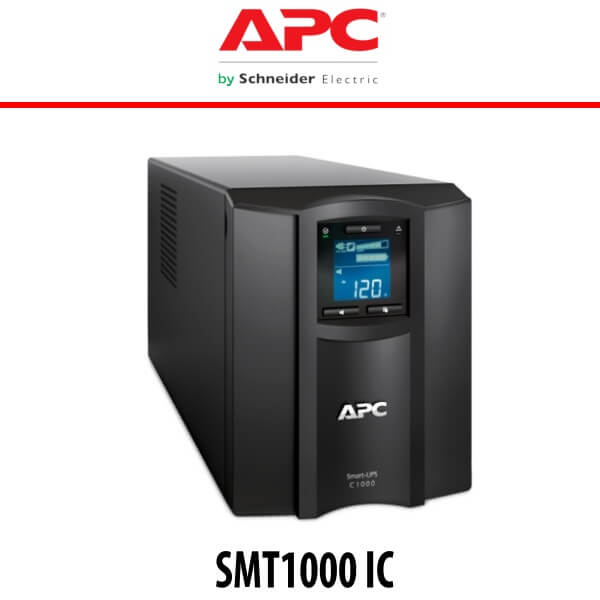

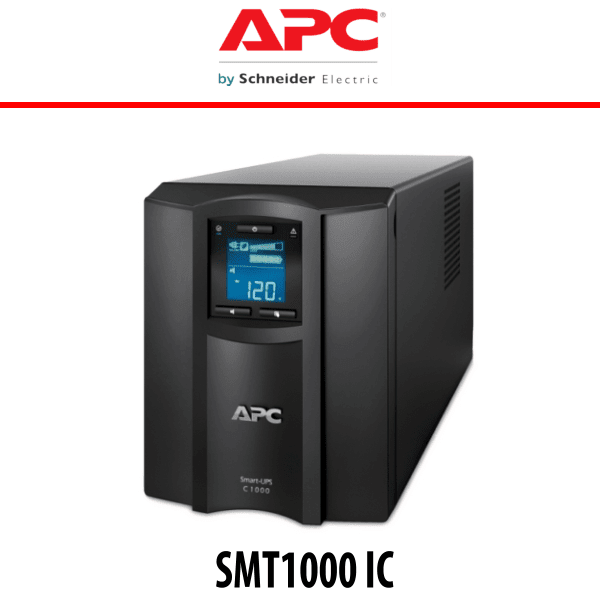

APC SMT1000 IC Smart UPS Kuwait

The APC SMT1000 IC Kuwait is an intelligent UPS that offers efficient network power protection from entry level to scalable runtime. It is highly suitable for use with switches, routers, point-of-sale, hubs, and many others and is applicable in businesses and retail shops. The smart UPS comes integrated with cloud-based remote power monitoring that offers reliable UPS firmware upgrades from time to time. APC SMT1000 IC Kuwait is capable of cold-starting so as to provide temporary battery power when the utility power is out. Integrated Green mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection, while LCD Status Display provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs. APC SMT1000 IC Kuwait boasts of a SmartConnect, an easy-to-use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services. What’s more, the Smart UPS has a temperature-compensated battery charging system that prolongs battery life by regulating the charge voltage according to battery temperature.

Smart-UPS Features :

Serviceability

Predictive failure notification.

Provides early-warning fault analysis ensuring proactive component replacement.

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Resettable circuit breakers

Enables a quick recovery from overload events.

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Manageability

Serial connectivity

Provides management of the UPS via a serial port.

USB connectivity

Provides management of the UPS via a USB port (not available on all models).

LED status indicators

Quickly understand unit and power status with visual indicators.

Network manageable

Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.

Audible alarms

Provides notification of changing utility power and UPS conditions.

Adaptability

Adjustable voltage sensitivity

Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Adjustable voltage-transfer points

Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Marketing features

Avoids costly power problems by keeping your IT equipment and data safe and available

Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems

Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management

Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.

Smarter productivity with ability to tailor to your specific application needs

Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.

Peace of mind that comes with full equipment compatibility and reliability of a leader

Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.

Save time with easy and convenient remote accessibility

Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.

Availability

Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.

Boost and Trim Automatic Voltage Regulation (AVR)

Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

Disconnected battery notification

Warns when a battery is not available to provide backup power.

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Safety

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Technical Specs :

Output

Max Configurable Power (Watts)

600 Watts / 1.0kVA

Output Voltage Distortion

Less than 5 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220 V, 240 V

Topology

Line interactive

Waveform type

Sine wave

Transfer Time

6 ms typical : 10 ms maximum

Input

Input frequency

50/60 Hz +/- 3 Hz Auto-sensing

Input voltage range for main operations

170 – 300 Adjustable, 180 – 287V

Other Input Voltages

220 V, 240 V

Batteries & Runtime

Battery type

Lead-acid battery

Typical recharge time

3hour(s)

Expected Battery Life (years)

3 – 5

RBC Quantity

1

Battery Charge Power (Watts)

72 Watts

Communications & Management

Interface Port(s)

RJ-45 Serial, USB

Control panel

Multifunction LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Surge Protection and Filtering

Surge energy rating

455Joules

Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height

219MM, 21.9CM

Maximum Width

171MM, 17.1CM

Maximum Depth

439MM, 43.9CM

Net Weight

17.27KG

Shipping weight

19.55KG

Shipping Height

376MM, 37.6CM

Shipping Width

328MM, 32.8CM

Shipping Depth

595MM, 59.5CM

Color

Black

Master Carton Units

1.0

Units per Pallet

18.0

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 %

Operating Elevation

0 – 3048meters

Storage Temperature

-15 – 45 °C

Storage Relative Humidity

0 – 95 %

Storage Elevation

0 – 15240meters

Audible noise at 1 meter from surface of unit

41.0dBA

Online thermal dissipation

100.0BTU/hr

Conformance

Approvals

CE, GOST, UL 1778, VDE

Standard warranty

2 years repair or replace

Sustainable Offer Status

RoHS

Compliant
