Dinstar UC2000-VF16TB Kuwait

The Dinstar UC2000-VF16TB Kuwait is designed to handle up to 16 simultaneous calls, making it an ideal choice for users seeking efficient communication solutions.

Add to quote

Description

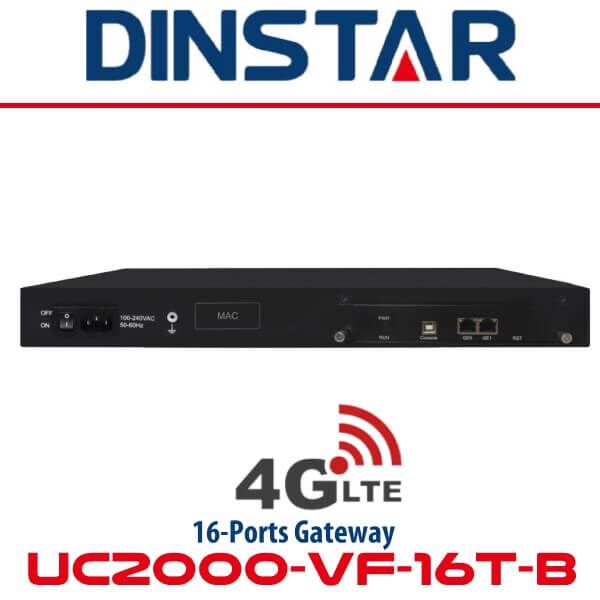

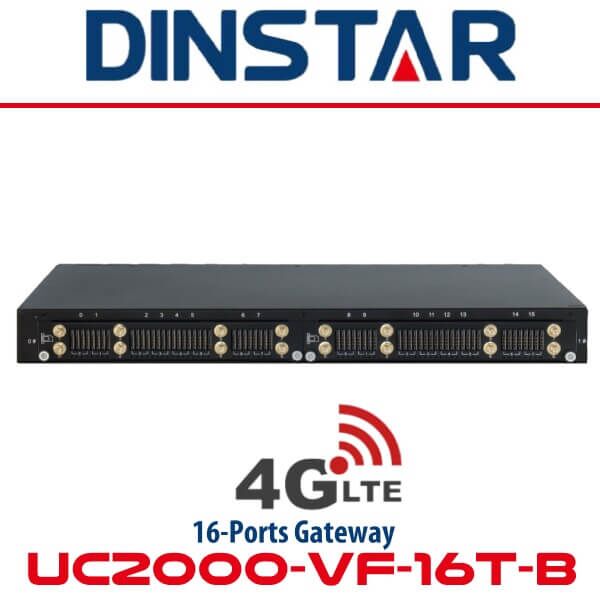

Dinstar UC2000-VF16TB 4G Gateway Kuwait

The Dinstar UC2000-VF16TB Kuwait is designed to handle up to 16 simultaneous calls, making it an ideal choice for users seeking efficient communication solutions. This wireless gateway is built on DINSTAR’s latest hardware platform and a robust embedded CPU, utilizing advanced VoIP/SIP technology to ensure smooth transitions between 4G/3G/2G mobile networks and VoIP networks. Moreover, Dinstar UC2000-VF16TB Kuwait comes equipped with an open API, empowering users to create their own application software for tasks like sending SMS/USSD messages, bulk SMS messages, or pushing text messages from sources like email and HTTP.

Tailored for enterprises, multi-site organizations, call centers, and regions with limited landline availability (such as rural areas), the Dinstar UC2000-VF16TB Kuwait device aims to reduce telephony costs while facilitating convenient and effective communication. This model is just one among Dinstar’s diverse range of 4G gateways available in Kuwait.

Key Features :

Up to 16 Channels GSM or LTE
Powerful Embedded CPU
Compatible with LTE-FDD/LTE-TDD/WCDMA/GSM Networks
Compatible with Mainstream VoIP Platform
Hot Swappable SIM Cards
Voice over LTE (VoLTE)
HTTP API for SMS Application Integration
SMS to Email & Email to SMS
Flexible Dial Rules & Manipulation Rules
Auto CLIP
Remote SIMs Management (optional)

Technical Specifications

Hardware Interfaces

Mobile : 16 Channels
SIM Card slots : 16
Antennas Connectors : SMA
Ethernet Interfaces : 2*10/100/1000 Base-T, RJ45
LED Indicators : Power, RUN, Channel indicator
Console : 1* RS232 (USB-B connector)
RST/PWR Button

VoIP & Media

Protocol : SIP v2.0, RFC3261
SIP UDP/TCP/TLS
RTP/SRTP
Codecs : G.711A/U, G.723.1, G.729A/B, G.722, AMR, OPUS(TBD)
Silence Suppression
Comfort Noise Generator(CNG)
Voice Activity Detection(VAD)
Echo Cancellation
Dynamic Jitter Buffer
DTMF : RFC2833, SIP Info
Call Progress Tone Generation
Programmable Gain Control
NAT : STUN, Dynamic NAT, Static NAT

Frequency Bands(2G/3G)

UC2000-VF-16G : GSM Gateway : 850/900/1800/1900MHz
UC2000-VF-16W : WCDMA Gateway with two options
A : WCDMA 850/1900MHz and GSM 850/900/1800/1900MHz;
B : WCDMA 900/2100MHz and GSM 900/1800MHz

LTE Frequency Bands

Type A : – FDD : B2/B4/B12- WCDMA : B2/B4/B5
Type E : – FDD : B1/B3/B5/B7/B8/B20- TDD : B38/B40/B41- WCDMA : B1/B5/B8
- GSM : 900/1800MHz
Type V : FDD : B4/B13
Type J : – FDD : B1/B3/B8/B18/B19/B26- TDD : B41- WCDMA : B1/B6/B8/B19
Type AU : – FDD : B1/B2/B3/B4/B5/B7/B8/B28- TDD : B40- WCDMA : B1/B2/B5/B8
- GSM : 850/900/1800/1900

Software Features
