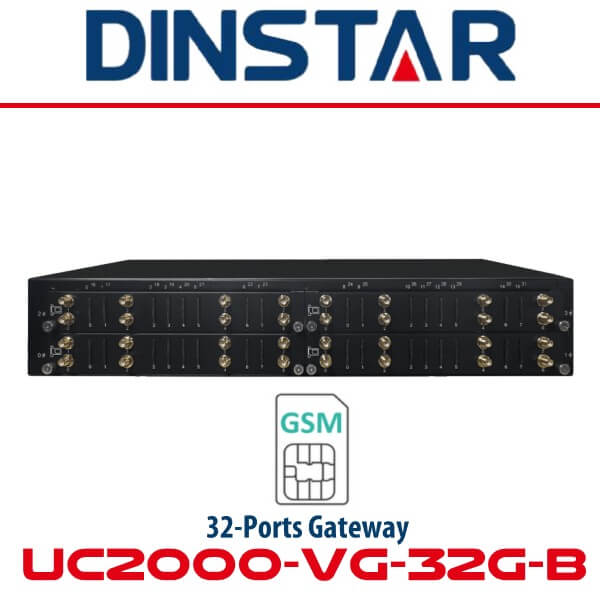

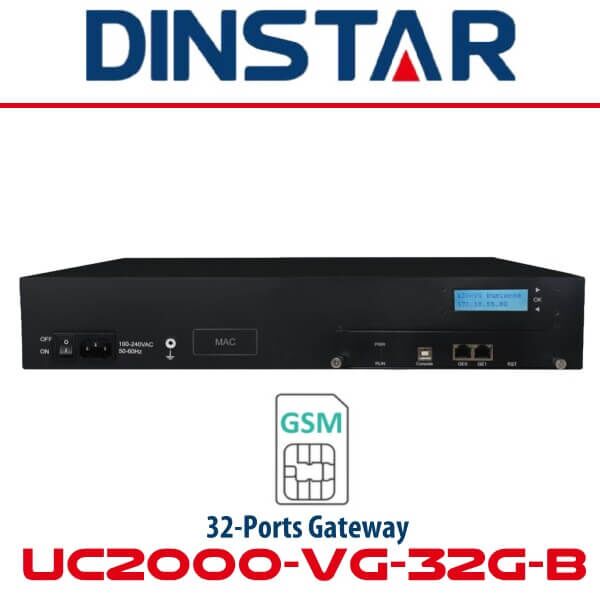

Dinstar UC2000-VG32GB GSM Gateway Kuwait

The Dinstar UC2000-VG32GB Kuwait boasts an intuitive Web interface, providing users with a seamless and user-friendly experience. With Dinstar SIMBank and SIMCloud, the management of SIM cards becomes effortlessly accessible from remote locations. This GSM Gateway serves as a standalone device, catering to call terminators, multi-site organizations, enterprises, and areas with limited landline infrastructure, such as rural areas. The primary function of Dinstar UC2000-VG32GB Kuwait is to establish connections between mobile and VoIP networks, facilitating the transmission of both voice and SMS.

Equipped with integrated GSM/WCDMA/LTE connectivity and SIP protocol compatibility with mainstream VoIP platforms, the Dinstar UC2000-VG32GB Kuwait model empowers users to reduce telephony costs and streamline communication processes. This model stands out among the various Dinstar GSM gateway models available in Kuwait.

Key Features :

• 32 GSM/CDMA/WCDMA Channels
• Support to different mobile networks :
• GSM : 850/900/1800/1900MHz;
• CDMA : 800MHz; WCDMA : 850/900/1900/2100MHz
• HTTP API for SMS Application Integration
• SMS to Email and Email to SMS
• Flexible Dial Rules and Manipulation Rules

Technical Specifications

Voice Processing

• Protocol : SIP v2.0, RFC3261
• Codecs : G.711A/U law, G.723.1, G.729A/B
• Silence Suppression
• Comfort Noise Generator(CNG)
• Voice Activity Detection(VAD)
• Echo Cancellation : G.168 with up to 128ms
• Dynamic Jitter Buffer
• DTMF : RFC2833, SIP Info
• Call Progress Tone Generation
• Programmable Gain Control
• NAT : STUN, Dynamic NAT, Static NAT

Mobile

• SIM Interface : 1.8v, 3.0v SIM Interface
• Frequency Range :
  • GSM : 850/900/1800/1900MHz;
  • CDMA : 800MHz
• WCDMA : 850/900/1900/2100MHz
• USSD Encoding : Unicode/ASCII
• HTTP API for SMS
• Polarity Reversal
• PIN Modify
• CID/CLIR
• SMS Send and Receive
• SMS to Email
• Call Waiting/Call Back
• Call Forward
• GSM Audio Coding : HR, FR,EFR, AMR_FR,AMR_HR

Software Features

• Calling Type :
  • Mobile to VoIP, VoIP to Mobile
• SIP Trunk and Trunk Group
• Caller/Called Number Manipulation Rules
• SIP Codes Mapping
• White/Black List
• PSTN Hotline
• VoIP Hotline
• Abnormal Call Monitor
• Call Minutes Limitation for Ports/Single Call
• Balance Check
• Low Balance Alarm
• Auto Update SIM Number
• Random Call Interval
• Auto CLIP
• Signaling & RTP Encryption
• SMPP for SMS

Network

• Static IP, DHCP Client, PPPoE
• Network Protocols :
• TCP/UDP,TFTP, FTP, RTP/ RTCP, SSH,ARP,RARP,ICMP Ping, NTP, HTTP, DNS
• Static/Dynamic ARP Request

Maintenance

• Web/Telnet Configuration
• Configure Backup/Restore
• Firmware Upgrade by HTTP/TFTP
• Factory Reset
• CDR (10000 Lines CDRs Storage Locally)
• Syslog/Filelog
• Ping and Tracert
• Traffic statistics : TCP,UDP,RTP
• VoIP Call Statistics
• PSTN Call statistics : ASR,ACD,PDD
• Voice Diagnose with Loopback
• GSM Network Test
• IVR Customization
• Auto Provisioning
• SIP/RTP/PCM Capture

Physical Interface

• Mobile : 32 Channels
• Antennas Connectors : SMA
• Ethernet Interfaces : 2*10/100 Base-T, RJ45
• LED Indicators : Power, RUN, Signal Strength Indicators
• Console : 1* RS232 115200bps

Environmental

• Power Supply
  • Input : 100-240V,50-60Hz
• Power Consumption : 68w
• Temperature(Operation) : 0 ℃ ~ 45 ℃ (Storage) : -20 ℃ ~80 ℃
• Operation Humidity : 10%-90% No Condensation
• Dimension(W/D/H) : 440×270×75mm
• Weight : 4.7kg
• Package Weight : 8.2kg
