Description

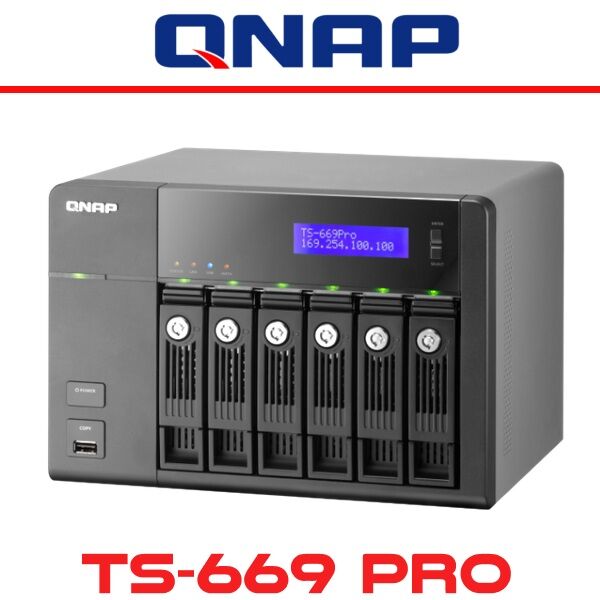

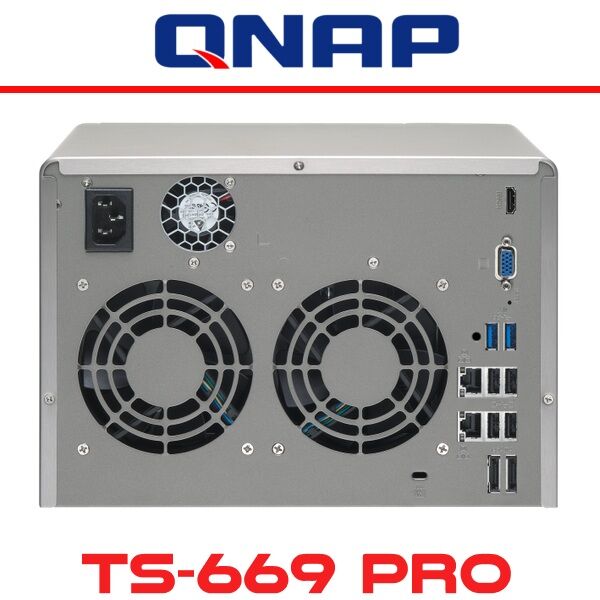

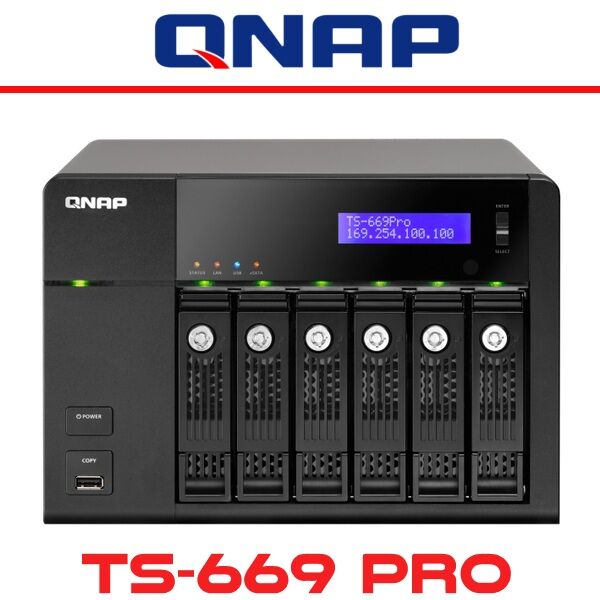

Qnap TS669 Pro Kuwait
The Qnap TS669 Kuwait Pro Turbo NAS Server for SMBs from QNAP is an all-in-one NAS server with exceptional performance that can meet the storage requirements of modern SMB IT environments. It features a secure cross-platform file sharing for Windows, Mac and Linux/UNIX users. The NAS server also has an iSCSI or IP-SAN storage combo solution and a number of versatile, value-added business applications. It has a well-rounded set of backup solutions, which helps critical business information to be safely protected against unexpected data loss. The Qnap TS-669 Kuwait Pro is an ideal shared storage solution for virtualized and clustered environments. It is VMware and Citrix Ready. It also has proven compatibility with Microsoft Hyper-V environments. Qnap TS-669 Kuwait Pro
Features:
Cross-platform Sharing with Antivirus
The Qnap TS-669 Pro Kuwait supports SMB/CIFS, NFS and AFP protocols for file sharing across Windows, Mac, Linux/UNIX networks. Your accounts and shared folders can be created via a user-friendly web based interface without IT expertise. The integrated antivirus solution for the Turbo NAS ensures business stability. It offers detection against the latest viruses, malware, worms and Trojan horses.
Windows Active Directory (AD) and LDAP Directory Service
The Windows AD and Lightweight Directory Access Protocol (LDAP) is a directory service feature that enables you to retrieve user accounts from Windows AD or LDAP based directory server to the Qnap TS-669 Pro Kuwait. This reduces time and effort in setting up a new account. You can use the same login name and password to access the Turbo NAS.
Shared Folder Aggregation
You can access the shared folders of other servers on Microsoft Networking through the “portal folder” on the Qnap TS-669 Pro Kuwait. This saves the time and effort in logging in multiple servers one by one.
ISO File Archiving and Sharing
With the Qnap TS-669 Pro Kuwait you can mount ISO images of CD and DVD discs as network shares for data archiving, storage and sharing. This saves the space for storing the physical discs and reduces the risk of data loss caused by disc wear and tear. It also enhances the efficiency of data sharing on business network.
Advanced Folder Permissions
You can configure folder/subfolder access to the Qnap TS-669 Pro Kuwait with advanced folder permissions. With this feature enabled, you can manage the folder permissions from Microsoft Windows or the web-based management interface of the Turbo NAS easily.
Secure Measures for Data Storage and Access
Policy based Unauthorized IP Blocking:
You can allow, deny or auto block specified IP address or network domain which attempt to connect to the Turbo NAS via SSH, Telnet, HTTP(S), FTP, Samba or AFP.
You can allow, deny or auto block specified IP address or network domain which attempt to connect to the Turbo NAS via SSH, Telnet, HTTP(S), FTP, Samba or AFP.
QNAP TS-669 Pro Specs
| Hardware | |
| CPU | Intel Atom 2.13 GHz Dual-Core Processor |
| DRAM | 1 GB RAM (expandable RAM, up to 3 GB) |
| Flash Memory | 512 MB DOM |
| Hard Drive | 6x 3.5″ (88.89 mm) SATA 6 GBps, SATA 3 GBps hard drive or 2.5″ (63.49 mm) SATA, SSD hard drive* |
| Hard Disk Tray | 6x hot-swappable and lockable tray |
| LAN Port | 2x Gigabit RJ-45 Ethernet ports |
| LED Indicators | Status, LAN, USB, eSATA, Power, HDD 1, HDD 2, HDD 3, HDD 4, HDD 5, HDD 6 |
| USB | 2x USB 3.0 ports (back: 2) 5x USB 2.0 ports (front: 1 ; back: 4) Supports USB printer, pen drive, USB hub, USB UPS and more |
| eSATA | 2x eSATA ports (back) |
| Performance | Reading: 221.8 MBps Writing: 220.8 MBps |
| Buttons | System: Power button, USB one-touch backup button, reset button |
| LCD Panel | Mono-LCD display with backlight Enter and select buttons for configuration |
| Supply Type | System warning |
| Form Factor | Tower |
| Sound Level | Without HDD installed: 35.7 dB Stand by: 35.2 dB In operation: 40.8 dB (with 6x 500GB HDD installed) |
| Power Consumption | Sleep mode: 31.5 W In operation: 63.6 W Power-off (in WOL mode): 1 W (with 6x 500GB HDD installed) |
| Power Supply | Input: 100 – 240 V AC, 50 – 60 Hz Output: 250 W |
| Secure Design | K-lock security slot for theft prevention |
| VGA | Reserved VGA interface for maintenance |
| Fan | 2x 3.54″ (9 cm), 12 V DC quiet cooling fan |
| Software | |
| Operating System | Embedded Linux |
| Supported Operating System | Windows XP, Vista, Windows 7 (32/64-bit), Windows Server 2003/2008 R2 Apple Mac OS X Linux and UNIX |
| Supported Web Browsers | Microsoft Internet Explorer 8, 9 Mozilla Firefox 8, 9, 10 Apple Safari 4, 5 Google Chrome |
| Language Support | Chinese (Traditional and Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish |
| File System | Internal Hard Drive: EXT3, EXT4 External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+ |
| Networking | TCP/IP (IPv4 and IPv6: Dual stack) Multiple Gigabit NICs with jumbo frame -Failover -Multi-IP settings -Port trunking/NIC teaming (Modes: Balance-rr, Active Backup, Balance XOR, Broadcast, IEEE 802.3ad/Link Aggregation, Balance-tlb and Balance-alb) Service binding based on network interfaces Virtual LAN (VLAN) DHCP client, DHCP server Protocols: CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP and SMSC UPnP andbonjour discovery USB Wi-Fi adapter support |
| Backup Solution | Real-Time Remote Replication (RTRR) -Works as both RTRR server and client with bandwidth control -Real-time and scheduled backup -Encryption, compression, file filter and transfer rate limitation Block-Level Remote Replication -Works as both Rsync Server and client with bandwidth control -Encrypted replication between QNAP NAS servers One touch backup (import/export) via USB Desktop backup by QNAP NetBak replicator for Windows Apple Time Machine support with backup management Data backup to multiple external storage devices Data backup to Cloud Storage (Amazon S3, ElephantDrive and Symform) |
| Security | IP Filter and policy-based automatic IP blocking Network access protection with auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP Encrypted Access: HTTPS, FTP with SSL/TLS (Explicit), SSH/SFTP (admin only), encrypted remote replication between QNAP NAS servers (Rsync over SSH) CIFS host access control for shared folders Antivirus protection FIPS 140-2 validated AES 256-bit volume-based data encryption* AES 256-bit external drive encryption* Importable SSL certificate Instant alert via Email, SMS, Instant Messaging (Windows Live), Beep and LCD panel |
| Disk Management | Single Disk, JBOD, RAID 0, 1, 5, 5+Hot-Spare, 6, 6+Hot-Spare, 10, 10+Hot-Spare Online RAID capacity expansion and online raid level migration Bad block scan and hard drive S.M.A.R.T. Global hot-spare drive RAID recovery Bitmap support |
| iSCSI (IP SAN) | iSCSI target -Multi-LUNs per target -Up to 256 targets/LUNs combined -Supports LUN mapping and masking -Online LUN capacity expansion -Supports SPC-3 persistent reservation -Supports MPIO and MC/S iSCSI LUN backup, one-time snapshot and restore iSCSI connection and management by QNAP finder (Windows) Virtual disk drive (via iSCSI initiator) -Stack chaining master -Max. no. of virtual disk drives: 8 |
| Server Virtualization and Clustering | Supports VMware vSphere Supports Citrix XenServer Supports Windows Server 2008 R2 Hyper-V and failover clustering |
| Power Management | Wake on LAN Internal hard drive standby mode Scheduled power on/off (max. 15 Settings) Automatic power on after power recovery USB and network UPS support with SNMP management |
| Access Rights Management | Max. No. of Users: 4,096 Max. No. of User Groups: 512 Max. No. of Network Shares: 512 Batch users creation Import/export users User quota management Subfolder permissions support for CIFS/SMB, AFP, FTP and web file manager |
| Domain Authentication Integration | Microsoft Active Directory (AD) LDAP server LDAP client Domain users login via CIFS/SMB, AFP, FTP and web file manager |
| MyCloudNAS Service | Private Cloud Storage and sharing Free host name registration (DDNS) Auto router configuration (via UPnP) MyCloudNAS connect for easy connection (Windows utility) |
| Storage Plug & Play | Windows Software: QNAP finder Create and map shared folders Create and connect to iSCSI target/LUN |
| Web Administration | AJAX-based user interface Smart fan control Dynamic DNS (DDNS) SNMP (v2 and v3) Resource monitor Network recycle bin for file deletion via CIFS/SMB and AFP Comprehensive logs (Events and connection) Syslog client Firmware live update System settings backup and restore Restore to factory default |
| Powerful All-in-one server | |
| File Server | File sharing across Windows, Mac and Linux or UNIX Shared folder aggregation (CIFS/SMB) Web file manager -Supports ISO mounting -Direct file viewing via Google doc -Create and send download links for public file sharing with expiration time and password protection |
| FTP Server | FTP over SSL/TLS (explicit) Max. No. of Concurrent Connections: 256 FXP supported Passive FTP port range control FTP bandwidth and connection control Unicode support |
| Backup Server | Remote Replication server (over Rsync) Real-Time Remote Replication to another QNAP NAS or FTP server Apple Time Machine support Windows Client Backup Application: QNAP NetBak replicator Third Party Backup Software Support: Acronis True Image, CA BrightStor, ARCserve, Backup, EMC Retrospect, Symantec Backup Exec, LaCie SilverKeeper and more |
| Web Server | HTTP/HTTPS connections Supports WebDAV connection Support virtual host (Max.: 32) Importable SSL certificate |
| Database Server | Built-in MySQL server (v5.1.36) Web-based management via phpMyAdmin (QPKG) |
| Print Server | Max. Number of Printers: 3 Supports Internet printing protocol -Print job display and management -IP- and domain name based privilege control Supports Apple bonjour printing |
| Syslog Server | Centralized log monitoring and archiving Immediate email alerts Supports log filtering |
| RADIUS Server | Centralized account management and authentication for network access Supports 802.1x security authentication TFTP server with PXE booting (read-only) |
| VPN Server | Secure Remote Access: PPTP and OpenVPN services Remote access to other resources on local network Max. no. of Clients: 30 |
| iTunes Server | Audio and video sharing (AIF, M4A, M4B, M4V, MOV, MP1, MP2, MP3, MP4, MPEG, MPG, WAV) Smart playlist for iTunes client (Windows and Mac OS) |
| UPnP Media Server | Built-in TwonkyMedia server Real-time and background photo transcoding Supports UPnP media player such as PlayStation 3 and Xbox 360 Supported format (The actual playback capabilities may vary depending on the UPnP client.) -Audio: MP3, MP4, M4A, M4A (ALAC), M4B, 3GP, APL, AC3, M1V, M4V, MOV, AAC, AMR, AWB, WAV, PCM, LPCM, MP1, MP2, AIF, AIFF, AIFC, SND, WMA, OGG, FLAC -Photo: JPG, JPE, JPEG, TIFF, TIF, GIF, PNG, BMP -Video: WMV, ASF, VDR, AVI, XVID, DIVX, FLV, MPG, MPE, MTS, M2TS, M2T, MPEG, SPTS, M2P, M2V, MP2T, MP2P, MPG2, DVR-MS, VOB -Playlist: M3U, M3U8, WPL, PLS |
| Multimedia Station | Supports photo, audio and video Image slideshow and rotation Automatic and scheduled thumbnail generation for easy browsing Display Photo Details from EXIF: Date, exposure time, aperture and more Display Audio Details from ID3 Tag: Album cover, title, artist, album and more Access authority management Multimedia (video and audio) streaming Supports cooliris Supports web publishing (Facebook, MySpace, MSN Live, Twitter, Plurk and Blogger) Share photos by email Supported Formats: Photo – JPG/JPEG, GIF, PNG Audio – MP3 Video -Playback: FLV, MPEG-4 Video (H.264 + AAC) -Transcode: AVI, M4V, MPG/MPEG, RM/RMVB, WMV QNAP Exclusive iPhone and Android App: QMobile |
| Photo Station | Supported File Formats: -Photo: JPG/JPEG, GIF, PNG, BMP -Video: FLV, MPEG-4 Video (H.264 + AAC) Image slideshow with background music Photo publishing to social websites (Facebook, MySpace, Twitter, Plurk and Blogger) Photo sharing by email |
| Music Station | Supported Audio Formats: -MP3, MP4, OGG, WAV, AIFF, AU, FLAC, M4A, APE, AAC Local playback with USB speaker or sound card Browse other UPnP media servers on local network Internet radio (MP3) Music alarm (up to 8 Alarms) Playback control by QNAP Mobile App: QMobile music remote |
| Download Station | PC-less BT, FTP, HTTP download (up to 500 tasks) BT Download -Supports TCP/UDP tracker protocol -Scheduled download -Configurable port range -Bandwidth control -UPnP NAT port forwarding -RSS subscription and download (broadcatching) -Selectable download files HTTP/ FTP Download -Configurable saving directory -Bulk download with wildcard settings -RapidShare download support QNAP Download Management Software: QGet -For both Windows and Mac OS -Manage the download tasks of multiple QNAP NAS remotely over LAN or WAN |
| Surveillance Station | Supports 1 – 20 IP* cameras (sold separately) for network surveillance Supports 1 Webcam via QPKG Add-on: QUSB Cam |
| Antivirus | Protection against the latest known viruses, trojans and other threats Free virus databases update on manual or scheduled basis Multiple scan tasks (max: 64, concurrent: 5) with custom folder selection and scheduled Scanning Email notification upon task completion or virus detection Quarantines or deletes infected files |
| QPKG Center | Expands application services by easy online installation A wide variety of official and community QPKG* add-ons Business -eyeOS -GLPI -Squid proxy server -Vtiger CRM CMS -Gallery -Joomla -WordPress -Xoops Communications -Asterisk -XMail -Xeams Download -MLDonkey -NZBGet -pyLoad -SABnzbdplus -Transmission Entertainment -Ice Station -Plex media server -PS3 media server -Squeezebox server Utilities -AjaXplorer -iStat -Optware IPKG -phpMyAdmin -Piwik Miscellaneous -Java runtime environment -Mono -Python -QUSB Cam -Tomcat and more |
| General | |
| Temperature | 32 to 104°F (0 to 40°C) |
| Humidity | 0 to 95% R.H. |
| Dimensions | 6.89 x 10.12 x 9.25″ (175 x 257.04 x 234.94 mm) |
| Weight | 11.46 lb (5.2 kg) |
Packaging Info
| Box Dimensions (LxWxH) | 15.2 x 13.6 x 9.9″ |
