Description

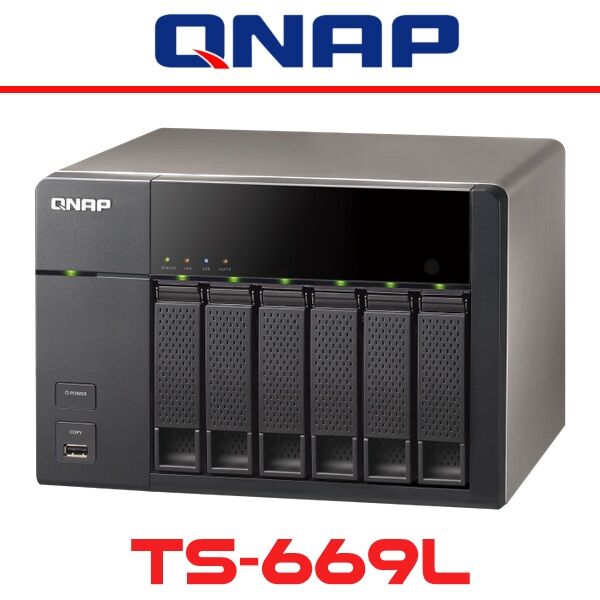

Qnap TS669L Kuwait
The Qnap TS669L Kuwait Turbo NAS Server for SMBs is a 6-bay, all-in-one NAS server with exceptional performance that can meet the storage requirements of modern SMB IT environments. It includes secure cross-platform file sharing for Windows, Mac and Linux/UNIX users, an iSCSI / IP-SAN storage combo solution and a number of value-added business applications. Critical business information can be safely protected against unexpected data loss with a set of integrated backup solutions. It is also an ideal shared storage solution for virtualized and clustered environments with VMware Ready and Citrix Ready certification, and proven compatibility in Microsoft Hyper-V environments.
The intuitive MyCloudNAS service simplifies the process of publishing content present on the Qnap TS-669L Kuwait over the Internet and helps you create a private cloud in just a few simple steps. The Mobile apps, including Qfile, Qmanager and Qmobile, provide iOS or Android users a convenient way to access and monitor the Turbo NAS live and on the go.
Features:
- Cross-Platform Sharing with Antivirus
- The Turbo NAS supports SMB/CIFS, NFS and AFP protocols for file sharing across Windows, Mac, Linux/UNIX networks. Your accounts and shared folders can be created via a user-friendly web based interface without IT expertise. The integrated antivirus solution for the Turbo NAS ensures business stability. It offers detection against the latest viruses, malware, worms and Trojan horses.
- Windows Active Directory (AD) and LDAP Directory Service
- The Windows AD and Lightweight Directory Access Protocol (LDAP) is a directory service feature that enables you to retrieve user accounts from Windows AD or LDAP based directory server to the Turbo NAS. This reduces time and effort in setting up a new account. You can use the same login name and password to access the Turbo NAS.
- Shared Folder Aggregation
- As an added convenience, you can connect to the shared folders of other servers on Microsoft Networking via the portal folder on the NAS. This minimizes the hassle of logging in to various servers one by one.
- ISO File Archiving and Sharing
- The NAS supports the mounting of ISO images of CD or DVD discs for network sharing folders for data archiving, storage and sharing. This feature conserves much more space than storing the physical discs. It lowers the risk of data loss due to long-term use of the discs and improves the performance of data sharing on a business network.
- Advanced Folder Permissions
- You can configure folder/subfolder access to the Turbo NAS with this feature. It enables you to manage the folder permissions from Microsoft Windows or the web-based management interface of the Turbo NAS easily.
- Policy-Based Unauthorized IP Blocking
- You can allow, deny or auto block specified IP addresses or network domains, which attempt to connect to the Turbo NAS, via SSH, Telnet, HTTP(S), FTP, Samba or AFP.
- Remote Login
- The Qnap TS-669L Kuwait supports remote login via SSH (secure shell) or Telnet connection.
- SSL Security (HTTPS)
- Qnap TS-669L Kuwait supports HTTPS connection. You can upload a secure certificate and RSA private key in X.509PEM format issued by a trusted provider to allow access to the NAS server via secure SSL login.
- Secure FTP
- The Qnap TS-669L Kuwait offers secure data transfer with SSL/TLS (explicit) encryption. It also supports Passive FTP port range setup.
- Encrypted Remote Replication by Rsync
- The data on the Qnap TS-669L Kuwait can be backed up to or from another Turbo NAS or Rsync server over the network securely.
- Shared Folder Management
- You can choose to hide or show selected shared folders of the Turbo NAS on your Windows network.
- User Authority Management
- You can create multiple users and specify their password, quota and user groups by simply uploading the batch files in TXT or Excel CSV format to the NAS. Export and import of users list are also supported.
- Well-Rounded Backup Solutions
- The Qnap TS-669L Kuwait offers you flexible server backup solutions like encrypted remote replication, Real-time Remote Replication (RTRR) and cloud-based storage backup. Windows and Mac users can use QNAP NetBak Replicator utility and Time Machine respectively to back up data to the Turbo NAS. Additionally, the Turbo NAS supports third party backup software such as Veeam Backup and Replication and Acronis True Image.
- Disaster Recovery Solution
- The Turbo NAS offers business continuity and high availability of data by being able to recover data from disasters.
- Real-Time Remote Replication (RTRR)
- RTRR provides real-time or scheduled data replication between the Turbo NAS and a remote QNAP NAS, an FTP server or an external drive.
QNAP TS-669L Specs
| Hardware | |
| CPU | Intel Atom 2.13 GHz Dual-core processor |
| DRAM | 1 GB RAM |
| Flash Memory | 512 MB DOM |
| Hard Disk Drive | 6 x 3.5″ (88.9 mm) or 2.5″ (63.5 mm) SATA 3 Gb/s hard drive or SSD hard drive |
| Hard Disk Tray | 6x Hot-swappable and lockable tray |
| LAN Port | 2x Gigabit RJ-45 Ethernet ports |
| LED Indicators | Status, LAN, USB, eSATA, Power, HDD 1, HDD 2, HDD 3, HDD 4, HDD 5, HDD 6 |
| USB | 2x USB 3.0 port (Back: 2) 5x USB 2.0 port (Front: 1; Back: 4) Support USB printer, pen drive, USB hub, and USB UPS and more |
| eSATA | 2x eSATA ports (back) |
| Buttons | Power, USB One-Touch-Backup, Reset |
| LCD Panel | Mono-LCD display with backlight Enter, Select buttons for configuration |
| Alarm Buzzer | System warning |
| Form Factor | Tower |
| Sound Level | HDD Sleep: 18.3 dB In Operation: 25.5 dB (with 6 x 500GB HDDs installed) |
| Power Consumption | Sleep mode: 31.5 W In Operation: 63.6 W Power-off (in WOL mode): 1 W (with 6x 500 GB HDD installed) |
| Power Supply | Input: 100-240 VAC, 50/60 Hz, Output: 250 W |
| Secure Design | K-lock security slot for theft prevention |
| VGA | Reserved VGA interface for maintenance |
| Fan | 2x quiet cooling fan 3.54″ (9 cm), 12 VDC |
| Software | |
| Operating System | Embedded Linux |
| Supported Operating System | Windows XP, Vista, 7, 8 (32/64-bit), Windows Server 2003/2008 R2 Apple Mac OS X Linux & UNIX |
| Supported Web Browsers | Microsoft Internet Explorer 8, 9 Mozilla Firefox 8, 9, 10 Apple Safari 4, 5 Google Chrome |
| Language Support | Chinese (Traditional and Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish |
| File System | Internal Hard Drive: EXT3, EXT4 External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+ |
| Networking | TCP/IP (IPv4 and IPv6: Dual stack) Dual Gigabit NICs with jumbo frame -Failover -Multi-IP settings -Port trunking/NIC teaming (Modes: Balance-rr, Active Backup, Balance XOR, Broadcast, IEEE 802.3ad/Link Aggregation, Balance-tlb and Balance-alb) Service binding based on network interfaces Virtual LAN (VLAN) DHCP client, DHCP server Protocols: CIFS/SMB, AFP (v3.3), NFS (v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP and SMSC UPnP and Bonjour discovery USB Wi-Fi adapter support |
| Backup Solution | Real-time Remote Replication (RTRR) -Works as both RTRR Server & Client with bandwidth control -Real-time & Scheduled backup -Encryption, Compression, File filter, and Transfer rate limitation Block-level Remote Replication -Works as both Rsync Server & Client with bandwidth control -Encrypted replication between QNAP NAS servers USB one touch backup (Import/Export) Desktop backup by QNAP NetBak Replicator for Windows Apple Time Machine support with backup management Data backup to multiple external storage devices Data backup to cloud storage (Amazon S3, ElephantDrive, and Symform) |
| Security | IP Filter and Policy-based automatic IP blocking Network Access Protection with Auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP Encrypted Access: HTTPS, FTP with SSL/TLS (Explicit), SSH/SFTP (admin only), Encrypted remote replication between QNAP NAS servers (Rsync over SSH) CIFS Host Access Control for shared folders Antivirus protection FIPS 140-2 validated AES 256-bit volume-based data encryption AES 256-bit external drive encryption Importable SSL certificate Instant alert via E-mail, SMS, Instant messaging (Windows Live), Beep and LCD panel |
| Disk Management | Single Disk, JBOD, RAID 0, 1, 5, 5+hot spare, 6, 6+hot spare, 10, 10+hot spare Online RAID capacity expansion and online RAID level migration Bad block scan and hard drive S.M.A.R.T. RAID recovery Bitmap support |
| iSCSI (IP SAN) | iSCSI target Multi-LUNs per target Up to 256 targets/LUNs combined Supports LUN mapping & masking Online LUN capacity expansion Supports SPC-3 persistent reservation Supports MPIO & MC/S iSCSI LUN backup, one-time snapshot, and restore iSCSI connection and management by QNAP Finder (Windows) Virtual disk drive (via iSCSI Initiator) Stack chaining master Max no. of virtual disk drives: 8 |
| Server Virtualization and Clustering | Supports VMware vSphere Supports Citrix XenServer Supports Windows server 2008 R2 Hyper-V & Failover clustering |
| Power Management | Wake on LAN Internal hard drive standby mode Scheduled Power on/off (Max 15 settings) Automatic power on after power recovery USB and network UPS support with SNMP management |
| Access Rights Management | Max no. of users: 4,096 Max no. of user groups: 512 Max no. of network shares: 512 Batch Users creation Import/Export users User Quota management Subfolder permissions support for CIFS/SMB, AFP, FTP and Web File manager |
| Domain Authentication Integration | Microsoft Active Directory (AD) LDAP Server LDAP Client Domain users login via CIFS/SMB, AFP, FTP, and Web File Manager |
| MyCloudNAS Service | Private Cloud Storage and Sharing Free Host Name registration (DDNS) Auto Router configuration (via UPnP) MyCloudNAS Connect for easy VPN connection (Windows utility) |
| Storage Plug & Play | Windows Software: QNAP Finder Create and map shared folders Create and connect to iSCSI target/LUN |
| Web Administration | AJAX-based UI Smart fan control Dynamic DNS (DDNS) SNMP (v2 & v3) Resource monitor Network recycle bin for file deletion via CIFS/SMB and AFPComprehensive logs (events & connection) Syslog client Firmware Live update System settings backup and restore Restore to factory default |
| Powerful All-in-one server | |
| File Server | File sharing across Windows, Mac, and Linux/UNIX Windows ACL Advanced folder permission for SMB, AFP, FTP, Web File manager Shared Folder aggregation (CIFS/SMB) Web File manager -Supports ISO mounting -Direct file viewing via Google Doc -Create and send download links for public file sharing with expiration time and password protection |
| FTP Server | FTP over SSL/TLS (Explicit) Max no. of concurrent connections: 256 FXP supported Passive FTP port range control FTP bandwidth & connection control Unicode support |
