Dinstar UC2000-VE4TB Kuwait

Description

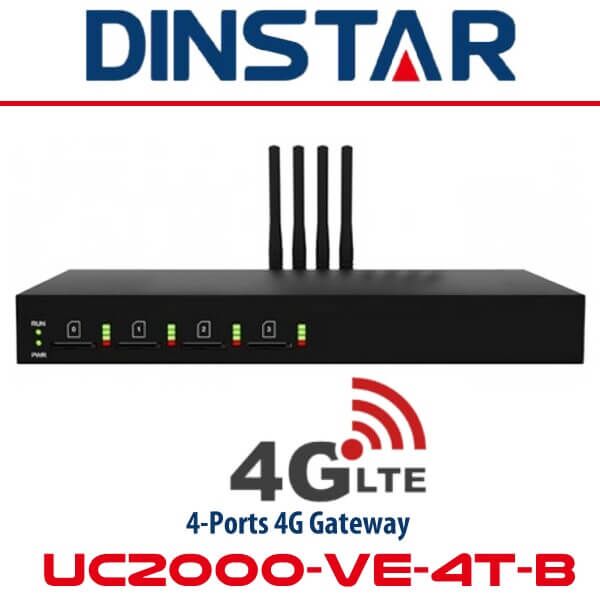

Dinstar UC2000-VE4TB 4G Gateway Kuwait

The Dinstar UC2000-VE4TB Kuwait facilitates easy call setup between 2G/3G/4G mobile and VoIP networks. This versatile gateway includes a modern pop-up SIM card slot for effortless SIM card changes, eliminating the need to dismantle the entire device. Its open API allows users to develop their own application software for sending SMS/USSD and bulk SMS messages, or pushing text messages from email, HTTP, etc. Capable of making incoming/outgoing calls through 4G network with VoLTE as well as GSM/WCDMA network, users can easily select network modes on demand. The Dinstar UC2000-VE4TB Kuwait delivers impressive performance, thanks to its advanced software features and new hardware design. This gateway offers a low-cost, convenient, and flexible IP telephony solution for enterprises, SMEs, and business offices. It is one of Dinstar’s models of 4G gateways in Kuwait.

Key Features :

4 Channels GSM or LTE
Powerful Embedded CPU
Compatible with LTE-FDD/LTE-TDD/WCDMA/GSM Networks
Compatible with Mainstream VoIP Platform
Hot Swappable SIM Cards
Voice over LTE (VoLTE)
HTTP API for SMS Application Integration
SMS to Email & Email to SMS
Flexible Dial Rules & Manipulation Rules
Auto CLIP
Remote SIMs Management (optional)

Technical Specifications

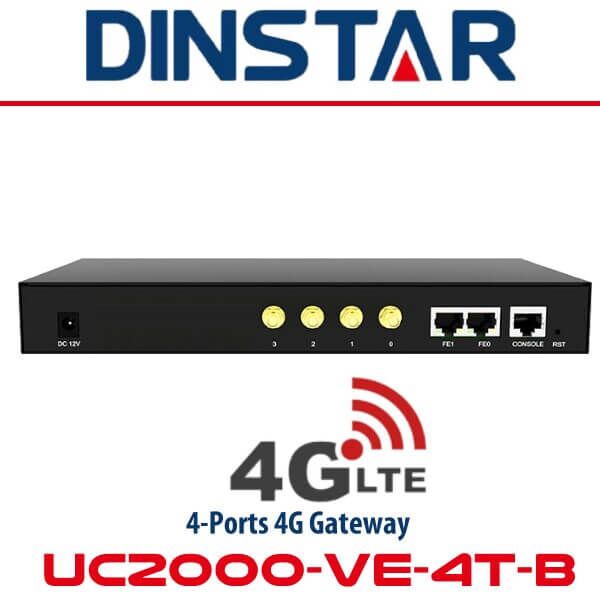

Hardware Interfaces

Mobile : 4 Channels
SIM Card slots : 4
Antennas Connectors : SMA
Ethernet Interfaces : 2*10/100/1000 Base-T, RJ45
LED Indicators : Power, RUN, Channel indicator
Console : 1* RS232 (USB-B connector)
RST/PWR Button

VoIP & Media

Protocol : SIP v2.0, RFC3261
SIP UDP/TCP/TLS
RTP/SRTP
Codecs : G.711A/U, G.723.1, G.729A/B, G.722, AMR, OPUS(TBD)
Silence Suppression
Comfort Noise Generator(CNG)
Voice Activity Detection(VAD)
Echo Cancellation
Dynamic Jitter Buffer
DTMF : RFC2833, SIP Info
Call Progress Tone Generation
Programmable Gain Control
NAT : STUN, Dynamic NAT, Static NAT

Frequency Bands(2G/3G)

UC2000-VE-4/8G : GSM Gateway : 850/900/1800/1900MHz
UC2000-VE-4/8W : WCDMA Gateway with two options
A : WCDMA 850/1900MHz and GSM 850/900/1800/1900MHz;
B : WCDMA 900/2100MHz and GSM 900/1800MHz

LTE Frequency Bands

Type A : – FDD : B2/B4/B12- WCDMA : B2/B4/B5
Type E : – FDD : B1/B3/B5/B7/B8/B20- TDD : B38/B40/B41- WCDMA : B1/B5/B8- GSM : 900/1800MHz
Type V : FDD : B4/B13
Type J : – FDD : B1/B3/B8/B18/B19/B26- TDD : B41- WCDMA : B1/B6/B8/B19
Type AU : – FDD : B1/B2/B3/B4/B5/B7/B8/B28- TDD : B40- WCDMA : B1/B2/B5/B8- GSM : 850/900/1800/1900
