Fanvil i33VF Kuwait

Fanvil i33VF Kuwait

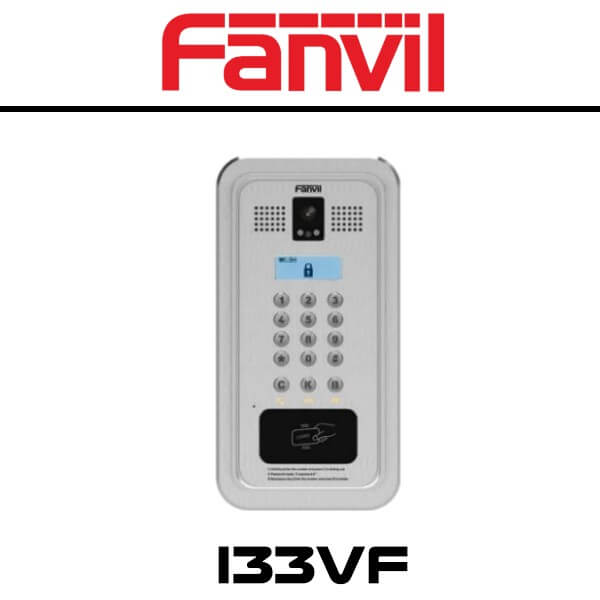

The Fanvil I33VF Kuwait is an all one one access control device that doubles as an intercom and broadcasting solution. The I33VF is designed for flush-mount installations. It features infrared night vision, supports 2 SIP lines, and allows for access control via call, code, or RFID/IC card and indoor switch.



Fanvil i33VF SIP Video Door Phone Kuwait

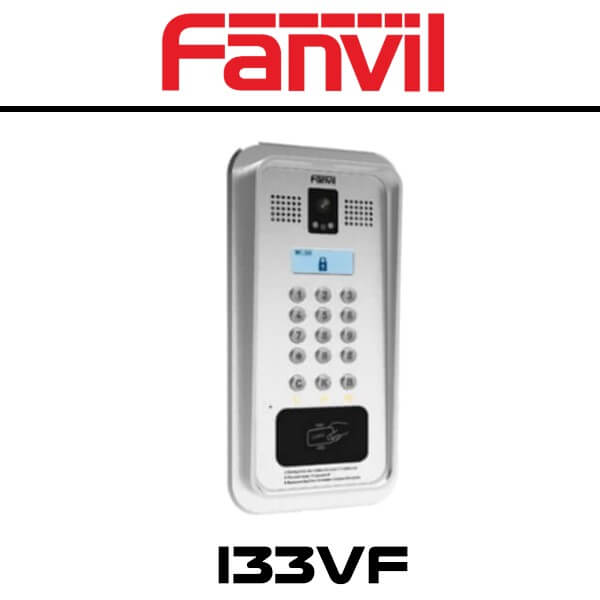

Fanvil i33V/i33VF Kuwait is a SIP Video Door Phone in Kuwait with LCD display developed for users in the security industry. It supports two types of installation including wall-mounting (i33V) and flush-mounting (i33VF). It is designed for an outdoor environment with high reliability, HD Audio/Video, IP65/IK10 protection grade, and boasts  of a wide operating temperature range of -20℃ to 50℃. It combines with the functions of access control, audio/video intercom, and broadcasting for the smoother, safer, clearer communication. The Fanvil i33VF enables a user to easily open the door with a local password, RFID/IC cards, and remote DTMF.

A 128X48 pixel lattice screen will simultaneously display the room number of a caller when the visitor calls using  Fanvil i33VF Kuwait. If the room number is wrong, simply press “B” to clear, re-enter the correct number and then press “C” to call the owner to open the door remotely. Users can use 12 standard number keys and 3 function keys(C : Call/ K : Password Mode/ B : Backspace) to dial or enter a password to open the door. With the HD camera with infrared night vision, i33V/i33VF can easily identify the visitors even at night. It also supports two video streams in which the main code stream works for high-quality video on monitoring and the sub-code stream for smooth SIP video calls.

Features :

Support External Door Magnetic Detector and Wiegand Card Reader :
Fanvil i33VF Kuwait can be connected to 2 door magnetic detectors which will make an alarm if the door hasn’t been closed after the timeout. It can also connect to a Wiegand card reader to control the door, which is used in the places with high security requirement.

Safety for Resident :
With the HD camera with infrared night vision, Fanvil i33VF Kuwait can easily identify the visitors even at night. Connecting with VMS video management system via ONVIF protocol, it can be used for 24H video monitoring of the entrance area.

HD Video & Two Video Streams :

A user can simply press the “Call” button to make a call with full duplex video. The Fanvil i33VF SIP Video Intercom provides you the infrared night vision using its built-in 720P HD camera which captures crystal clear images. It also supports two video streams in which the main code stream works for high-quality video on monitoring and the sub-code stream for smooth SIP video call.

HD Voice Quality :

Built to support the advanced DSP noise reduction algorithms and systematic procedures of omnidirectional sound pickup, the Fanvil i33VF SIP Video Intercom Kuwait delivers crystal clear conversations. It can effectively minimize background noises which may distract the audibility and fluency of phone calls. It can also optimize the sound pickup range, thus guaranteeing its user a high quality voice which in turn leads to a general amazing communication experience. An embedded 3W speaker and AEC mechanism allows for high quality hands-free communication.

Different ways to unlock the door :
The Fanvil i33VF SIP Video Door Phone allows its user to simply to open the door with RFID/IC cards, remote DTMF and indoor switch.

24H Video Surveillance :

Connected with VMS (video management system) via ONVIF, the Fanvil  i33VF SIP Video Intercom can be used for 24H video monitoring. This enables the user to keep an eye on their office or premise even when they are miles away.

Multi-Protection Design :

With a waterproof and dustproof grade IP65 design, the anti-collision standard IK10 and the wide temperature range from -40℃ to 70℃, the Fanvil i33VF Kuwait SIP Video Intercom is built to meet special demands and requirements of various industries. It can therefore withstand harsh weather conditions whenever it is used in outdoor settings.

Alarm Linkage :

The Fanvil i33VF Video Intercom can trigger the record of camera video or the alarm indicator using an integrated short output port.

Access Control :

Fanvil i33VF Video Intercom enables the user to open the door remotely from the comfort of their seat regardless of their distance from the unit,  by connecting to the electric lock with the short-circuit input port.

Record Output :

The Fanvil i33V Video Intercom can connect to the audio input port of the camera or digital record device
using a record output port to provide 24h Monitoring services.

External Active Speaker :

Fanvil i33VF SIP Video Intercom can connect to speaker by the audio output port to play voice messages or music as desired by the user.

Multi Platform Compatibility :

The Fanvil i33VF SIP Video Intercom  is configured to work perfectly with different various professional office platforms including Huawei, BroadSoft, Asterisk, NEC, ZTE, Elastix, 3CX, Metaswitch, Avaya, and many others.

Easy Online Configuration and Management :

An easy batch deployment incorporated into the Fanvil Device Management System  enables a user to simply configure and manage the Fanvil i33VF SIP Video Intercom without wasting much time.

2 SIP Lines :

The Fanvil i33VF Kuwait SIP Video Intercom supports 2 SIP accounts, therefore boosting efficiency and enhancing communication in the office. This generally improves the productivity of employees.

Supports Power over Ethernet  (PoE) :

The Fanvil i33VF SIP Video Intercom is a highly economical device which is built to minimize high power consumption using Power over Ethernet. It is equipped with an adaptive 10/100mbps Gigabit Ethernet port which connects to a power source. For users who do not have PoE equipment, the traditional power adapter should be used. If the device is connected to a PoE switch and power adapter at the same time, the power adapter will be used in priority and will switch to PoE power supply at power failure on the power adapter.

SIP Compliance :

The Server-Initiated Application (SIP) is incorporated for users to plug and play the phone without the need for configurations. Once the phone is connected to the network and powered on, initialization commences automatically, after which the phone is up and ready for use. Furthermore, the Fanvil i33VF SIP Video Intercom can not only be configured via a user interface, it also accepts SIP NOTIFY messages from SIP proxy servers, which gives it an ability to act as a web server. The Fanvil i33VF Video Intercom is based on SIP v2 (RFC 3261) and works perfectly with most of the SIP platforms such as Asterisk,3CX,  and BroadSoft  that currently exist in the market.

Wall Mountable, Simple & Space Saving :

The Fanvil i33VF Kuwait SIP Video Intercom is a wall-mountable device which  combines the advantages of a neat, compact appearance with the most commonly used functions of a communication intercom. It is a good choice for hospitals, hotels and general business functions.

Technical Specifications


  • 2 SIP Lines, support SIP 2.0 (RFC3261) and related RFC
  • Full-duplex handsfree
  • Default auto answer
  • Intercom function
  • Industrial Standard Certifications : IP65&IK10, CE/FCC

Access Control Function

  • Unlock door method : DTMF, password, RFID/IC card, indoor switch, WEB page
  • Support 2000 Remote access list
  • Support 2000 RFID/IC cards
  • Support 200,000 door open records
  • Support electric lock internal or external power supply options
  • Auto multicast function
  • Support ONVIF
  • Network Time Synchronisation
  • Action URL / Active URI


  • Wideband ADC/DAC 16KHz Sampling
  • Narrowband CODEC : G.711a/u, G.723.1, G.726-32K, G.729AB
  • Wideband CODEC : G.722
  • Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /Background Noise Estimation (BNE)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive litter Buffer up to 300ms
  • DTMF : In-band, Out of Band DTMF (RFC2833) / SIP INFO


  • Sensor : 1/2.7” color CMOS
  • 2 megapixels
  • Video code : H.264
  • Resolution :
    • Main stream : 1280×720@25fps
    • Sub-stream : 704×576(D1)@25fps
  • Viewing angle : 112° (H), 84° (V)
  • Minimum illumination : 0.1Lux, support for infrared illumination


  • Support PoE
  • Primary and secondary DNS servers are supported
  • Support RTSP
  • Support SNTP client
  • Support VPN L2TP / openVPN
  • Support SRTP
  • Support HTTP / HTTPS web pages
  • Support Qos : 802.1p / q, DSCP
  • DHCP / static / PPPoE
  • Support STUN


  • SIP2.0 over UDP/TCP/TLS
  • STUN
  • DHCP
  • LLDP
  • PPPoE
  • 802.1x
  • L2TP
  • OpenVPN
  • SNTP
  • TR-069

Deployment & Maintenance

  • Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/TR069/SIP PNP
  • Web Management Portal
  • Web-based Packet Dump
  • Configuration Import/Export
  • Firmware Upgrade
  • Syslog

Physical Specifications

  • LCD Pixel : 128×48 dots
  • LCD Dimension : 64×30.5×5.2 mm
  • Keypad : 15 keys(with backlight),including 12 number keys and 3 function keys (Detail/Password Mode/Backspace)
  • 1 RJ45 port, 10/100M adaptive
  • 1Wiegandport
  • 1 audio output interface
  • 1 recording output interface
  • 2 relays : MAX DC30V / 2A, AC125V / 0.5A for door opener
  • Active switching output : 12V / 500mA DC(only 1 relay support)
  • 2 indoor switch
  • 2 door magnetic detection
  • 1 tamper alarm switch
  • Temperature controller power : 12V/1A(external PSU)
  • RFID reader : ID (EM4100,125KHz) &IC(MIFARE ONE,13.56MHz)
  • Power : DC12V/1A or PoE
  • Housing material : aluminum alloy shell
  • Protection level : IP65 and IK10
  • Installation : Wall-mounting(i33V); Flush mounting (i33VF)
  • Working temperature : -40 ~ 70 °C
  • Storage temperature : -40 ~ 70 °C
  • Relative humidity : 10% 90%
  • Equipment Dimension : 295x142x62mm
  • Packing Dimension : 370x194x111mm
  • Outer CTN Dimension : 413x360x392mm(6 PCS)
  • Equipment weight : 2193g
