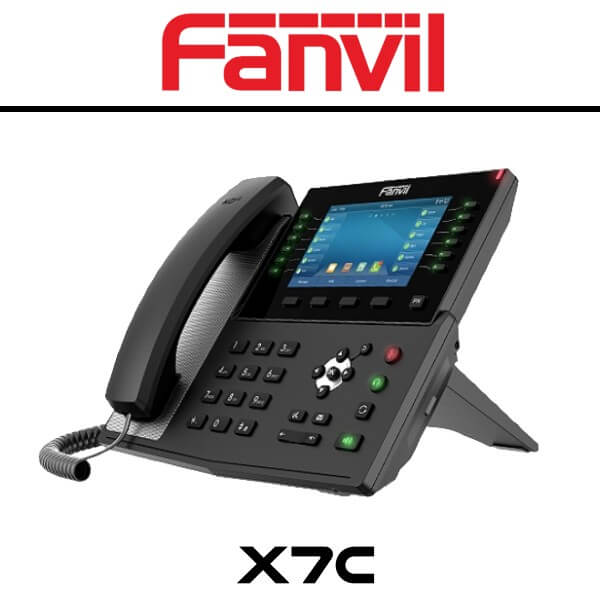

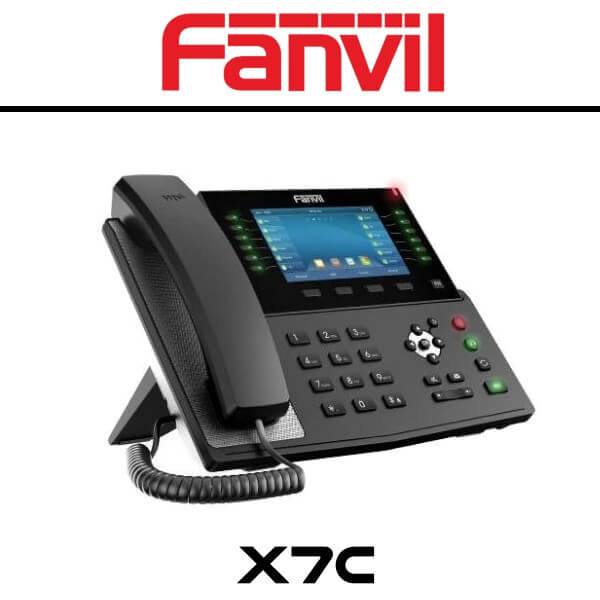

Fanvil X7C Enterprise Color IP Phone Kuwait

The Fanvil X7C Kuwait is a high-end enterprise phone for business users. The X7C boasts a 5-inch high-resolution color screen, 20 SIP lines, and HD Audio with Opus support. In addition to this, the X7C features built-in Bluetooth and Wi-Fi connectivity. With a modern, clear design, Fanvil X7C is a high-end enterprise IP phone for business users who need immediate access to all of their important information. In addition to a 5-inch high-resolution color screen, the telephone also features 20 SIP lines, HD audio with Opus support, up to 60 DSS keys (12 physical), Built-in Bluetooth, Wi-Fi connectivity and more.

The telephone’s 5″ large color display offers convenient access to all key information such as call lists, phonebook, functions. Newly-added support for Opus and a larger audio cavity bring abundant, strong low-frequency audio effects. The speakerphone adopts full net coverage delivering crystal clear, life-like voice communication. Fanvil X7C offers a variety of device connections including Wi-Fi(via Wi-Fi dongle), built-in Bluetooth, EHS headset, USB connection for charging a smartphone, or other devices.

Two Gigabit ports allow you to connect your desktop computer or laptop on the phone – no need for extra cabling. 12 DSS keys on side of the display feature multi-colored LEDs, ensuring they are easy to see. Up to 60 DSS key entries are available over 5 pages, and each key can be individually configured with speed dial, call forwarding, BLF, group broadcasting function, etc. Equipped with video codec H.264, Fanvil X7C Kuwait enables you to be integrated with your IP camera or Fanvil SIP video door phone, so that you can have a two-way talk with visitors and unlock the door from your X7C IP phone if you deem them worthy.

Features :

20 lines
HD Audio with Opus
5-inch color display
Built-in Bluetooth
60 DSS keys
Wi-Fi Connectivity
Adjustable screen
Dual Gigabit ports
Up to 60 DSS key entries (5 pages)
Built-in Bluetooth
Wi-Fi via Wi-Fi dongle (sold separately)
Can be used as a mini PBX to form small DIY communication and security solutions
Compatible with major platforms : 3CX, Avaya, Asterisk, Broadsoft, Metaswitch, Elastix etc.

5″ Capacitive Touch Color Display :
The telephone’s 5″ color touch display offers convenient access to all key information at your fingertips.

HD audio for speakerphone & handset :
Newly-added support for Opus and a larger audio cavity bring abundant, strong low frequency effect. The speakerphone adopts full net coverage delivering crystal clear, life-like voice communication.

Up to 60 DSS Key Entries :
A total of 60 DSS key entries are available at the large touch display to users over four pages. Each key can be individually configured with speed dial, call forwarding, BLF, group broadcasting function etc.

Rich Extension Function :
X7C offers a variety of device connections including Wi-Fi (via Wi-Fi dongle), built-in Bluetooth, EHS headset, USB connection for charging smartphone or other devices. Two Gigabit ports allows you to connect your desktop computer or laptop on the phone – no need for extra cabling.

Deliver HD Video Call with IP Camera/SIP Video Door Phone Integration :
Equipped with video codec H.264, X7C enables to be integrated with your IP camera or Fanvil SIP video door phone, so that you can have a two-way talk with visitors & unlock the door from your X7 IP phone if you deem them worthy.

20 – Line Operation :

A user can easily make or receive calls using 20 different SIP lines. This feature is not only highly efficient in offices, but is also useful in boosting the productivity of workers.

Supports 3-way conferences :

The Fanvil X7C IP Phone is designed to allow for 3-way group calls to enable you to have a teleconference with two other parties, delivering a more powerful and flexible session management.

Effortless Configuration :

The Fanvil X7C IP Phone comes with an easy web – based configuration via phone and computer, resulting in additional convenience and increased productivity.

PoE (Power over Ethernet) Integrated :

Fanvil X7 Kuwait IP Phone is equipped with two 10/100Mbps Gigabit Ethernet ports to allow for an easy connection to Power over Ethernet. It is designed without any heavy cabling thus reducing the number of wires on your working space and allowing for an easy installation of the IP Phone.

The Hands-free Mode :

The Fanvil X7C IP Phone is built to support the use of headsets, thus allowing the user to enjoy maximum mobility within the office. The headset can be easily connected to the IP Phone using an integrated RJ9 Port.

Multi-Platform Compatibility :

Based on SIP, the Fanvil X7C IP Phone is configured to allow for a full compatibility with major leading professional office platforms including Asterisk, 3CX, Elastix, BroadSoft, Zycoo, and many other world’s top platforms.

Multiple Installation Options :

Fanvil X7C Kuwait IP Phone offers its user a quick and easy installation which requires no technical expertise. It can be installed in two adjustable angles of 45 – degrees and 50 – degrees, resulting in a neat workstation.

Technical Specifications

General

20 SIP Lines
HD Voice
Support receiving Video call
POE Enabled
5 Inch Colour LCD Screen
Handset / Hands-free / Headset mode
Intelligent DSS Keys
Optional External Power Supply

Call Features

Call out / Answer / Reject
Mute / Unmute (microphone)
Call Hold / Resume
Call Waiting
Intercom
Caller ID Display
Speed Dial
Anonymous Call (Hide Caller ID)
Call Forwarding (Always/Busy/No Answer)
Call Transfer (Attended/Unattended)
Call Parking/Pick-up (depending on server)
Redial
Do-Not-Disturb
Auto-Answering
Voice Message (on server)
3-way Conference
Hot Line
Hot desking

Phone Features

Local Phonebook (2000 entries)
Remote Phonebook (XML/LDAP, 2000 entries)
Call logs (in/out/missed, 1000 entries)
Black/White List Call Filtering
Screen saver
Voice Message Waiting Indication (VMWI)
Programmable DSS/Soft keys
Network Time Synchronisation
Built-in Bluetooth 2.1 : Support Bluetooth headset
Support Wi-Fi Dongle
Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable
Support Recording (Through Flash Drive or Server Recording )
Action URL / Active URI
uaCSTA

Video

Video codec : H.264
Video call resolution : QCIF / CIF / VGA

Audio

HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
HAC handset
Wideband ADC/DAC 16KHz Sampling
Narrowband CODEC : G.711a/u, G.723.1, G.726-32K, G.729AB, AMR, iLBC
Wideband CODEC : G.722, AMR-WB, Opus
Full-duplex Acoustic Echo Canceller (AEC)
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer up to 300ms
DTMF : In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO
