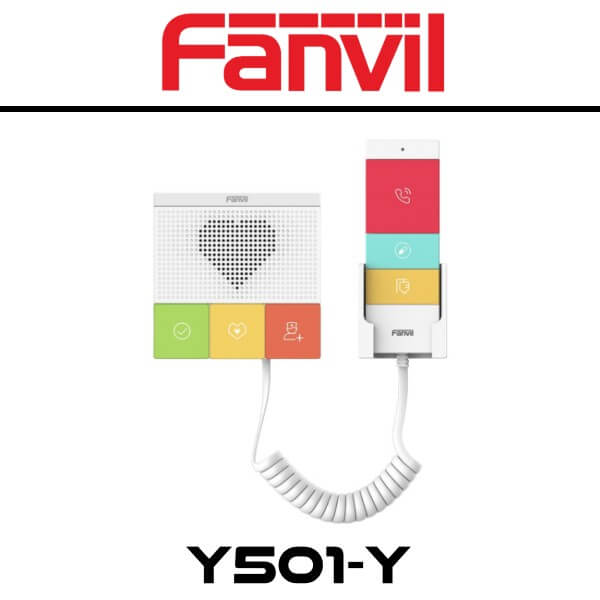

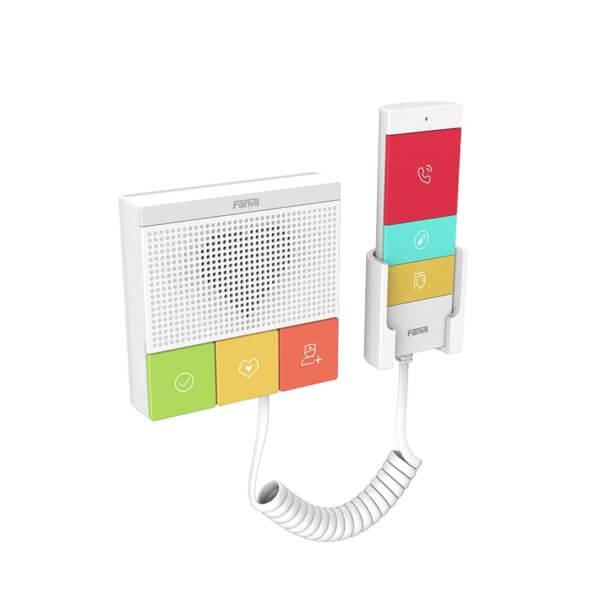

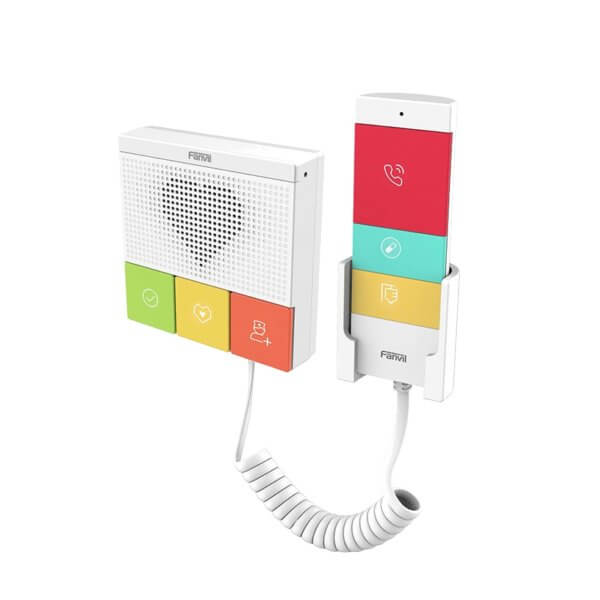

Fanvil Y501-Y Kuwait

The Fanvil Y501-Y Kuwait SIP healthcare intercoms cater to a range of settings including home-based care, nursing homes, and indoor environments. Primarily designed to enhance emergency communication, ensure security, and enable broadcasting, these intercoms offer a comprehensive solution for healthcare facilities. Equipped with high-definition audio capabilities, they support up to 2 SIP accounts and feature detachable DSS keys for added flexibility. Their IP54 waterproof and dustproof ratings ensure durability in challenging conditions, while the inclusion of built-in 2.4G & 5G Wi-Fi (Y501W-Y/Y501W-Y-E) expands connectivity options. Additionally, the Y501-Y series supports various installation modes such as standard 86 box embedded and wall mountable configurations, allowing for seamless integration into healthcare communication systems.

Highlights

• Support audio codec G.722 and Opus.
• Support specific 433MHz wireless button
• Features 2 SIP accounts and 6 antibacterial material detachable function buttons
• Support HD audio with codec G.722 and Opus
• Built-in 2.4G&5G Wi-Fi(Y501W-Y/Y501W-Y-E)
• Built-in 1 short circuit input/output interface
• IP54 waterproof and dustproof
• Support PoE power supply
• Support wall mountable installation (Y501-Y/Y501W-Y) and 86 box embedded installation(Y501-Y-E/Y501W-Y-E)

Features

Generic

• 2 SIP Lines
• Auto answer
• HD Voice
• PoE Enabled
• Built-in 2.4GHz & 5G Wi-Fi(Y501W-Y/Y501W-Y-E)
• Intercom function
• External Power Supply (Optional)

Intercom Function

• Support customized DSS keys
• Support wireless button (Optional)
• Network Time Synchronization
• Built-in Wi-Fi
• 4G, 802.11 b/g/n
• 5G, 802.11 a/n
• Action URL / Active URL

Audio

• Narrow band Codec: G.711a/u, G.729AB, G.723.1, G.726, iLBC
• Wide band Codec: G.722, Opus
• Duplex intercom with Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

• Physical: 10/100 Mbps Ethernet
• WIFI: 2.4G & 5G (Y501W-Y/Y501W-Y-E)
• IP Mode: IPv4/IPv6/IPv4&IPv6
• IP Configuration: Static / DHCP / PPPoE
• Wi-Fi Encryption: WPA /WPA2-PSK /802.X EAP
• VPN: L2TP / OpenVPN
• VLAN
• LLDP
• QoS

Protocols

• 0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• Y501-Y Series: 6 DSS buttons (Finish, Nursing, Assistant, Call, Dressing change, Infusion)
• Up to 10 wireless buttons supported
• Status indicator light: Red (registration failed network anomaly) Green (registration successful call)
• 1 RJ45 port
• 1 short circuit input interface
• 1 relay: NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
• Power: DC12V/1A or POE
• Power Consumption (Adapter)：
• 94W~1.98W(Y501-Y/Y501-Y-E)
• 42W~2.35W(Y501W-Y/Y501W-Y-E)
• Power Consumption (PoE)：
• 48W~2.37W(Y501-Y/Y501-Y-E)
• 99W~3.05W(Y501W-Y/Y501W-Y-E)
• Housing material: ABS
• 433 wireless button specification：
• communication mode ：FSK
• working frequency：433MHZ
• communication protocol：1
• Installation: Indoor installation
• Standard 86 Box Embedded
• Wall Mountable
• Color: White
• working temperature: -10 ~50 °C
• Storage temperature: -20 ~ 50 °C
• Relative humidity: 10% – 90%
• W/CNT：3.97kg
• W/CNT：4.4 kg
• Equipment Dimension:
• 56 x 87.56 x 30mm (Wall Mountable)
• 56 x 87.56 x 21.5mm (86 Box Embedded)
• Packing Dimension: 234x168x44 mm
• Outer CTN Dimension: 356x245x254mm (10pcs)
