Description

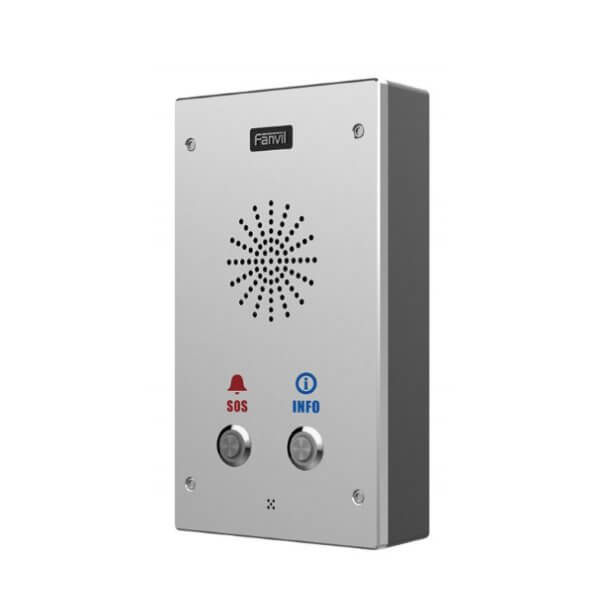

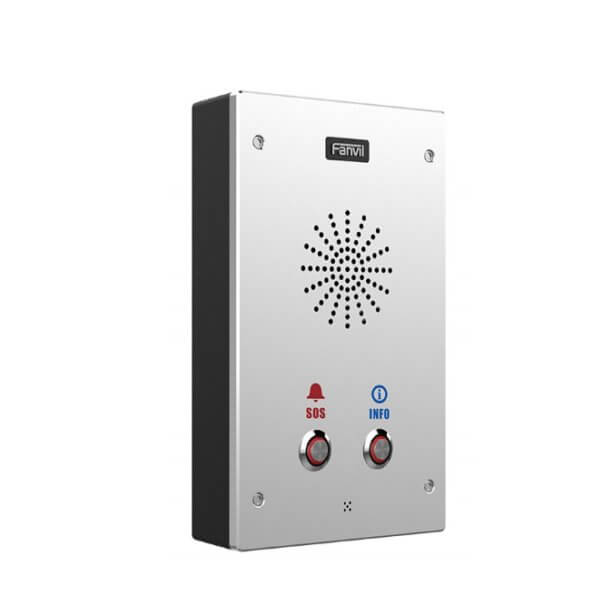

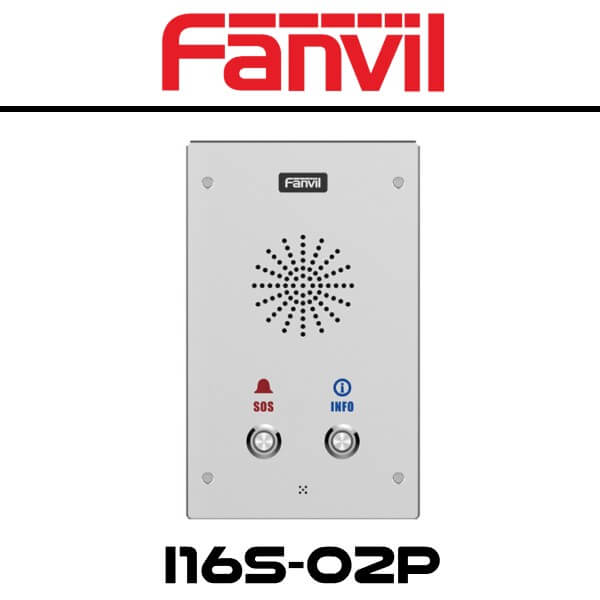

Fanvil i16S-02P Kuwait

The Fanvil i16S-02P Kuwait SIP Intercom has been meticulously engineered for outdoor settings, ensuring unwavering reliability, superior audiovisual clarity, and robust protection with its IP65/IK10 rating. This cutting-edge device seamlessly combines essential security attributes, advanced audiovisual intercom functionalities, and versatile broadcast capabilities, culminating in an unparalleled communication solution tailored to the needs of users in various environments. Whether it’s safeguarding premises, facilitating seamless interactions, or broadcasting important messages, this intercom stands as a testament to innovation and performance in the realm of communication technology.

Highlights

• Built-in HD camera with infrared night vision, adopt H.264 codec (only i16SV-02P)
• IP65 waterproof and dust proof.
• IK10 anti-collision with robust die-cast aluminum frame
• Anti-tamper- alarming as long as the cover is apart from the housing, and reporting to the control center at the same time
• HD voice speech quality with built-in 3W speaker and Acoustic Echo Canceller
• Audio line out port, expandable external active speaker.
• Built-in 2 short-in detect port and 2 short-out control port
• Support built-in TF card slot for data storage or audio offline broadcasting.

Features

Generic

• 2 SIP lines
• Speed dial
• Linkage with IP camera to realize video intercom
• Oral announcement of the IP address (in English)
• MP3 broadcasting
• Support programmable DSS key
• Support mono active speaker
• Talkback recording output
• Switch signal input and output
• Support TF card
• PoE enabled

Device Functions

• Auto-answering
• Programmable DSS keys
• Through button or web page volume adjustment
• Network time synchronization
• Time Plan (task management)
• Incoming call multicast
• Dynamic multicast function
• HTTP API
• Action URL / Active URI

Call Functions

• Call out / answer / reject
• Call waiting
• Intercom, Multicast
• Speed dial
• Anonymous call (Hide caller ID)

Audio

• Narrow band codec: G.711A/U, G.729A/B, iLBC, G.723, G.726-32K
• Wide band codec: G.722, Opus
• Full-duplex hands-free speakerphone with AEC
• DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)

Video (Only i16SV-02P)

• Sensor: 1/2.8” color CMOS
• Pixels: 2 Mega
• Video coding: H.264
• Resolution: 720P/1080P
• Minimum illumination: 0.1Lux, support for infrared illumination
• Viewing angle:
  • Diagonal: 126°
  • Horizontal: 98°
  • Vertical: 65°

Network

• Physical: 10/100 Mbps Ethernet
• IP mode: IPv4/IPv6/IPv4&IPv6
• IP configuration: Static IP / DHCP / PPPoE
• VPN: L2TP / Open VPN
• VLAN
• LLDP
• Qos

Protocols

• 0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• 2 DSS key (support LED)
• RJ45 port x1: connect the network
  • Power over Ethernet (IEEE 802.3af), class 3
• Line out port x1: connect the active speaker
  • Out: adjustable by volume, max up to1.2Vpp.
  • Port: terminal socket
• Recording output port x1: connect audio device
  • Out: mixed output of local microphone voice and call voice
  • recording
  • Impedance: 15 Ohm
  • Port: terminal socket
• Short circuit input and output port x2 (built-in relay)
  • Relay: MAX DC30V / 2A, AC125V / 0.5A
  • Active switching output: 12V/500mA DC (only 1 relay support)
  • Port: terminal socket
• Tamper alarm switchx1
• TF card slot x1: connect TF card
• DC port x1: DC power input
  • DC power input: DC12V~24V/1A
  • Port: 2 Pin terminal sockets
• Protection level: IP65 and IK10
• Housing material: aluminum alloy shell
• Installation: wall-mounted
• Working temperature: -30℃ ~ 60℃
• Storage temperature: – 40℃ ~ 70℃
• Working humidity: 10~95%
• Net weight/box: 9.5 kg
• Gross weight/box: 10.05 kg
• Device dimensions: 195x120x40 mm
• Gift box dimensions: 260x165x62 mm
• Outer CTN dimensions: 348x328x280 mm (10 PCS)
