Description

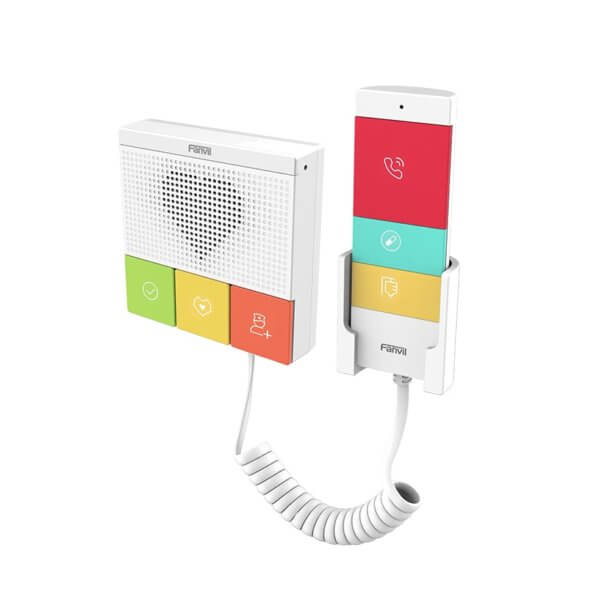

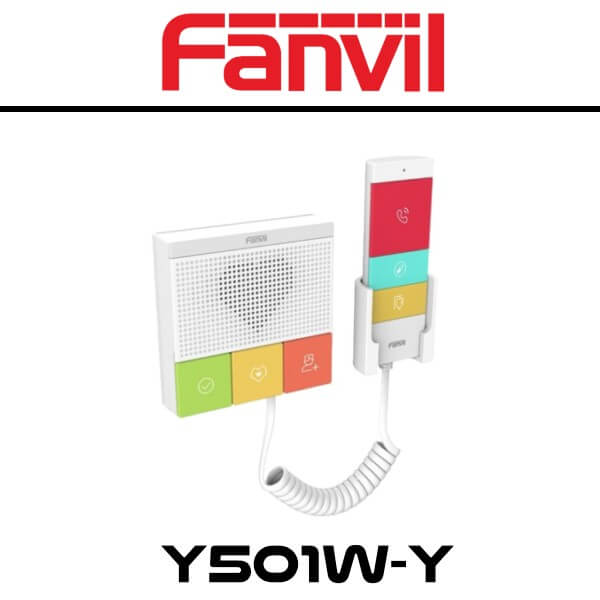

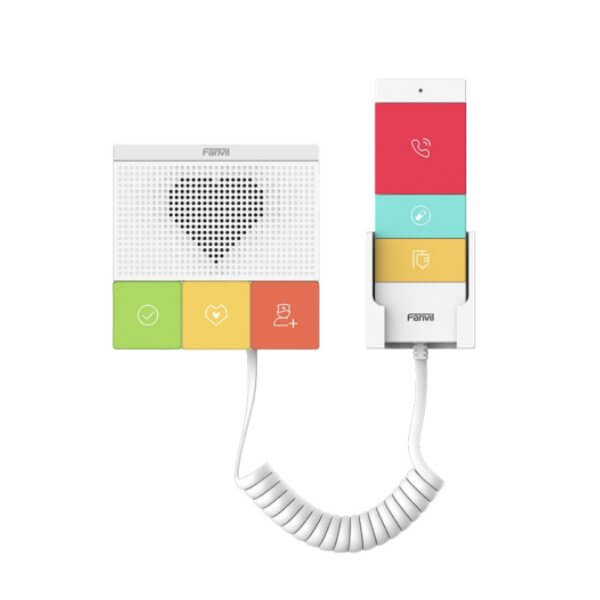

Fanvil Y501W-Y Kuwait

The Fanvil Y501W-Y Kuwait SIP healthcare intercoms are meticulously designed to cater to a wide array of healthcare needs, from in-home care to nursing facilities and beyond. Their primary function is to facilitate emergency communication, bolster security measures, and provide versatile broadcasting capabilities. Equipped with high-definition audio, these intercoms boast the capacity for two SIP accounts and feature detachable DSS keys for enhanced customization. Moreover, their IP54 waterproof and dustproof rating ensures durability and reliability in diverse indoor environments. The integration of both 2.4G and 5G Wi-Fi ensures seamless connectivity, catering to varying network requirements. The Y501-Y series presents a range of installation options, from standard 86 box embedding to wall mounting, ensuring flexibility and ease of deployment. Overall, these intercoms are engineered to deliver swift and effective healthcare communication experiences, addressing the critical needs of modern healthcare environments.

Highlights

• Support audio codec G.722 and Opus.
• Support specific 433 MHz wireless button
• Features 2 SIP accounts and 6 antibacterial material detachable function buttons
• Support HD audio with codec G.722 and Opus
• Built-in 2.4G&5G Wi-Fi(Y501W-Y/Y501W-Y-E)
• Built-in 1 short circuit input/output interface
• IP54 waterproof and dust proof
• Support PoE power supply
• Support wall mountable installation (Y501-Y/Y501W-Y) and 86 box embedded installation(Y501-Y-E/Y501W-Y-E)

Features

Generic

• 2 SIP Lines
• Auto answer
• HD Voice
• PoE Enabled
• Built-in 2.4GHz & 5G Wi-Fi(Y501W-Y/Y501W-Y-E)
• Intercom function
• External Power Supply (Optional)

Intercom Function

• Support customized DSS keys
• Support wireless button (Optional)
• Network Time Synchronization
• Built-in Wi-Fi
• 4G, 802.11 b/g/n
• 5G, 11 a/n
• Action URL / Active URL

Audio

• Narrow band Codec: G.711a/u, G.729AB, G.723.1, G.726, iLBC
• Wide band Codec: G.722, Opus
• Duplex intercom with Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

• Physical: 10/100 Mbps Ethernet
• WIFI: 2.4G & 5G (Y501W-Y/Y501W-Y-E)
• IP Mode: IPv4/IPv6/IPv4&IPv6
• IP Configuration: Static / DHCP / PPPoE
• Wi-Fi Encryption: WPA /WPA2-PSK /802.X EAP
• VPN: L2TP / OpenVPN
• VLAN
• LLDP
• QoS

Protocols

• 0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• Y501-Y Series: 6 DSS buttons (Finish, Nursing, Assistant, Call, Dressing change, Infusion)
• Up to 10 wireless buttons supported
• Status indicator light: Red (registration failed network anomaly) 、Green (registration successful call)
• 1 RJ45 port
• 1 short circuit input interface
• 1 relay: NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
• Power: DC12V/1A or POE
• Power Consumption (Adapter)：
• 94W~1.98W(Y501-Y/Y501-Y-E)
• 42W~2.35W(Y501W-Y/Y501W-Y-E)
• Power Consumption (PoE)：
• 48W~2.37W(Y501-Y/Y501-Y-E)
• 99W~3.05W(Y501W-Y/Y501W-Y-E)
• Housing material: ABS
• 433 wireless button specification：
• communication mode : FSK
• working frequency：433 MHZ
• communication protocol：1
• Installation: Indoor installation
• Standard 86 Box Embedded
• Wall Mountable
• Color: White
• working temperature: -10 ~50 °C
• Storage temperature: -20 ~ 50 °C
• Relative humidity: 10% – 90%
• W/CNT：3.97kg
• W/CNT：4.4 kg
• Equipment Dimension:
• 56 x 87.56 x 30mm (Wall Mountable)
• 56 x 87.56 x 21.5mm (86 Box Embedded)
• Packing Dimension: 234x168x44 mm
• Outer CTN Dimension: 356x245x254mm (10pcs)
