Ruijie RG-EG105GP Kuwait

Ruijie RG-EG105GP Kuwait

When Ruijie RG-EG105GP Router Kuwait is used as an egress gateway, it can also serve as a unified controller for the entire network. The industry-leading unified network controller for router+ switch + wireless can manage up to 150 APs and 120 cloud managed switches.

Description

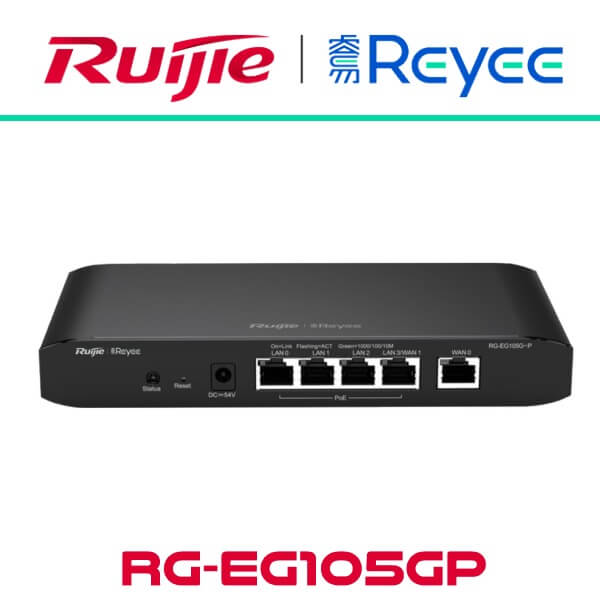

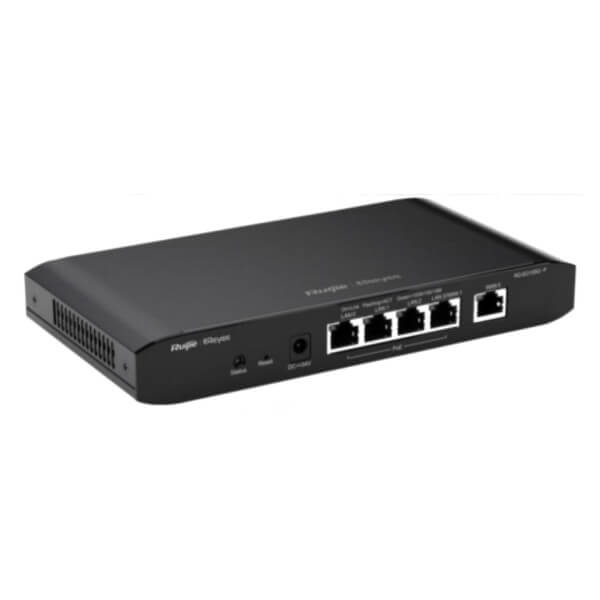

Ruijie RG-EG105GP Router Kuwait

Ruijie RG-EG105GP Kuwait is a cloud-managed router with up to x2 WAN ports, 4x 802.3af/at PoE ports and built-in network controller to centrally manage Reyee access points and managed switches. The router also offers a unified configuration with advanced features such as load balancing, traffic audit, behavior management, flow control, VPN and much more. It supports Ruijie’s smart networking feature, which with Ruijie’s free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Features:

Port Isolation for security CCTV network

Ruijie RG-EG105GP Kuwait supports per-port VLAN and network segment division, and provides a cascade port for surveillance switch expansion, isolating the surveillance network and data network.

Multiple WAN Policies

Ruijie RG-EG105GP Kuwait supports PPPoE, static IP, dynamic IP, and other WAN port connection modes, as well as smart routing based on the carrier address database, and policy-based routing for load balancing and active/standby switching. It also supports load balancing based on source addresses so that services such as online banking login will no longer fail due to IP conversion.

Copying the Dial-up Password

By obtaining the dial-up account password from the existing router, users do not have to worry about forgetting the password when replacing the router.

IP sec VPN

Provide VPN services for headquarters and branches, up to 8 branches.

Network Management

When Ruijie RG-EG105GP Kuwait is used as an egress gateway, it can also serve as a unified controller for the entire network. The industry-leading unified network controller for router+ switch + wireless can manage up to 150 APs and 120 cloud managed switches.

Technical Specifications

Model RG-EG105G-P
Port 5 10/100/1000M Base-T ports, supporting up to 2 WAN ports (Default: 1 WAN port, 4 LAN ports, LAN3 can be switched to WAN1 port)
RAM 128MB
Flash 16MB
Maximum number of clients Up to 100 concurrent clients
Recommended bandwidth
  • 500M asymmetric bandwidth (flow control disabled)
  • 300M asymmetric bandwidth (flow control enabled)
Local power supply Support 220V AC local power supply
Power consumption <60W (With PoE load)
Network
Network access
  • PPPoE dial-up
  • DHCP client
  • Static IP
  • Automatic identification of access methods
  • Automatic avoidance of WAN port address conflicts
  • MAC cloning
  • Obtaining account passwords from existing routers
Routing
  • Static routing
  • Policy-based routing
  • Carrier address routing
  • Active/standby mode
  • Load balancing based on source address
  • Flow-based load balancing
  • Port-based weighted load balancing of data streams
Security
  • ACL
  • IP-MAC binding
  • MAC address filtering
  • Dynamic ARP
  • Static ARP binding
  • NAT
  • NAPT
  • Port mapping
Other protocols
  • DHCP Server
  • DHCP Client
  • DHCP Option43/ 138
  • DNS Client
  • DNS Server
  • DNS Proxy
  • TFTP
  • NTP
  • DDNS
Gateway
Flow control
  • Support custom flow control policies
  • IP-based automatic bandwidth assignment
Traffic audit
  • Real-time traffic audit
  • IP traffic visualization
Behavior management Time-based and IP policy-based access control
VPN IPsec VPN (8 tunnels) server and client
Wireless management
Management capacity
  • In AC mode, the maximum management capacity is 300
  • In gateway mode, the maximum management capacity is 32
AP management
  • Support multi-SSID configuration
  • SSID hiding
  • Channel setting
  • Power setting
  • AP wired port setting
  • AP online upgrade
  • STA quantity setting
  • STA blacklist and whitelist
Roaming
  • Support local forwarding roaming
  • Layer 2 roaming
  • Layer 3 roaming between APs
  • Viewing of STA roaming track
Switch management
Management capacity Maximum manageable cloud managed switches : 128
Port management
  • Loop protection
  • Port mirroring
  • Port isolation
  • Port configuration
  • PoE configuration
  • Port limit
  • Storm control
  • Static MAC
  • MAC search
Status display
  • Port statistics monitoring information
  • Cable detection
  • VLAN configuration
  • MAC list
Upgrade management
  • Per-device upgrade
  • Batch upgrade
Value added features
Featured solutions
  • Single-cable IPTV solution
  • Port service VLAN and network segment isolation solution
  • Smart fault diagnosis solution
  • Intranet penetration solution
  • Auto-networking solution
Management Eweb and Ruijie Cloud
Physical
Dimensions 206.5×108.5×28 (mm)
Weight 0.84kg
Working Temperature 0℃~40℃
Storage temperature -10℃~70℃
Working humidity 10%~90% RH non-condensing
Storage humidity 5%~95% RH non-condensing
