Taking advantage of integrated Hard Disk Drive (HDD), the EG Security Gateway can provide local storage for Internet activities logging, which is essential for National Internet Security Compliance in many countries.

Description

Ruijie RG-EG3250 Router Kuwait

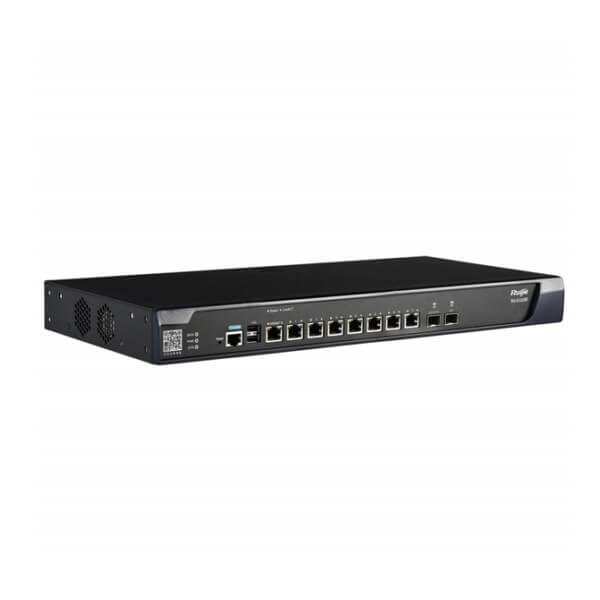

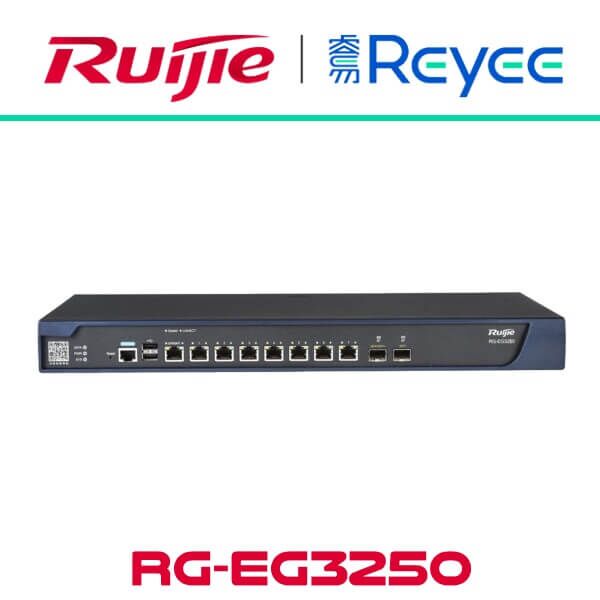

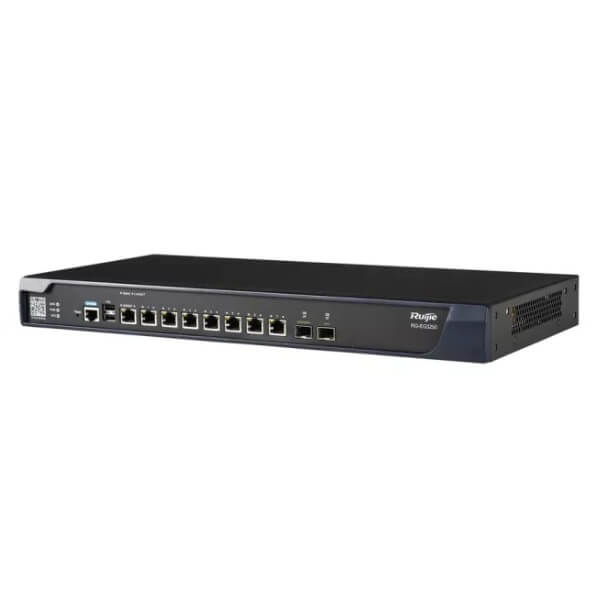

The Ruijie RG-EG3250 Kuwait is a multi-functional Cloud Managed Security Gateway product for various industries. Equipped with high-performance multi-core MIPS hardware architecture, the EG Gateway supports a wide range of features such as high-performance NAT, WAN load balancing, smart flow control, online behavior management, visualized IPsec VPN , web authentication, etc.

Taking advantage of integrated Hard Disk Drive  (HDD), the Ruijie RG-EG3250 Kuwait can provide local storage for Internet activities logging, which is essential for National Internet Security Compliance in many countries.

Ruijie RG-EG3250 Kuwait is also supported by Ruijie Cloud, altogether with switches and wireless access points, Ruijie Cloud can provide a comprehensive secure networking platform for centralized management allowing for device monitoring, configuration as well as firmware management.

Features:

  • Smart Flow Control & AAA Integration
  • User Online Behavior Management
  • VPN & Traffic Visualization
  • FREE Cloud Management
  • App Caching for Download Acceleration
  • Built-in Internet Audit Log Storage (EG3250)

Technical Specs

Model RG-EG3250

Hardware Specification

CPU

Multi-core MIPS

Fixed Ports

  • 8 1000BASE-T ports
  • 1 SFP port
  • 1 SFP+ port (non-combo)

WAN Ports

Upto 6

Flash

8M SPIFLASH

Hard Disk

Standard 1TB

Memory

2G

Performance & Feature

Performance

6000Mbps (1518 bytes)

3725Mbps (512bytes)

800Mbps (64 bytes)

Concurrent Session

600,000

Recommended Concurrent User[1]

2000

Portal Authentication Capacity

1500 (Max Concurrent Users)

Portal Authentication Type

  • Username/Password Auth (Local, Windows-based AD/LDAP Integration)
  • One-click Authentication;
  • Guest Voucher (Ruijie Cloud required);

Seamless Authentication (Portal)

Support

App Caching

Support

Cache Capacity

100GB

Cache Resources

Windows System Patches

Network Protocol

  • Support TCP/IP protocols, including IP, ICMP, TCP, UDP, etc.
  • Support multiple routing protocols, including static routing, RIP (V1 / V2) and OSPF
  • Support DHCP Relay and DHCP Server
  • Support PPPoE Client
  • Support NAT and multiple NAT ALG including FTP, H.323, DNS, etc.
  • Support ARP, trusted ARP, proxy ARP, etc.
  • Support Ping and Traceroute fault detection

Application Visibility

  • Support self-developed 43 types of applications / more than 120 application features, customizable protocol identification :
  • P2P : BitTorrent, eMule, Thunder, EDONKEY, FlashGet & etc.
  • Multimedia : YouTube, Facebook Video, WebEx Conference & etc.
  • Social Media : Facebook, Twitter, LinkedIn, Pinterest & etc.
  • VOIP/Chat : Skype, Viber, Google Hangout, Jabber, Facebook Messenger & etc.
  • Instant Messaging/Email : Gmail, MSN, QQ, YAHOO & etc.
  • Software Update : Window, McAfee, Kaspersky, ESET & etc.
  • Cloud-based File Collaboration : GoogleDrive, Dropbox, OneDrive, iCloud & etc.
  • Enterprise Application :HTTP, FTP, SMTP, POP3, IMAP, Telnet, LOTUS-NOTES, SQL Server, Oracle, Mysql, HTTPS & etc.

URL Filtering

  • Support HTTP/HTTPS domain filtering
  • Support remote HTTP automatic URL library upgrade
  • Local log storage (NAT log, traffic log, URL log, etc.)
  • Support storage on external log server

WAN Load Balancing

Support (upto 6 WAN Port)

High Availability

  • VRRP
  • RIP (Graceful Restart)
  • OSPF (Graceful Restart)

IPsec VPN Tunnel

1000

Network Security

  • Anti-ARP Spoofing
  • Defense against malicious attacks from internal and external networks
  • Support secure address binding
  • Block WAN Ping
  • Prevent Port Scan Attack
  • Prevent Fragmentation Attack
  • Prevent ICMP Flood Attack
  • Prevent Teardrop Attack
  • Prevent Ping of Death Attack
  • Prevent Land Attack
  • Prevent Smurf / Fraggle attack
  • Prevent SYN Flood Attack

Layer 2 Features

  • Support Bridging
  • Support LAN Port Aggregation

Ruijie Cloud Integration Feature

  • Support device health monitoring status
  • Support centralized configuration change management & backup
  • Support Top 10 Application/User traffic visualization
  • Support device firmware management
  • Support event-based alarm notification

Other Features

Integrate with AAA software to support multiple authentication modes

Other Features

Service and Support

Support push advertising page

Support multi-link load balancing

Support remote HTTP online upgrade for signature library, software version, etc.

Lifetime Free signature library upgrade

Rack Height

1U

Weight

4kg

Power Supply

100-240V~,50-60Hz,0.65A

Power Consumption

<25W

Dimensions (W x D x H) (mm)

440×200×43.6

Operating Temperature

0°C to 40°C

Operating Humidity

10% to 90%RH

MTBF

>200,000 Hours
