Ruijie RG-EST350 Kuwait

Ruijie RG-EST350 Kuwait

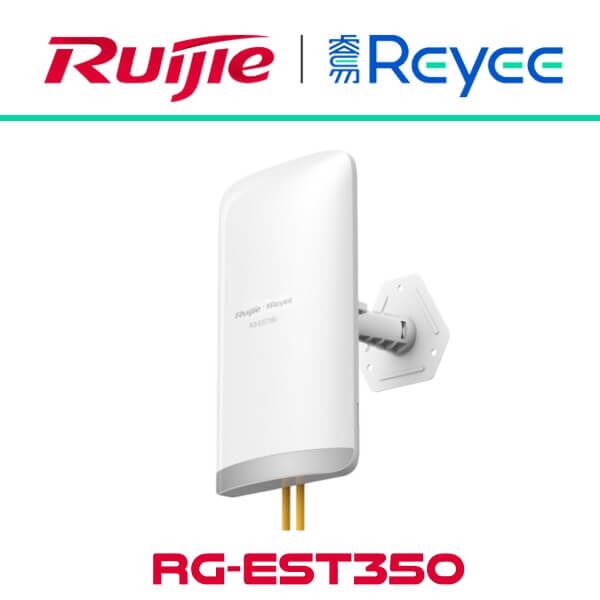

Ruijie Reyee RG-EST350 is an 802.11ac wireless bridge for video surveillance backhaul or remote wireless transmission in scenarios such as tower cranes, factories, scenic spots, campuses, planting bases, aquafarm breeding bases, and construction sites.

Description

Ruijie Reyee RG-EST350 Access Point Kuwait

Ruijie RG-EST350 Kuwait is an 802.11ac wireless bridge for video surveillance backhaul or remote wireless transmission in scenarios such as tower cranes, factories, scenic spots, campuses, planting bases, aquafarm breeding bases, and construction sites. Operating at 5 GHz, RG-EST350 supports two spatial streams (2×2 MIMO technology) and provides up to 867 Mbps throughput, which can fully meet the data link bandwidth requirements of various services. Ruijie RG-EST350 Kuwait consists of 2 devices, including the recorder-end and camera-end device. They are paired by default and can be deployed without requiring any configurations. When used for video surveillance backhaul, it is recommended to connect a switch or hard disk recorder to the recorder-end and connect a network camera to the camera-end.

Ruijie RG-EST350 Kuwait can be managed via the app, including viewing the network topology and modifying configurations, which has completely revolutionized the conventional contact-type bridge configuration method. Bridge maintenance no longer requires working at heights, reducing the difficulty of maintaining bridges to an unprecedented level. With the four-sided curved edges design, Ruijie RG-EST350 Kuwait is equipped with the high-gain antenna. It fully utilizes the compact size and offers an exquisite exterior design. Hose clamps are provided for easy equipment installation.

The casing of the Ruijie RG-EST350 Kuwait is optimized to deliver better dustproof and waterproof performance, providing IP65 protection. The weather-resistant materials enable the casing to stay robust for a long time under harsh conditions such as exposure to the sun, wind, acid and alkali corrosion. Moreover, the wide temperature range of the industrial materials adopted for the device fully guarantee the reliability and durability of the device under various complex environments such as hot and humid weather, dry and cold weather, sun exposure, rain, strong winds, etc. The device is capable of effectively withstanding the impact of bad weather or harsh environments, offering high stability while significantly reducing construction and installation difficulties.

ruijie rg est350 access point kuwait

ruijie rg est350 access point kuwait

Features

Easy Installation at Zero Cost

Ruijie RG-EST350 Kuwait consists of 2 devices, including the recorder-end and camera-end devices. They are paired by default and can be used without requiring any configurations. Also available is hose clamps are provided for easy equipment installation to improve implementation efficiency.

Convenient Maintenance

RG-EST350 can automatically adjust the channels and optimize the power based on the operating environment, thereby reducing the maintenance workload caused by environmental changes. The software and hardware self-healing design can effectively prevent system hang and unexpected connection loss. RG-EST350 supports Ruijie Cloud and Reyee App management, which revolutionizes the conventional contact-type bridge configuration mode. Bridge maintenance no longer requires working at heights, reducing the difficulty of maintaining bridges to an unprecedented level. The device is built-in with wireless product management software. Thus, users can view all bridge information and the topology by logging in to any bridge device.

Excellent Performance

Ruijie RG-EST350 Kuwait boasts of high data transmission bandwidth, low latency, and load balancing, delivering excellent performance even when it is connected to multiple surveillance channels concurrently.

High Reliability

RG-EST350 can provide dustproof and waterproof IP65 protection for outdoor environments and operate in a wide temperature range from –30°C to 65°C. The high-quality weather-resistant materials enable RG-EST350 to maintain excellent structural strength without embrittlement, yellowing, or deformation for long-term outdoor operation.

ruijie rg est350 ahmadi

ruijie rg est350 ahmadi

Technical Specifications

Model RG-EST350
Hardware Specifications
Chip QCA9563+QCA9886
RAM/Flash 512MB/8MB
Radio Dual-stream single-band 2×2
Operating Band 802.11a/n/ac: 5.150~5.350GHz, 5.470~5.725GHz , 5.725~5.850GHz (country specific)
Antenna Directional antennas, horizontal: 31°, vertical: 14°, gain: 15 dBi
Bridging Distance 5 km (recommended)
Spatial Streams Two streams
Maximum Throughput Up to 867 Mbps at 5 GHz
Transmit Power ≤100 Mw(20 dBm) (adjustable)
Dimensions 230 mm(D)×132 mm(W)×48 mm(H) (Dimensions per device)
(Same size for the recorder-end and camera-end, H: height of the device edge excluding the mounting kits)
Weight 0.6 kg
Ports
  • Two 10/100/1000Base-T Ethernet ports, supports 24 VDC non-standard PoE power supply
  • One DC port, supports 12 VDC power supply
Hardware Button 1 reset button
Status Indicators
  • System indicator : 1
  • Port indicator : 2
  • Bridge signal strength indicators : 3
Power Supply Support 12 VDC power supply and 24 VDC non-standard PoE power supply
Power Consumption <9W
Environment
  • Operating temperature : -30°C to 65°C
  • Storage temperature : -40°C to 85°C
  • Operating humidity : 5% to 95% (non-condensing)
  • Storage humidity : 5% to 95% (non-condensing
Radio Standard EN300 328, EN301 893
Software Features
Automatic Bridging Support
The recorder-end and camera-end are automatically paired for bridging by default.
One-to-many Bridging One-to-three bridging is recommended for the wireless coverage scope at an angle of 31° to the horizontal.
Device Configuration and Management Support App/Web configuration
QR Code Login Users can log in to the device configuration interface by scanning the QR code of the device using the app.
Self-healing Automatic restart upon equipment failure
Automatic Channel Adjustment Automatically adjust
Installation Wall-mounted/ Pole-mounted (hose clamp is provided)
IP Rating IP65
Lightning Protection 4KV
