Ruijie RG-ES108D Kuwait

Ruijie RG-ES108D Kuwait

The Ruijie RG-ES108D Network Switch Kuwait features a cost-effective unmanaged access switches with metal casing designed for SMEs. The RG-ES100 Series supports plug­ and-play without requiring any configuration.

Description

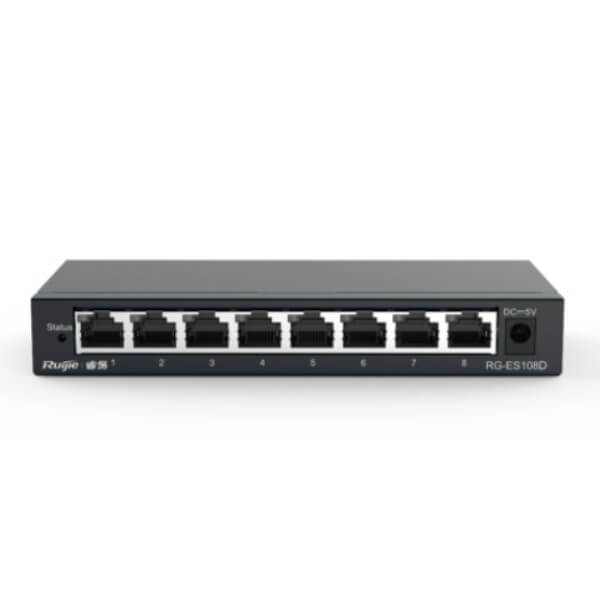

Ruijie Reyee RG-ES108D Network Switch Kuwait

The Ruijie RG-ES108D Kuwait features a cost-effective unmanaged access switches with metal casing designed for SMEs. The RG-ES100 Series supports plug­ and-play without requiring any configuration, which can meet the requirements of various scenarios such as wired, wireless and surveillance networks. Plug and play feature allows you to set up a video surveillance transmission network by only powering on the RG-ES100 Series switches and correctly connecting the switches to IP cameras and digital video recorders (DVRs). Reyee Switch RG-ES108D for Soho Network Solutions is employed in wide applications scenarios. RG-ES100 Series can be used to access the networks, cameras, and video intercom systems in campuses, equipment rooms, factories, office buildings, residential areas, parking lots, and other video surveillance environments.

Key Features

  • Metal Casing
  • The entire casing is made of metal which provides better heat dissipation.
  • Easy to Install
  • The compact size allows easy installation in the ELV box at home or the waterproof surveillance junction box, as it only takes up little space.
  • Enterprise-grade Quality
  • The high-quality 8-core network cable and enterprise-grade components ensure no packet loss or lagging for data transmission.

Plug and Play

Ruijie RG-ES108D Kuwait supports self-adaptive ports and plug-and-play feature with zero configuration. Plug and play feature allows you to set up a video surveillance transmission network by only powering on the RG-ES100 Series switches and correctly connecting the switches to IP cameras and digital video recorders (DVRs)

Easy Addition to Topology

If the Ruijie Cloud management platform is available, Ruijie RG-ES108D users can add to the topology manually or by scanning the QR code to conveniently output a complete topology.

High Selection Standards for Excellent Quality and Stability

The Ruijie RG-ES108D Kuwait is composed of key components selected based on strict requirements, such as the power supply, capacitors, and resistors. In addition, specifications related to lightning protection of the power supply, surge protection of ports, and lifespans of capacitors and resistors are strictly controlled and tested to provide reliable and easy-to-use products for customers.

High-standard Lightning Protection Design for Superb Stability

The RG-ES100 Series provides up to 6 kV lightning protection for ports of PoE switches, and up to 4 kV lightning protection for ports of non-PoE switches. The high-standard lightning protection design can reduce the probability of port damage caused by lightening surge and improve stability of customer networks.

Large Cache for Smooth HD Videos

Based on characteristics of video transmission, the Ruijie RG-ES108D Kuwait employs a large cache to properly handle traffic bursts in video surveillance and avoid video freezing.

Powerful Functions

The Ruijie RG-ES108D Kuwait unmanaged switches support switching among the flow control, port isolation, and normal modes, and support smart PoE and PoE+

Technical Specifications

Model ES108D
Ports 8 10/100Mbps RJ45 ports
Maximum port forwarding rate 100Mbps
AutoMDI/MDIX Support
MAC address 2K
Backplane bandwidth 1.6Gbps
Maximum packet forwarding rate 1.19Mpps
LED indicator
  • Link/Act status LED indicator for each port,
  • Power indicator
Dimensions 160mm*75mm*24mm
Power input / output External 5VDC 1.0A
Maximum power consumption ≤5W
Temperature
  • Operating temperature : 0 ℃ ~ 40 ℃
  • Storage temperature : -40 ℃ ~ 70 ℃
Humidity
  • Operating humidity: 10% ~ 90% non-condensing
  • Storage humidity : 5% ~ 90% non-condensing
