Description

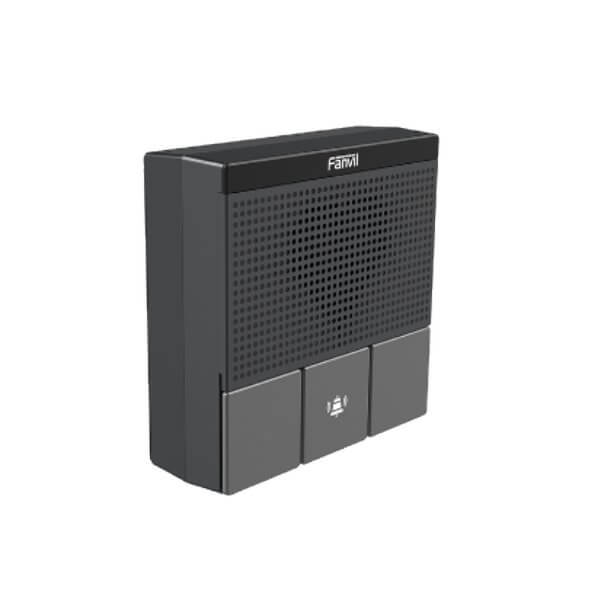

Fanvil A10W-E Kuwait
The Fanvil A10W-E Kuwait SIP mini intercoms epitomize innovation tailored for indoor environments, seamlessly blending security, communication, and broadcasting functionalities into a single, compact device. Embodying a sleek and contemporary design, these intercoms not only serve their intended purposes but also add a touch of modern elegance to any indoor setting they grace. With the capacity to accommodate up to 2 SIP accounts, users are afforded unparalleled flexibility in their communication setups, facilitating seamless coordination and collaboration. The inclusion of three detachable function buttons further enhances usability, allowing for personalized configurations tailored to specific needs and preferences. Moreover, the integration of Power over Ethernet (PoE) technology ensures reliable power supply while simplifying installation by eliminating the need for additional power cables. This streamlined setup not only reduces clutter but also contributes to a more efficient and cost-effective deployment process. Furthermore, the A10 series boasts a myriad of advanced features, including high-definition audio capabilities, ensuring crystal-clear communication in every interaction.
Designed to withstand the rigors of various indoor environments, the A10W-E intercoms boast an IP54 waterproof and dustproof rating, ensuring durability and resilience even in challenging conditions. Additionally, the built-in 2.4G & 5G Wi-Fi connectivity of the A10W-E variant enhances communication capabilities, facilitating seamless integration into existing networks and ensuring superior communication quality.
Highlights
- Features 2 SIP accounts and 3 detachable function buttons
- Built-in 2.4G & 5G Wi-Fi (A10W/A10W-E)
- IP54 waterproof and dustproof
- Support HD audio with codec G.722 and Opus
- Built-in 2W speaker and Acoustic Echo Canceller (AEC)
- Built-in 1 short circuit input/output interface
- Support PoE power supply
- Support standard 86 box embedded (A10-E/A10W-E) and wall mountable(A10/A10W) installation
Features
Generic
- 2 SIP Lines
- Auto answer
- HD Voice
- PoE Enabled
- Built-in 2.4G & 5G Wi-Fi(A10W/A10W-E)
- Intercom function
- External Power Supply (Optional)
Intercom Function
- Support customized DSS keys
- Network Time Synchronization
- Built-in Wi-Fi (A10W/A10W-E)
- 4G, 802.11 b/g/n
- 5G, 802.11 a/n
- Action URL / Active URL
Audio
- Narrow band Codec: G.711a/u, G.729AB, G.723.1, G.726, iLBC
- Wide band Codec: G.722, Opus
- Duplex intercom with Acoustic Echo Canceller (AEC)
- Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive Jitter Buffer
- DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO
Networking
- Physical: 10/100 Mbps Ethernet
- Wi-Fi: 2.4G&5G (A10W/A10W-E)
- IP Mode: IPv4/IPv6/IPv4&IPv6
- IP Configuration: Static / DHCP / PPPoE
- Wi-Fi Encryption: WPA /WPA2-PSK /802.X EAP
- VPN: L2TP / Open VPN
- VLAN
- LLDP
- QoS
Protocols
- 0 over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN
- DHCP
- IPv6
- LLDP
- PPPoE
- L2TP
- OpenVPN
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
Physical Specifications
- A10 Series:3 DSS button；
- Status indicator light: Fast flashing red (registration failed network anomaly) 、Slow flashing green(call)
- 1 RJ45 port
- 1 short circuit input interface
- 1 relay: NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
- Power: DC12V/1A or POE
- Power Consumption (Adapter)：
- 94W~1.98W (A10/A10-E)
- 42W~2.35W (A10W/A10W-E)
- Power Consumption (PoE)：
- 48W~2.37W (A10/A10-E)
- 99W~3.05W (A10W/A10W-E)
- Housing material: ABS
- Installation: Indoor installation
- Standard 86 Box Embedded(A10-E/A10W-E)
- Wall Mountable(A10/A10W)
- Color: Gunmetal
- working temperature: -10 ~50 °C
- Storage temperature: -20 ~ 50 °C
- Relative humidity: 10% – 90%
- Qty/CTN：20 PCS
- W/CTN: 3.41kg
- W/CTN: 3.6kg
- Equipment Dimension:
- 56 x 87.56 x 30mm (Wall Mountable)
- 56 x 87.56 x 21.5mm (86 Box Embedded)
- Packing Dimension: 95x106x40mm
- Outer CTN Dimension: 224x220x210mm (20 PCS)
