Description

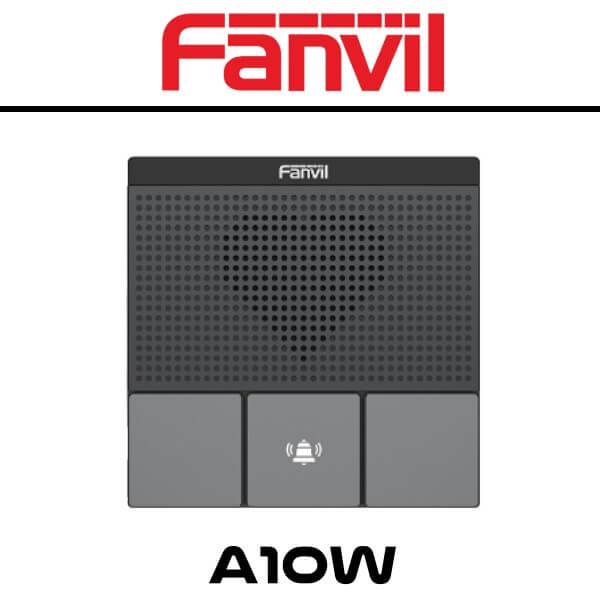

Fanvil A10W Kuwait

The Fanvil A10W Kuwait SIP mini intercoms are versatile solutions catering to the security, communication, and broadcasting needs of indoor environments. Boasting a sleek and modern design, these intercoms are equipped with 2 SIP accounts, providing flexibility in communication setups. Additionally, they feature 3 detachable function buttons, enabling users to customize and streamline their interactions. One of the standout features of the A10 series is its Power over Ethernet (PoE) capability, ensuring reliable power supply without the need for additional cables or adapters. Moreover, the intercoms deliver crystal-clear HD audio quality, ensuring every communication is crisp and intelligible. Designed to withstand the rigors of various indoor settings, the A10 series is IP54 rated, making it resistant to water and dust ingress. This robust build ensures durability and longevity even in challenging environments. For enhanced connectivity, the A10W and A10W-E variants come equipped with built-in 2.4G & 5G Wi-Fi capabilities. This feature expands communication options and facilitates seamless integration into existing networks.

Whether wall-mounted (A10/A10W) or installed in a standard 86 box (A10-E/A10W-E), these intercoms offer versatile deployment options to suit different indoor environments. From office buildings to residential complexes, the Fanvil A10 series provides reliable and feature-rich communication solutions tailored to modern needs.

Highlights

• Features 2 SIP accounts and 3 detachable function buttons
• Built-in 2.4G & 5G Wi-Fi (A10W/A10W-E)
• IP54 waterproof and dust proof
• Support HD audio with codec G.722 and Opus
• Built-in 2W speaker and Acoustic Echo Canceller (AEC)
• Built-in 1 short circuit input/output interface
• Support PoE power supply
• Support standard 86 box embedded (A10-E/A10W-E) and wall mountable(A10/A10W) installation

Features

Generic

• 2 SIP Lines
• Auto answer
• HD Voice
• PoE Enabled
• Built-in 2.4G & 5G Wi-Fi(A10W/A10W-E)
• Intercom function
• External Power Supply (Optional)

Intercom Function

• Support customized DSS keys
• Network Time Synchronization
• Built-in Wi-Fi (A10W/A10W-E)
  • 4G, 802.11 b/g/n
  • 5G, 802.11 a/n
• Action URL / Active URL

Audio

• Narrowband Codec: G.711a/u, G.729AB, G.723.1, G.726, iLBC
• Wideband Codec: G.722, Opus
• Duplex intercom with Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

• Physical: 10/100 Mbps Ethernet
• Wi-Fi: 2.4G&5G (A10W/A10W-E)
• IP Mode: IPv4/IPv6/IPv4&IPv6
• IP Configuration: Static / DHCP / PPPoE
• Wi-Fi Encryption: WPA /WPA2-PSK /802.X EAP
• VPN: L2TP / Open VPN
• VLAN
• LLDP
• QoS

Protocols

• 0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• A10 Series:3 DSS button；
• Status indicator light: Fast flashing red (registration failed network anomaly) 、Slow flashing green(call)
• 1 RJ45 port
• 1 short circuit input interface
• 1 relay: NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
• Power: DC12V/1A or POE
• Power Consumption (Adapter)：
  • 94W~1.98W (A10/A10-E)
  • 42W~2.35W (A10W/A10W-E)
• Power Consumption (PoE)：
• 48W~2.37W (A10/A10-E)
• 99W~3.05W (A10W/A10W-E)
• Housing material: ABS
• Installation: Indoor installation
  • Standard 86 Box Embedded(A10-E/A10W-E)
  • Wall Mountable(A10/A10W)
• Color: Gunmetal
• working temperature: -10 ~50 °C
• Storage temperature: -20 ~ 50 °C
• Relative humidity: 10% – 90%
• Qty/CTN：20 PCS
• W/CTN: 3.41kg
• W/CTN: 3.6kg
• Equipment Dimension:
  • 56 x 87.56 x 30mm (Wall Mountable)
  • 56 x 87.56 x 21.5mm (86 Box Embedded)
• Packing Dimension: 95x106x40mm
• Outer CTN Dimension: 224x220x210mm (20 PCS)
