Ruijie RG-EW3200GXPRO Kuwait supports various local and remote management platform, such as Web, Ruijie Cloud App. This wireless router also provides multiple home-care-based function.

Description

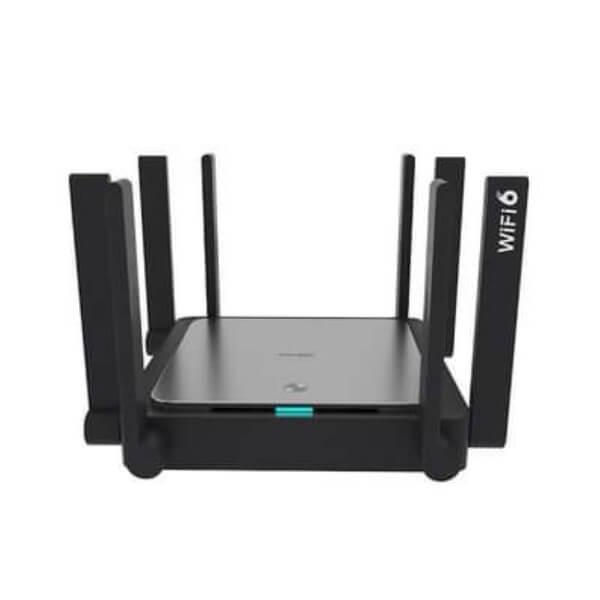

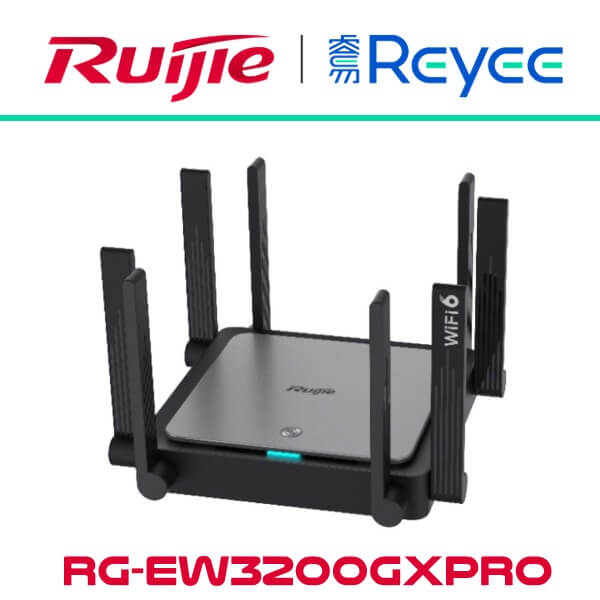

Ruijie RG-EW3200GXPRO Wireless Router Kuwait

Ruijie RG-EW3200GXPRO Kuwait is a Gigabit dual-band Wi-Fi 6 mesh router designed for use in large flat space, villas, small shops, SOHO, and other scenarios. It is designed to meet the needs of high quality next-generation Wi-Fi services. In addition, this router is equipped with four independent power amplifiers for intensifying signal strength. The signals from this router can cover a doubled distance compared with those from previous routers.

RG-EW3200GX PRO provides one 10/100/1000Mbps WAN ports and four 10/100/1000Mbps LAN ports, with the maximum access bandwidth of 1000Mbps. The Ruijie RG-EW3200GXPRO Kuwait supports the new-generation Wi-Fi 6 standard at both 2.4 GHz and 5 GHz. The maximum wireless rate is 800Mbps at 2.4 GHz, 2400Mbps at 5 GHz, and reach 3200Mbps in concurrent rate. The recommended access number of wireless terminals is up to 48, which is 50% more than the number supported by Wi-Fi 5.

Ruijie Reyee Mesh technology enables quickly connection between multiple routers without cable or configurations. In this way, Wi-Fi signals can cover the entire large flat floors, complex units, duplexes, and villas. In addition, support hybrid mesh networking with whole EW Series home routers family. The RF adjustment algorithm applied to millions of Ruijie enterprise-grade access points (APs) can provide seamless roaming devices. Users can move around the Wi-Fi coverage area without service interruption.

Ruijie RG-EW3200GXPRO Kuwait supports various local and remote management platform, such as Web, Ruijie Cloud App. This wireless router also provides multiple home-care-based function, including the Parental Control Mode, Health Mode, Xpress Mode, and exclusive designed for Smart Life Kit System, meeting the needs of all household scenarios.

Technical Specs

Model

RG-EW3200GX PRO

Wireless Parameters

  • 2.4 GHz, 4×4, maximum rate of 800Mbps
  • 5 GHz, 4×4, maximum rate of 2400Mbps
8 external non-detachable omnidirectional antennes
802.11a/b/g/n/ac/ax and DL/UL MU-MIMO
Independent 2.4 GHz and 5 GHz modules and dual-band mode
Wi-Fi channel :

  • 2.4GHz : 2.4G~2.4835GHz
  • 5GHz :5.150~5.250GHz,5.250~5.350H,5.470~5.725GH,5.725~5.850GHz
Beamforming, OFDMA, and BSS color technologies

Ports

One 10/100/1000M WAN port (Auto MDI/MDIX)
Four 10/100/1000M LAN ports (Auto MDI/MDIX)

Buttons

One Reyee Mesh button (front)
One system reset button (rear)
One power On/OFF button

Indicator

One Reyee Mesh LED indicator
One system LED indicator

Physical

Dimensions (W × D × H) : 190 mm × 190 mm × 41 mm (antennas not included)
Weight : 1.3 kg (packages not included)

Power Supply

Power specifications : DC 12 V, 2A
Maximum power : < 24 W

Certification

CE

Operating Environment

  • Operating temperature : –10℃ to +45℃
  • Storage temperature : –40℃ to +70℃
  • Operating humidity : 5% to 95% (non-condensing)
  • Storage humidity : 5% to 95% (non-condensing)

Software Specifications

Model

RG-EW3200GX PRO

Main features

  • PPPoE, DHCP, static IP address for network connection
  • Acquisition of PPPoE accounts from old routers
  • Dual-band mode
  • Priority to 5G
  • Wireless Transmission Power adjustment
  • Automatic channel adjustment
  • Guest Wi-Fi
  • Rate limiting for terminal IP addresses
  • Static DHCP address
  • Virtual server
  • DDNS
  • DMZ
  • UPnP

Network security

  • WPA-PSK/WPA2-PSK encryption
  • SSID hiding
  • Wi-Fi squatter prevention (Blacklist)
  • Network access control
  • IP & MAC Binding
  • Firewall

Advanced features

  • Reyee Mesh : Supported by EW Series Routers. Enables Mix & Match, Self-Healing, One-click mesh, etc;
  • Wireless roaming;
  • Hardware NAT;
  • One-click network optimization;
  • Issue diagnosis;
  • Remote maintenance on the cloud;
  • Auto and manual software upgrade on the cloud;
  • Silent upgrade of cloud software;
  • Parent Control (base on time limit、MAC limit)

Management modes

  • Local web pages (support PC and mobile terminal)
  • Ruijie Cloud App : iOS edition and Android edition
