Description

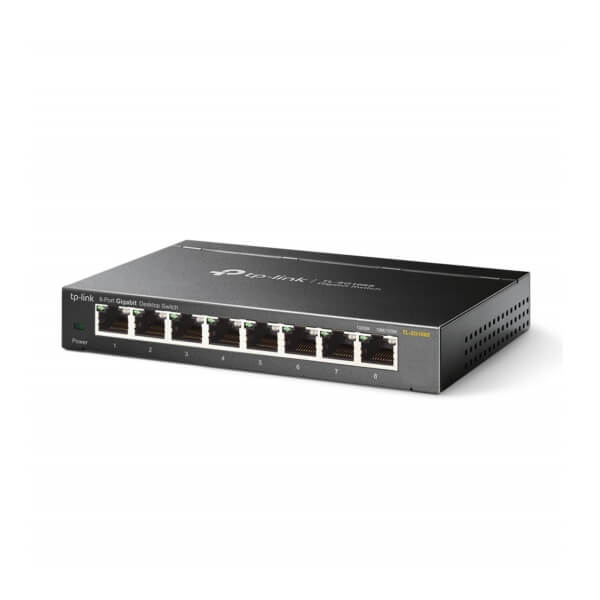

Tplink TL-SG108S Kuwait
The Tplink TL-SG108S Kuwait is an 8-Port Gigabit Desktop Switch designed for seamless Gigabit Ethernet integration. This switch streamlines the process of enhancing your network server and backbone connections, effortlessly transforming a standard Gigabit setup into a desktop-ready configuration. The Tplink TL-SG108S Kuwait boasts a user-friendly plug-and-play functionality, eliminating the need for extensive configurations. Additionally, its power-efficient design minimizes energy consumption, making it a certified eco-friendly solution for both home and office networks.
Quick Features :
- 8x 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Green Ethernet technology saves power consumption
- IEEE 802.3x flow control provides reliable data transfer
- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS and IGMP Snooping function
- Plug and play, no configuration needed
Technical Details
| HARDWARE FEATURES | |
| STANDARDS AND PROTOCOLS | IEEE 802.3i / 802.3u / 802.3ab/ 802.3x /802.1p |
| INTERFACE | 8 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
| FAN QUANTITY | Fanless |
| POWER CONSUMPTION | Maximum : 3.31W (220V/50Hz) |
| EXTERNAL POWER SUPPLY | External Power Adapter (Output : 9VDC / 0.6A) |
| BUFFER SIZE | 1.5Mb |
| LED INDICATOR | System Power
Link/Act indicators per port built into each RJ-45 port |
| DIMENSIONS ( W X D X H ) | 6.2 x 4.0 x 1.0 in. (158 x 101 x 25 mm) |
| PERFORMANCE | |
| PACKET FORWARDING RATE | 11.9Mpps |
| MAC ADDRESS TABLE | 4K |
| PACKET BUFFER MEMORY | 1.5Mb |
| JUMBO FRAME | 16KB |
| SOFTWARE FEATURES | |
| ADVANCED FEATURES | Green Technology, saving power up to 82%
802.3X Flow Control 802.1p/DSCP QoS IGMP Snooping |
| TRANSFER METHOD | Store and Forward |
| OTHERS | |
| CERTIFICATION | CE, FCC ,RoHS |
| PACKAGE CONTENTS | 8-Port 10/100/1000Mbps Desktop Switch
Power Adapter Installation Guide Rubber Feet |
| ENVIRONMENT | Operating Temperature : 0°C~40°C (32°F~104°F)
Storage Temperature : -40°C~70°C (-40°F~158°F) Operating Humidity : 10% ~ 90%, non-condensing Storage Humidity : 5%~90% non-condensing |
