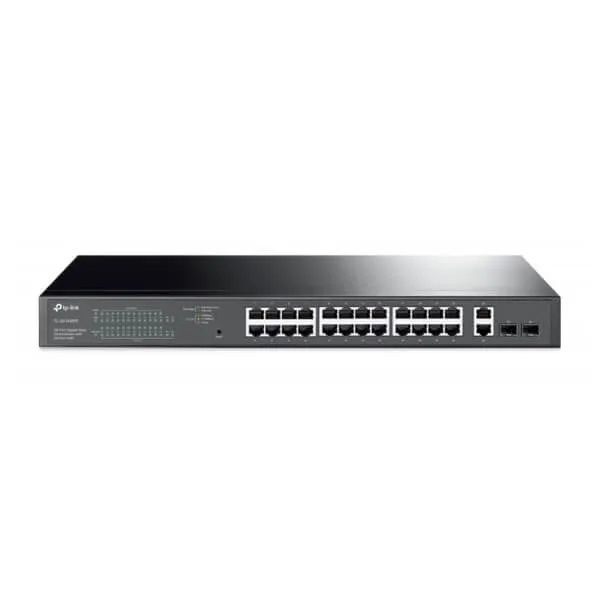

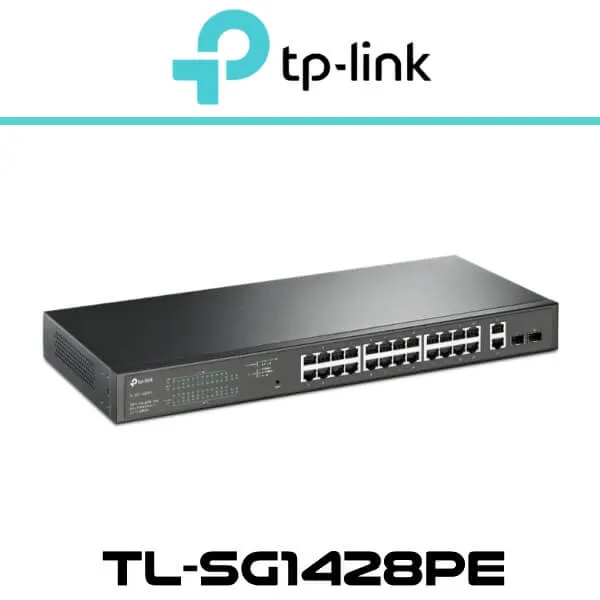

Tplink TL-SG1428PE Kuwait

Tplink TL-SG1428PE Kuwait

The Tplink TL-SG1428PE Kuwait boasts full compatibility with PoE devices such as IP cameras, access points, and IP phones. Additionally, it seamlessly accommodates non-PoE wired devices, delivering gigabit connections for devices like pc.

Category:

Description

Tplink TL-SG1428PE Kuwait

The Tplink TL-SG1428PE Kuwait offers full compatibility with PoE devices, including IP cameras, access points, and IP phones. Moreover, it seamlessly supports gigabit connections for non-PoE wired devices, such as PCs, printers, and IPTV equipment.

Key Features:

Versatile Application Scenarios:

  • The Tplink TL-SG1428PE Kuwait boasts full compatibility with PoE devices such as IP cameras, access points, and IP phones. Additionally, it seamlessly accommodates non-PoE wired devices, delivering gigabit connections for devices like PCs, printers, and IPTV equipment.

Dedicated 24 PoE+ Ports (250W Budget) for Diverse Applications:

  • Compliant with the 802.3af/at PoE+ standard, supporting up to 30W on each PoE port.
  • The total PoE power budget of 250W across the 24 gigabit PoE+ ports opens up a wide array of applications. This switch is suitable for use in surveillance, office setups, dormitories, and small businesses, offering compatibility with a range of devices including IP cameras, access points, IP phones, computers, and printers.

Lag-Free Experience with QoS:

  • Ensure seamless traffic flow for latency-sensitive applications like voice and video.

Multicast Optimization with IGMP Snooping:

  • Enhance network performance, especially for applications like IPTV, by optimizing the delivery of multimedia traffic.

Enhanced Security with VLAN:

  • Create a more secure network with improved overall performance by segmenting it into smaller groups.

Effortless Network Management:

  • Tplink TL-SG1428PE Kuwait provides comprehensive network monitoring capabilities, allowing users to observe traffic behavior.
  • Its user-friendly web-based interface and management utility offer valuable features, including network monitoring, traffic prioritization, and enhanced Quality of Service (QoS).

System Self-Healing with PoE Auto Recovery:

  • The switch automatically detects and reboots PD devices like cameras and APs if they go offline or become unresponsive. This ensures the stable operation of PoE-connected devices without manual monitoring and restarts.

Intelligent Power Management to Prevent Overload:

  • The switch automatically cuts power to lower-priority ports when the total PoE power consumption exceeds 250W, safeguarding high-priority ports from power overload.

Comprehensive Compatibility with PD Detection:

  • Automatically identifies the required PoE power for your device, protecting your non-PoE equipment from potential damage.

Wide Operating Temperature and Efficient Heat Dissipation:

  • The switch’s durable metal casing and professional heat dissipation design ensure it operates reliably in a wide temperature range (0–50℃).

Technical Specifications

HARDWARE FEATURES
Standards and Protocols
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
  • IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface
  • 26 10/100/1000 Mbps RJ45 Ports
  • 2 Gigabit SFP Ports
Network Media
  • 10BASE-T : UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX : UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T : UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-X MMF, SMF
Fan Quantity 2 Fans
Physical Security Lock Yes
Power Supply 100-240V AC, 50/60 Hz
PoE+ Ports(RJ45)
  • Standard : 802.3at/802.3af compliant
  • PoE+ Ports : 24 Ports
  • Power Supply : 250 W
Dimensions ( W x D x H ) 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
Mounting Rack Mountable
Max Power Consumption
  • 27 W (220/50Hz. no PD connected)
  • 304.7 W (220/50Hz. with 250 W PD connected)
Max Heat Dissipation
  • 92.07 BTU/h (no PD connected)
  • 1039.03 BTU/h (with 250 W PD connected)
PERFORMANCE
Switching Capacity 56 Gbps
Packet Forwarding Rate 41.7 Mbps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service
  • Support Port-based 802.1p/DSCP priority
  • Support 4 priority queues
  • Rate Limit
  • Storm Control
L2 Features
  • IGMP Snooping V1/V2/V3
  • Static Link Aggregation
  • Port Mirroring
  • Cable Diagnostics
  • Loop Prevention
  • PoE Auto Recovery
VLAN
  • Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
  • MTU/Port/Tag VLAN
Management
  • Web-Based GUI
  • Easy Smart Configuration Utility
Transmission Method Store-And-Forward
OTHERS
Certification CE, FCC, RoHS
Package Contents
  • TL-SG1428PE
  • Power Cord
  • Installation Guide
  • Rackmount Kit
  • Rubber Feet
Environment
  • Operating Temperature : 0°C~50°C (32°F~122°F)
  • Storage Temperature : -40°C~70°C (-40°F~158°F)
  • Operating Humidity : 10% ~ 90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
