Tplink TL-SG1210P Kuwait

Tplink TL-SG1210P Kuwait

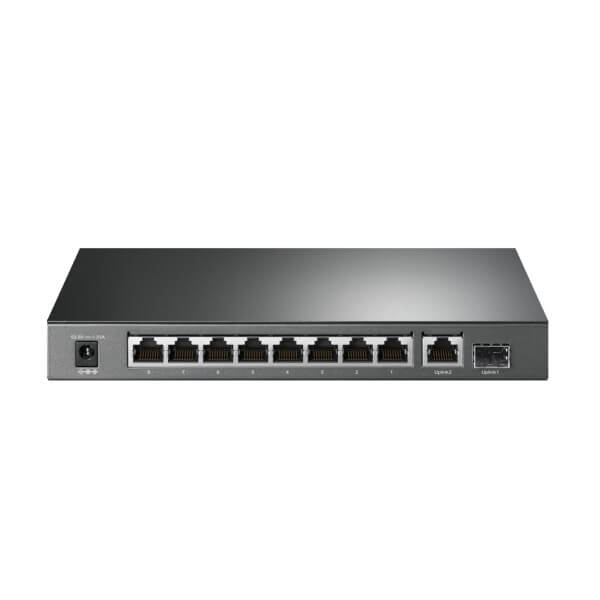

The Tplink TL-SG1210P Kuwait offers nine 10/100/1000Mbps RJ45 ports and one Gigabit SFP port. Ports 1 through 8 are designed to support IEEE 802.3af/at compliant PDs, providing up to 30W of power for each PoE port and a total PoE power.

Category:

Description

Tplink TL-SG1210P Kuwait

The Tplink TL-SG1210P Kuwait offers nine 10/100/1000Mbps RJ45 ports and one Gigabit SFP port. Ports 1 through 8 are designed to support IEEE 802.3af/at compliant PDs, providing up to 30W of power for each PoE port and a total PoE power budget of 63W*. With its desktop design, the Tplink TL-SG1210P Kuwait is an unmanaged switch known for its excellent performance and quality. It’s an excellent choice for expanding your home or office network.

Key Features:

Power over Ethernet (PoE):

  • The Tplink TL-SG1210P Kuwait features PoE support on Ports 1-8, enabling them to automatically detect and provide power to IEEE 802.3af/at compliant Powered Devices (PDs).

Intelligent Power Management:

  • With a power budget of 63W, the intelligent power management system steps in when total power consumption exceeds this limit. It prioritizes high-priority port power, safeguarding devices from potential power overload by cutting off power to lower-priority ports.

Robust Metal Casing:

  • The switch boasts a durable and compact metal casing, offering flexibility for desktop or wall-mounted installations in various environments. Its fanless design ensures quiet operation, enhancing user experience.

Quality of Service (QoS) for Seamless Online Experience:

  • Administrators have the ability to prioritize traffic based on QoS. This ensures that applications like voice and video maintain clear, uninterrupted performance, eliminating lag.

IGMP Snooping for IPTV Traffic Optimization:

  • The Tplink TL-SG1210P Kuwait features IGMP Snooping, which optimizes the delivery of multimedia traffic. This is particularly beneficial for enhancing network performance when using applications like IPTV.

Technical Specifications

HARDWARE FEATURES
Interface 8 PoE+ 10/100/1000Mbps RJ45 Ports

1 10/100/1000Mbps RJ45 Port

1 Gigabit SFP Slot

Network Media 10BASE-T : UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX : UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T : UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-X MMF, SMF

Fan Quantity Fanless
Physical Security Lock Yes
Power Supply External Power Adapter(Output : 53.5VDC / 1.31A)
Backup Bandwidth 20 Gbps
PoE+ Ports(RJ45) Standard : 802.3at/802.3af compliant

PoE Ports : Port1- Port 8

PoE Power Budget : 63W

Mac Address Table 4K
Dimensions ( W x D x H ) 209 × 126 × 26 mm
Max Power Consumption 7.11 W (220/50Hz. no PD connected)

78.13 W (220/50Hz. with 63W PD connected)

Max Heat Dissipation 24.25 BTU/h (no PD connected)

266.42 BTU/h (with 63W PD connected)

SOFTWARE FEATURES
Advanced Features Compatible With IEEE 802.3af/at Compliant PDs

EEE802.3x Flow Control

802.1p/DSCP QoS

IGMP Snooping

Transmission Method Store-And-Forward
OTHERS
Certification CE, FCC, RoHS
Package Contents TL-SG1210P, Power Adapter, Installation Guide
Environment ·         Operating Temperature : 0°C~40°C (32°F~104°F)

·         Storage Temperature : -40°C~70°C (-40°F~158°F)

·         Operating Humidity : 10% ~ 90% non-condensing

·         Storage Humidity : 5%~90% non-condensing
