Tplink EAP615-Wall Kuwait

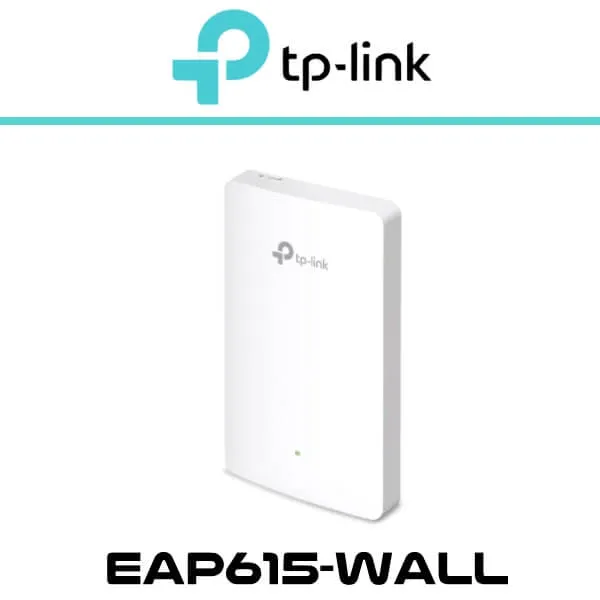

The Tplink EAP615-Wall Kuwait presents an excellent space-efficient networking solution tailored for versatile workspaces, conference rooms, or even hotel suites. This compact wall-mounted access point (AP) combines affordability with dual-band Wi-Fi 6 capabilities, featuring three downlink Gigabit Ethernet ports. Notably, one of these ports supports pass-through Power over Ethernet for devices such as IP phones.

The Tplink EAP615-Wall Kuwait boasts a sleek and compact design, measuring a mere 20mm in thickness, constructed from robust high-impact plastic. Its primary Ethernet connector is positioned at the rear, and the package includes a metal baseplate for secure attachment over a wall port, ensuring a secure and stable installation.

Functioning as an AX1800 dual-band wireless AP, the Tplink EAP615-Wall Kuwait offers claimed speeds of up to 1,201Mbits/sec on its 5GHz radio and 574Mbits/sec on the 2.4GHz band. While it can be deployed and managed in standalone mode, for most scenarios, utilizing TP-Link’s complimentary Omada cloud service proves more advantageous. This service empowers you to oversee multiple APs effortlessly from a unified portal.

Features

Bottom of Form

  • Superior WiFi 6 Speeds : Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
  • High-Performance Connectivity : Guarantee higher network efficiency and lower latency.
  • Four Gigabit Ports : 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired device.
  • Centralized Management : Integrates into Omada SDN for cloud access and remote management.
  • Secure Guest Network : Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
  • Easy Installation and PoE Support : Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.

Specifications :

HARDWARE FEATURES
Interface Uplink : 1× 10/100/1000 Mbps Ethernet Port
Downlink : 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.)
Physical Security Lock Yes
Button Reset
Power Supply 802.3af/at PoE
Power Consumption
  • EU : 10W (802.3at PoE, PoE Out off)
  • US : 11.5W (802.3at PoE, PoE Out off)
Dimensions 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)
Antenna 2 Dual-Band Antennas

  • 2.4 GHz : 2× 3 dBi
  • 5 GHz : 2× 4 dBi
Mounting Wall Plate Mounting
WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate
  • 5 GHz : Up to 1201 Mbps
  • 2.4 GHz : Up to 574 Mbps
Wireless Functions
  • 16 SSIDs (Up to 8 SSIDs on each band)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS(WMM)
  • Seamless Roaming†
  • Beamforming
  • MU-MIMO
  • Rate Limit
  • Load Balance
  • Airtime Fairness
  • Band Steering
  • Reboot Schedule
  • Wireless Schedule
  • RADIUS Accounting
  • MAC Authentication
  • Wireless Statistics
  • Static IP/Dynamic IP
Wireless Security
  • Captive Portal Authentication†
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • VLAN
  • Rogue AP Detection
  • 802.1X Support
  • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power CE :

  • < 20 dBm (2.4 GHz, EIRP)
  • < 23 dBm (5 GHz, EIRP)FCC :
  • < 21 dBm (2.4 GHz)
  • < 21 dBm (5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
Cloud Access Yes (Through OC300, OC200, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification CE, FCC, RoHS
Package Contents
  • AX1800 Wall Plate WiFi 6 Access Point EAP615-Wall
  • Installation Guide
  • Mounting Kits
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment
  • Operating Temperature : 0–40 ℃ (32–104 ℉)
  • Storage Temperature : -40–70 ℃ (-40–158 ℉)
  • Operating Humidity : 10–90% RH non-condensing
  • Storage Humidity : 5–90% RH non-condensing
