Description

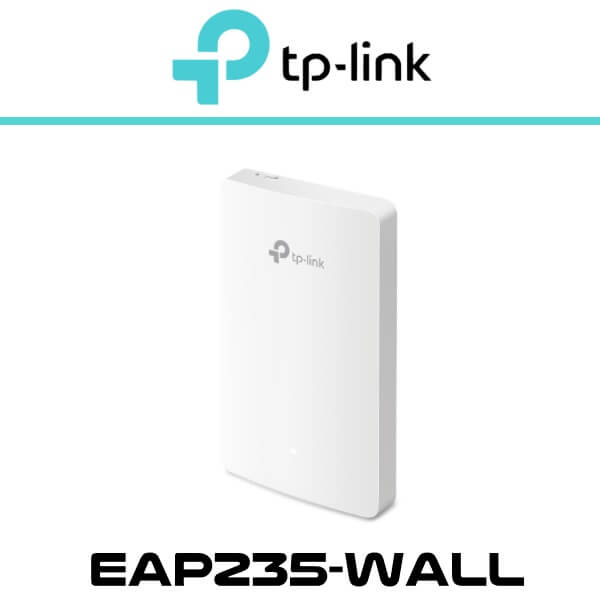

Tplink EAP235-Wall Kuwait
The Tplink EAP235-Wall Kuwait stands as an Omada wireless MU-MIMO access point, signifying its compatibility with the Omada system, offering convenient control through the Omada app. To ensure a clear separation between your work and personal networks, setting up a guest network is a breeze, eliminating the need for additional network cabling.
Moreover, the Tplink EAP235-Wall Kuwait access point supports Power over Ethernet (PoE) and provides three Ethernet ports for connecting devices like IP phones or IP cameras. It’s essential to note that this access point exclusively functions with Power over Ethernet, necessitating the use of a PoE adapter or a suitable PoE-enabled switch for operation.
Features
- Fast Dual-Band Wi-Fi : Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.
- Four Gigabit Ports : 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired device.
- Integrated into Omada SDN : Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management : Cloud access and Omada app for ultra convenience and easy management.
- Elegant Appearance : Ultra slimmest and conspicuous design blends into hotel rooms, hospitals, offices, dormitories and any other environments.
- Easy Installation and PoE Support : Easy-mount construction, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.
- Secure Guest Network : Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
- Advanced Wireless Tech : Optimize network performance with MU-MIMO, Band Steering, and Beamforming technologies.
Technical Specifications
| HARDWARE FEATURES | |
| Interface | Uplink : 1× 10/100/1000 Mbps Ethernet Port Downlink : 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13 W.) |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3af/802.3at PoE |
| Power Consumption | 9.8 watts /24.4 watts (PoE Out Included) |
| Dimensions | 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in) |
| Antenna | 2 Dual-Band Antennas
|
| Mounting | Wall Plate Mounting |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11a/b/g/n/ac |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 5 GHz : Up to 867 Mbps 2.4 GHz : Up to 300 Mbps |
| Wireless Functions |
|
| Wireless Security |
|
| Transmission Power | CE :
|
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management |
|
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents |
|
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Environment |
|
