Description
Tplink CPE610 Kuwait

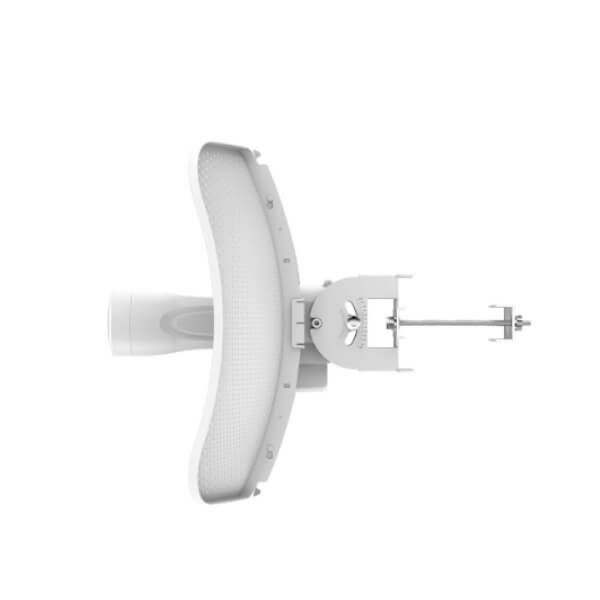

The Tplink CPE610 Kuwait, a powerful 5GHz outdoor CPE access point with Dual Polarized Directional Antennas, designed to enhance your wireless network. Equipped with two antennas, it delivers lightning-fast data transfer speeds of up to 300Mbps and boasts an impressive 23dBi gain. This high-quality access point combines top-notch performance with an affordable price point, making it a standout choice.
Operating in the frequency range of 5.15-5.85 GHz, the CPE610 can withstand temperatures from 0 to 40 degrees Celsius and operates efficiently in humidity levels ranging from 10% to 90% (non-condensing).
Features
2×2 MIMO MAXtream TDMA :
23dBi directional antenna and professional structural stability for long-distance outdoor Wi-Fi transmission
Professional-standard 23dBi Directional Antenna for Long-range Wireless Transmission :
With 23dBi high-gain directional 2×2 MIMO Casse grain antenna and dedicated metal reflector, the Tplink CPE610 Kuwait provides excellent beam directivity, improved latency and noise immunity. Professional performance, coupled with user-friendly design, makes the 5GHz 300Mbps1 23dBi Outdoor CPE610 an ideal choice and cost effective solution for outdoor wireless networking applications.
Stable Structural Design and Flexible Installation :
Snap-lock parts make assembly simple and convenient. Pole mount kits and the freedom of three-axis alignment facilitate flexible installation. Sturdy design of the Tplink CPE610 Kuwait ensures stability in windy conditions.
Compact and Lightweight Packaging :
Small and lightweight boxes benefit shipping, logistics and retail.
TECHNICAL SPECIFICATIONS
| Brand | TP-Link |
| Wireless | Wireless : IEEE 802.11a/n |
| Configuration | Network : WAN : Static, Dynamic, PPPoE, L2TP, PPTP
LAN : Static, Dynamic, DHCP Forwarding : ALG, UPnP, Virtual Server, Port Trigger Security : SPI Firewall, Ping Forbidden, DoS Protection, Access Control & Static Routing Bandwidth Control, IP & MAC Binding & Wireless : Pharos Maxterm TDMA Technology Selectable Channel Width : 5, 10, 20, 40 MHz, Auto Channel Selection & Transmit Power Control Dynamic Frequency Selection WDS Enable, Disable, Security : WPA, WPA2, WPA-PSK, WPA2-PSK Encryption 64, 128, 152-bit WEP Encryption & SSID Broadcast Enable, Disable Multi-SSID with VLAN Tagging Distance, ACK Timeout Setting & Wireless MAC Address Filter Wireless Advanced & Beacon Interval, RTS Threshold, Fragmentation Threshold, DTIM Interval, AP Isolation, Short GI, Wi-Fi Multimedia |
| Memory | 64 MB DDR2 RAM & 8 MB Flash |
| Enclosure | Material : Outdoor PC Stabilized Plastic & Weatherproof : IP65 Water & Dust Proof Design |
| System | Tools : Wireless Signal Quality Indicators, Signal Strength, Noise, Transmit CCQ, CPU, Memory, Monitors : Throughput, Stations, Interfaces, ARP, Routes, WAN, DHCP, Spectrum Analyzer, Speed Test, Ping & Traceroute |
| Suitable For | Outdoor |
| Power Supply | Passive Power over Ethernet via LAN
16-27 V DC |
| Colour | Power Status LEDs : Green |
| Input | 100-240 V AC & 50-60 Hz |
| Package Contents | Outdoor Wireless CPE
24 V 0.5 Amp Passive POE Adapter Pole Mounting Straps AC Power Cord & Installation Guide |
| Efficiency | >84.29% |
| System Requirements | Windows : 98SE, NT, 2000, XP, Vista or Windows 10, Windows 8, Windows 7, MAC OS, NetWare & UNIX or Linux |
| Output | 24 V DC, 0.5 Amp Max & +4, 5 Pins & -7, 8 Pins |
| Power Transmission | Max. 25 dBm |
| Protocol | Proprietary : TDMA Mode |
| Protection | 15 kV ESD Protection & 6 kV Lightning Protection |
| Item Code | CPE610 |
| Storage Temperature | -40 to 70°C |
| Operating Temperature | 0 to 40°C |
| Speed | Wireless :
Upto 300 Mbps Upto 144.4 Mbps Upto 72.2 Mbps & Upto 36.1 Mbps |
| Storage Humidity | 5-90% (Non-Condensing) |
| Warranty | 3 Years Warranty |
| Dimensions | 366x280x207 mm
POE Adapter : 85.8×43.9×29.7 mm |
| Remote Management Protocol | Discovery & Remote Management via Pharos Control application, HTTP/HTTPS Web-Based Management, System Log, SNMP Agent, Ping Watch Dog, Dynamic DDNS & SSH Server |
| Processor | Qualcomm 560MHz CPU & MIPS 74KC |
| Certification | CE, FCC, UL, IC, GS, PSB, C-tick, SAA, S-Mark & KC-mark
CE, FCC, IC, RoHS & IP65 |
| Number of Buttons | Remote Reset Button |
| Antenna Type | Gain : 23 dBi & Beamwidth : 9°Azimuth, 7°Elevation |
| Operating Humidity | 10-90% (Non-Condensing) |
