AVer PTC310 Kuwait

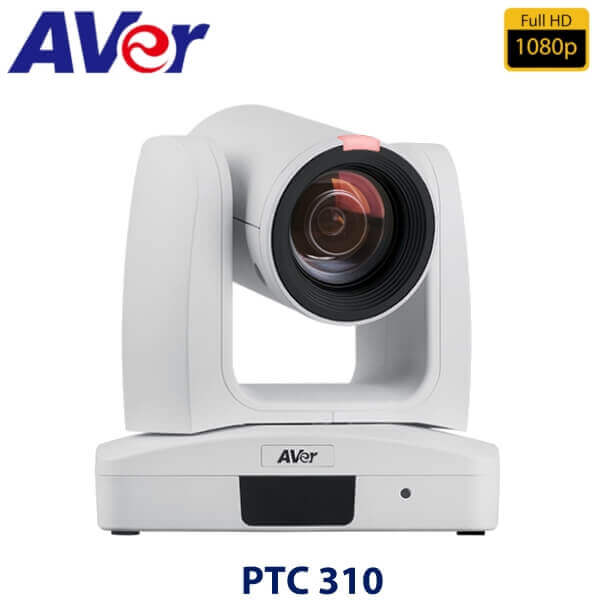

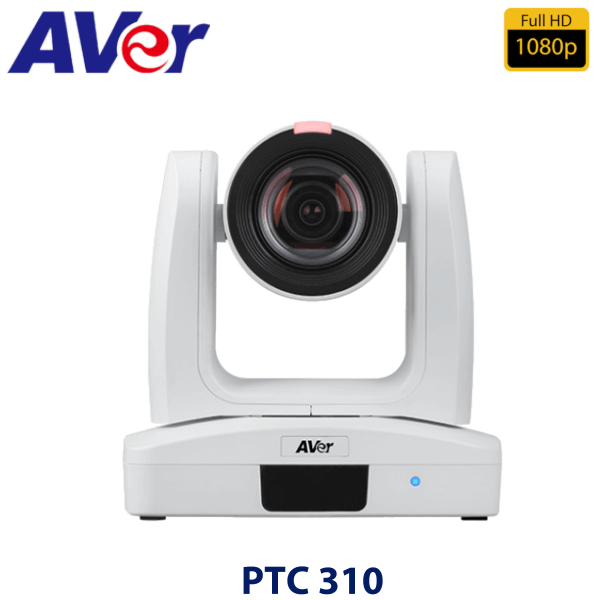

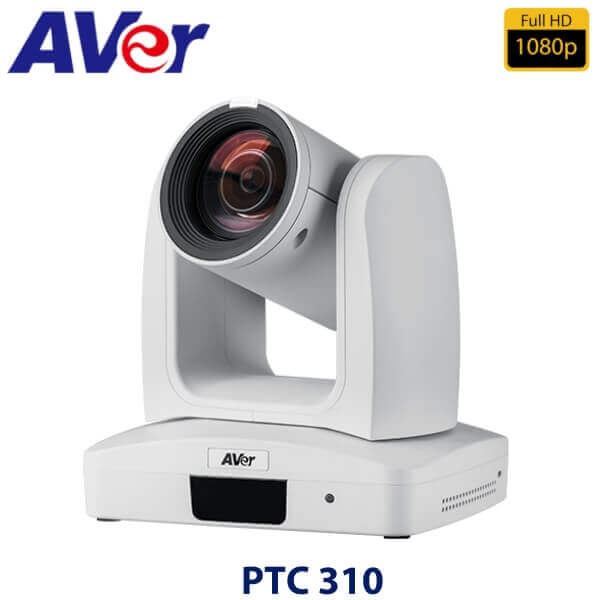

The technologically advanced AVer PTC310 conference camera comes with a pre-installed Human Detection Artificial Intelligence system that easily detects and captures human forms and moving objects. This way, you don’t miss targets whilst tracking. The AVer PTC310 Dubai enables you to redirect focus by clicking on a target to quickly adjust the shooting angle and start the tracking process. All this has been made easy as you can operate through the remote control or Web UI.
AVer PTC310 Features :
- High Definition Video
- The AVer PTC310 auto-tracking camera has an Ultra High Definition resolution of 1080p for enhanced image clarity. It also onboards a Sony sensor whose excellent performance ensures that you enjoy high-quality video during your productions.
- Zooming Performance
- The AVer PTC310 has a zooming power of up to 24× (12× optical zoom and 2× sensor zoom). Even when the camera is panning and tilting, it works efficiently to allow you to highlight content and randomly change shooting angles. The AVer PTC310 has been designed to let you enjoy clear video content, even from close up, without experiencing motion blurs or pixilation.
Why the Aver PTC310?
- The camera’s presenter mode enables you to easily track targets everywhere. As the main presenter at the meeting, you do not have to stand or sit at one point all through your presentation. You can move around and interact with the audience while being continuously tracked by the AVer PTC310. The camera focuses on its target, ignoring other distractions during presentations.
- Its Zone Mode improves your ability to capture content on multiple displays. It gives you an option to create up to four content zones, capturing the content on display instead of the presenter’s movements.
AVer PTC310 Specifications :
| Image sensor | 1/ 2.8″ 1080p
Exmor CMOS |
| Effective Picture Elements | 2 megapixels |
| Output Resolutions | – 1080p/60, 1080p/59.94,1080p/50,1080p/30
– 1080p/29.97,1080p/25,1080i/60 – 1080i/50,720p/60,720p/59.94,720p/50 |
| Minimum Illuminations | 0.4 lux (IRE50, F 1.6, 30fps) |
| S/N Ratio | ≥50dB |
| Gain | Auto, manual |
| TV Line | 900 (center) |
| Shutter Speed | 1/1 to 1/32000 sec |
| Exposure Control | Auto, Manual, Priority AE (Shutter, Iris), BLC, WDR |
| White Balance | Auto, Manual |
| Optical Zoom | 12× |
| Digital Zoom | 12× |
| Sensor Zoom | 2× |
| Viewing Angles | DFOV: 78°(Wide) to 7°(Tele)
HFOV: 70° (Wide) to 6° (Tele) VFOV: 42° (Wide) to 3°(Tele) |
| Focal Length | f = 3.9mm (Wide) to 46.8mm (Tele) |
| Aperture (Iris) | F = 1.6mm (Wide) to 2.8 (Tele) |
| Minimum Working Distance | 0.3m (Wide), 1.5m (Tele) |
| Pan/Tilt Angles | Pan: ±170°
Tilt: 90°/-30° |
| Pan/Tilt Speed (Manual) | Pan: 0.1° to 100°/sec
Tilt: 0.1° to 100°/sec |
| Preset Speed | Pan: 200°/sec
Tilt: 200°/sec |
| Preset Positions | 10 (IR), 256(RS -232) |
| Camera Control – Interfaces | RS -232 (DIN8), RS – 422(RJ45), IP |
| Camera Control – Protocols | VISCA, PELCO – D (RS -232/RS – 422/IP), CGI (IP) |
| Image Processing | Noise Reduction (2D/3D), Flip, Mirror |
| Power Frequencies | 50Hz, 60 Hz |
| Tracking modes | Presenter Mode, Zone Mode |
| Channel | 2 channel (Stereo) |
| Codecs | AAC – LC (48/44.1/32/24K), G.711, PCM (8K) |
| Sample Rates | 48/44.1/32/24/16/8kHz |
| Video Outputs | 3G – SDI, HDMI, IP, USB |
| Audio Outputs | 3G – SDI, HDMI, IP, USB |
| Audio Inputs | MIC in, Line in |
| Power Requirement | AC100V – AC240V to DC12V/5A |
| Power consumption | 18W |
| PoE | PoE |
| Dimensions (W × H × D) | 180.0× 183.5 × 145.0mm |
| Net Weight | 1.7(±0.1) kg |
| Application | Indoor |
| Tally Lamp | Yes |
| Security | Kensington slot |
| Remote Control | Infrared |
| Operating Conditions | Temperature: 0° to 40°C
Humidity: 20% to 80% |
| Storage Conditions | Temperature: -20° to 60°C
Humidity: 20% to 95% |
| Resolution | 1080p 60fps |
| Network Video Compress formats | H.264, H.265 MJPEG |
| Maximum frame Rates | 1080p 60fps |
| Bit-rate Control Modes | VBR, CBR (selectable) |
| Range of Bit-rate Setting | 512Kbps to 32Mbps |
| Network Interfaces | 10/100/1000 Base -T |
| Multi-Stream Capability | 2 (RTSP/web page), 1080p 60fps (max) |
| Network protocols | IPv6, IPv4, TCP, UDP, ARP, IMCP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP, VISCA over IP |
| NDI® |HX Capability | Yes (optional) |
| Connector | USB 3.0 |
| Video Format | MJPEG |
| Maximum Video Resolution | 1080p |
| USB Video Class | UVC1.1 |
| USB Audio Class | UAC1.0 |
| Live Video Preview | Yes |
| Camera PTZ control | Pan, Tilt, Zoom, Focus, Preset control |
| Camera/Image adjustment | Exposure, White balance, Picture |
| Network Configuration | DHCP, IP Address, Gateway, Subnet mask, DNS |
| IP Search & configuration tool | Support Windows® 7 or later |
Package Contents
- The Aver PTC310 Camera
- Remote control
- Power Adapter
- Power cord
- Cable Ties (×5)
- Screws (×10)
- Cable Fixing Plates (×2)
- Ceiling Mount Brackets (×2)
- Quick Start Guide
