Description

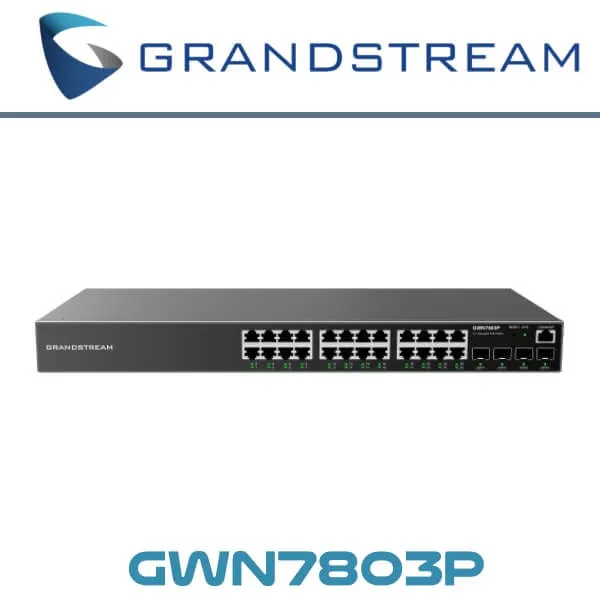

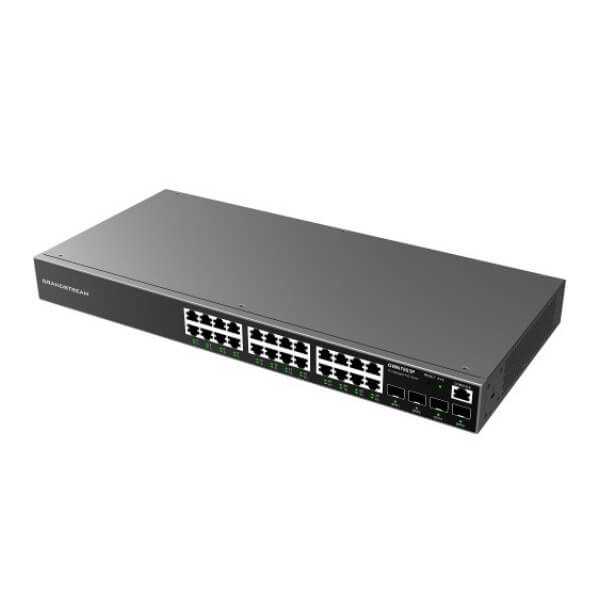

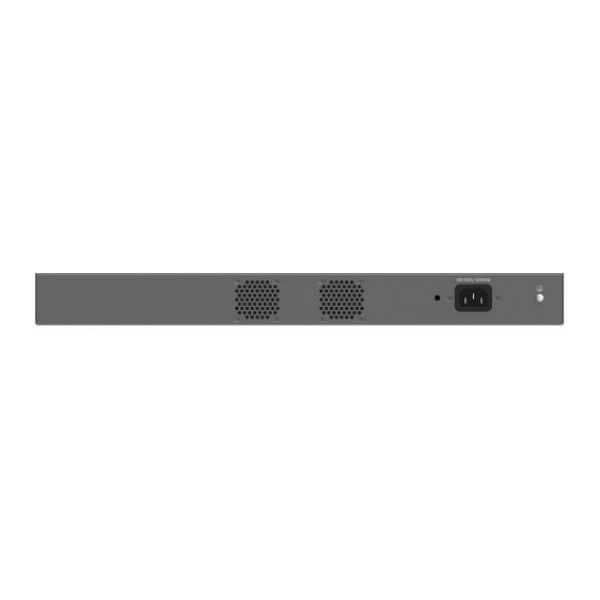

Grandstream GWN7803P Network Switch Kuwait

The Grandstream GWN7803P Kuwait is a managed network switch that offers Power over Ethernet (PoE) support. It belongs to the GWN7800 series, specifically designed for small and medium-sized businesses. These switches facilitate the creation of efficient, secure, and scalable networks that can be fully managed. The Grandstream GWN7803P Kuwait provides advanced features for flexible traffic segmentation, including Virtual LAN (VLAN) capabilities. It also includes advanced Quality of Service (QoS) features that prioritize network traffic to ensure optimal performance. Additionally, the switch incorporates IGMP Snooping to optimize network performance and comprehensive security features to protect against potential attacks. One of the main advantages of the GWN7803P is its ability to power PoE devices such as IP phones, IP cameras, and Wi-Fi access points, eliminating the need for multiple power sources. The GWN7800 series can be managed in various ways, including through the local network controller on the switch’s network interface. Moreover, the Grandstream GWN7803P Kuwait supports GWN Cloud and GWN Manager, which are Grandstream’s cloud and local Wi-Fi management platforms, respectively.

Features

• 24 Gigabit Ethernet ports
• 4 Gigabit SFP ports
• 24 PoE ports
• Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
• Supports deployment in IPv6 and IPv4 networks
• Provides quaternary binding of  IP, MAC, VLAN & port;
• ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
• Device management via SNMP, RMON, CLI, HTTPS, TR069, GWN Manager, GWN.Cloud
• Advanced QoS auto detects and prioritizes latency sensitive audio/video/RTP/ VoIP/SIP packets
• 3-Year Warranty Guaranteed

Technical Specifications

• Model : GWN7803P
• Network Protocol :
  • IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z,
    IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s
• Gigabit Ethernet Ports : 24
• Gigabit SFP Ports : 4
• Console : 1
• Number of PoE Ports : 24
• Integrated Power Supply : 400W
• Max Output Power per PoE Port : 30W
• Max Total PoE Output Power : 360W
• PoE Standards : IEEE 802.3af/at
• Auxiliary Ports :
  • 1x Reset Pinhole
• Forwarding Mode : Store-and-forward
• Total non-blocking throughput : 28Gbps
• Switching Capability : 56Gbps
• Forwarding Rate :
  • 41.66M packets per second
• Packet Buffer : 4.1MB
• Switching :
  • 8K static, dynamic and filtering MAC addresses
  • 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
  • VLAN virtual interface
  • GVRP
  • 8 link aggregation groups
  • Spanning tree, 64 instances for STP/RTSP/MSTP
• Multicast : IGMP Snooping, MLD Snooping, MVR
• Mounting :
  • Desktop
  • Wall-Mount
  • or rack-mount (rack-mount brackets included)
• LEDs :
  • 1x tri-color LED for device tracking and status indication
  • 28x green LEDs for data ports
  • 24x yellow-color LEDs for PoE ports
• Package Content :
  • GWN7803P Switch
  • 1x 1.2m(10A) AC Cable
  • 1x Ground Cable
  • Rack-mounting Standard Brackets
  • 4x Rubber Feet
  • 2x Lug Ear
  • 3-Year Warranty Guaranteed
