Description

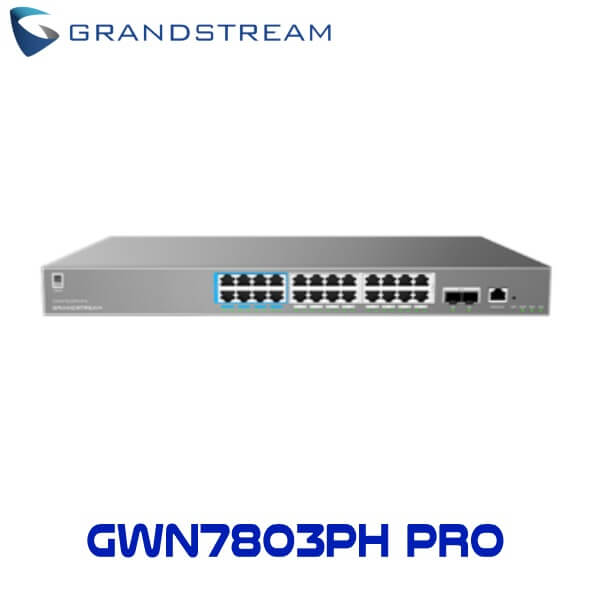

Grandstream GWN7803PH Pro Kuwait – Massive 400W PoE++ 24-Port Layer 2++ Managed Switch for High-Density Networks
The Grandstream GWN7803PH Pro is a premium Layer 2++ managed PoE switch engineered for power-intensive, high-performance environments. It features 24 Gigabit PoE++ ports (up to 60W/port with 802.3bt) and 2x 10G SFP+ uplinks, delivering massive 400W total PoE budget and enhanced processing (double RAM/CPU) to reliably power dense combinations of Wi-Fi 6 APs, PTZ cameras, video door stations, LED controllers, access panels, and digital signage in new large-scale Kuwait projects.
The Grandstream GWN7803PH Pro is an enterprise Layer 2++ managed PoE network switch featuring 24x Gigabit Ethernet PoE++ ports (IEEE 802.3af/at/bt, up to 60W/port, 400W total budget) and 2x 10G SFP+ uplinks, delivering 88 Gbps switching capacity, 65.472 Mpps forwarding rate, and non-blocking performance with enhanced hardware (256MB RAM, 1GHz CPU – double vs standard series). It includes advanced Layer 2++ capabilities such as 16K VLANs (port/MAC/protocol/voice/QinQ), QoS prioritization (8 queues, SP/WRR/WFQ), IGMP/MLD Snooping, spanning tree protocols, link aggregation (LACP), comprehensive security (ARP Inspection, IP Source Guard, DoS protection, port security, 802.1X, DHCP Snooping), IPv4/IPv6 support, and flexible management via embedded controller, GDMS Networking cloud, GWN Manager on-premise, or CLI with no licensing fees – ideal for high-density, high-power PoE++ networking in new medium-to-large Kuwait offices, hotels, retail, education, medical, and surveillance projects.
- 24x Gigabit PoE++ ports (400W total budget, 60W max/port)
- 2x 10G SFP+ uplinks for high-speed fiber connections
- 88 Gbps switching capacity, 65.472 Mpps forwarding
- Layer 2++: Advanced VLAN, QoS, IGMP Snooping, security
- Enhanced RAM/CPU (256MB/1GHz) for demanding loads
- Managed by GDMS/cloud/embedded controller, zero licenses
Core Technical Highlights & Kuwait Performance Edge
| Category | GWN7803PH Pro Capability | Real-World Kuwait Performance Edge for New Sites |
| Ports | 24x Gigabit PoE++ RJ45 + 2x 10G SFP+ | Powers 24 high-wattage devices (up to 60W each) + 10G fiber uplinks for backbone |
| PoE Budget | 400W total (up to 60W/port, IEEE 802.3af/at/bt) | Reliably supports mix of Wi-Fi 6 APs (~25-30W), PTZ cameras (25-60W), GDS doors (~15W) in dense new builds |
| Switching Capacity | 88 Gbps (44 Gbps non-blocking) | Full line-rate for 4K video streams, VoIP, Wi-Fi backhaul in large facilities |
| Forwarding Rate | 65.472 Mpps | Ultra-low latency for real-time apps in busy hotels, hospitals, campuses |
| Layer 2++ Features | 16K VLANs, advanced QoS (8 queues), IGMP/MLD Snooping, STP/MSTP, LACP | Sophisticated traffic control, guest isolation, multicast IPTV optimization |
| Security | ARP Inspection, IP Source Guard, DoS protection, port security, 802.1X | Enterprise-grade protection for new smart buildings & critical infrastructure |
| Management | Embedded controller, GDMS Networking (cloud), GWN Manager, CLI | One dashboard for head-office monitoring of 30–100 new locations |
| Build & Reliability | Rack-mount (kits included), 0°C–45°C, enhanced CPU/RAM | Reliable in warm Kuwait server rooms; supports demanding PoE loads |
Why Kuwait New-Site Projects Choose GWN7803PH Pro in 2026
Kuwait’s large-scale developments (new corporate HQs in Sharq/Salmiya, hotel resorts, retail malls, university campuses, hospitals) face high PoE demands from dense Wi-Fi 6, PTZ surveillance, smart access, and video systems. The GWN7803PH Pro excels with true PoE++ (802.3bt) for 60W/port, 10G uplinks for bandwidth growth, Layer 2++ features for segmentation/security, enhanced hardware for stability, and zero-licensing GDMS cloud management – providing massive power, quiet/reliable operation, and seamless Grandstream ecosystem integration without extra costs.
Advanced Features for Modern Kuwait Deployments
IPv4/IPv6 dual-stack, LLDP-MED auto-discovery, jumbo frames (up to 12KB+), RMON/SNMP monitoring, secure protocols (HTTPS/SSH), storm/loop protection, energy-efficient PoE scheduling, and priority queuing suit high-density VoIP/video/Wi-Fi/cloud needs in new facilities.
Most Common Kuwait New Deployment Scenarios in 2026
- New large corporate offices & headquarters (Sharq, Salmiya towers)
- Hotel chains & resorts (conference halls, guest floors, staff areas)
- Retail hypermarkets & malls (POS, cameras, digital signage)
- University campuses & education facilities (multi-building PoE++ distribution)
- Hospitals & medical centers (wards, labs, secure video/VoIP)
- Government facilities & smart buildings with high-wattage endpoints
What’s Actually Included in the Box?
- Grandstream GWN7803PH Pro switch
- AC power cord
- Rack-mount kits
- Ground cable, rubber feet, screws
- Quick installation guide (Arabic + English available)
Practical Installation Notes from Recent Kuwait Jobs
- Rack-mount in MDF/IDF closets with included kits
- Use Cat6/Cat6A for PoE++ runs (up to 100m); fiber for 10G SFP+ uplinks
- Enable LLDP-MED/voice VLAN for auto Grandstream phone/AP config
- Configure QoS for VoIP/video priority & IGMP for multicast
- Set up GDMS for cloud monitoring/power tracking in multi-site projects
- Test full PoE load (high-wattage mix) & temperature rise before handover
Buy Grandstream GWN7803PH Pro in Kuwait – Current Stock & Service (February 2026)
✅ Authorized Grandstream distributor
✅ In stock – Kuwait central warehouse
✅ Same-day collection/dispatch in Kuwait City
✅ Next-business-day delivery to other areas
✅ 24–48 h nationwide
Full Service Menu for New Sites
- Free PoE budget calculation & port-planning consultation
- Professional rack installation & cable certification
- VLAN, QoS, LLDP-MED, voice VLAN & security configuration
- GDMS account setup + multi-site tenant creation
- Arabic + English technical support (remote & on-site)
- 60–90 minute product + management training for your IT team (included)
Reply “quote GWN7803PH Pro qty X” or “PoE switch survey Kuwait new site” – we’ll reply with current pricing, stock status and suggested BOM within 45 minutes (Kuwait business hours).
High-density PoE++ switch stock moves quickly during large fit-out season. Reserve your units today.
