Tplink TL-SG105E Kuwait

Tplink TL-SG105E Kuwait

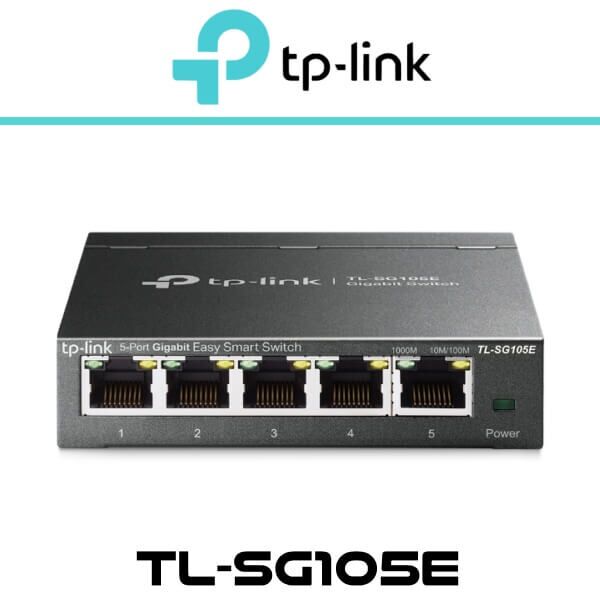

The Tplink TL-SG105E Kuwait Unmanaged Pro switch is an ideal upgrade on unmanaged switches, suited for home and small business networks.



Tplink TL-SG105E Kuwait

The Tplink TL-SG105E Kuwait Unmanaged Pro switch is an ideal upgrade on unmanaged switches, suited for home and small business networks. A plug-and-play design makes for easy deployment without the need for a technician, while a robust metal casing provides better protection for components. Equipped with intelligent management features like QoS, VLAN, IGMP Snooping and more, this switch is effective in both simple and more demanding network environments.

Key Features:

  • Seamlessly Connect Your Devices for Enhanced Business Operations
    • The Tplink TL-SG105E Kuwait Switch simplifies network expansion, offering a hassle-free solution for managing your business affairs, whether you’re at home or in the office.
  • Gigabit Ports for Uninterrupted Connectivity
    • With 5 non-blocking 10/100/1,000 Mbps ports, the Tplink TL-SG105E Kuwait enables the seamless transfer of large, bandwidth-intensive files without any disruptions.
  • Quality of Service (QoS) for Smooth Performance
    • Ensures a lag-free experience by optimizing traffic flow, particularly for latency-sensitive applications like voice and video.
  • IGMP Snooping for Efficient Multicast Handling
    • Optimizes the delivery of multimedia traffic, enhancing the network experience, especially for applications like IPTV.
  • VLAN Support for Enhanced Security
    • Divides the network into smaller, more secure groups, improving overall network security and performance.
  • User-Friendly Network Management
    • The Tplink TL-SG105E Kuwait offers network monitoring capabilities, allowing users to monitor traffic behavior.
    • Its web-based user interface and management utility provide valuable features such as network monitoring, traffic prioritization, and enhanced QoS.
  • Robust Metal Casing for Durability
    • The Tplink TL-SG105E Kuwait features a high-quality metal casing that protects its internal components, ensuring a long product lifespan.
    • Rigorously tested for reliability, the TL-SG105E delivers dependable switching performance.
  • Eco-Friendly Ethernet Solutions
    • TP-Link’s latest generation of Easy Smart Switches incorporates innovative energy-saving technologies.
    • Power consumption automatically adjusts based on link status and cable length, allowing network expansion while minimizing your environmental footprint.

Technical Specifications :

  • Standards and Protocols : IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
  • Interface : 5 10/100/1000 Mbps RJ45 Ports
  • AUTO Negotiation/AUTO MDI/MDIX
  • Network Media : 10BASE-T : UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX : UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T : UTP category 5, 5e, 6 or above cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)
  • Fan Quantity : Fanless

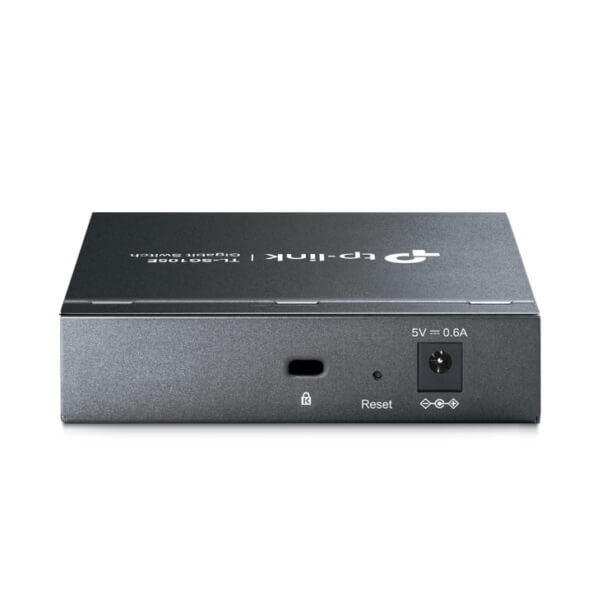

  • Power Supply : External Power Adapter (Output : 5 VDC/ 0.6 A)
  • Dimensions ( W x D x H ) : 3.9 × 3.9 × 1.0 in.(100 × 98 × 25 mm)
  • Max Power Consumption : 2.8 W
  • Max Heat Dissipation : 9.6 BTU/h

Performance :

  • Packet Forwarding Rate : 7.4 Mpps
  • MAC Address Table : 2 K
  • Packet Buffer Memory : 1 Mb
  • Jumbo Frame : 16 KB

Software features :

  • Quality of Service : Support Port-based/802.1p/DSCP priority
  • Support 4 priority queues

Rate Limit :

  • Storm Control
  • L2 Features : IGMP Snooping V1/V2/V3
  • Static Link Aggregation
  • Port Mirroring
  • Cable Diagnostics
  • Loop Prevention
  • VLAN : Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)MTU/Port/Tag VLAN
  • Transmission Method : Store-And-Forward

Others :

  • Certification : FCC, CE, RoHS
  • Package Contents : TL-SG105EPower Adapter Installation Guide Rubber Feet
  • System Requirements : Microsoft Windows for Easy Smart Utility

Environment :

  • Operating Temperature : 0℃~40℃ (32℉~104℉)
  • Storage Temperature : -40℃~70℃ (-40℉~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
