Description

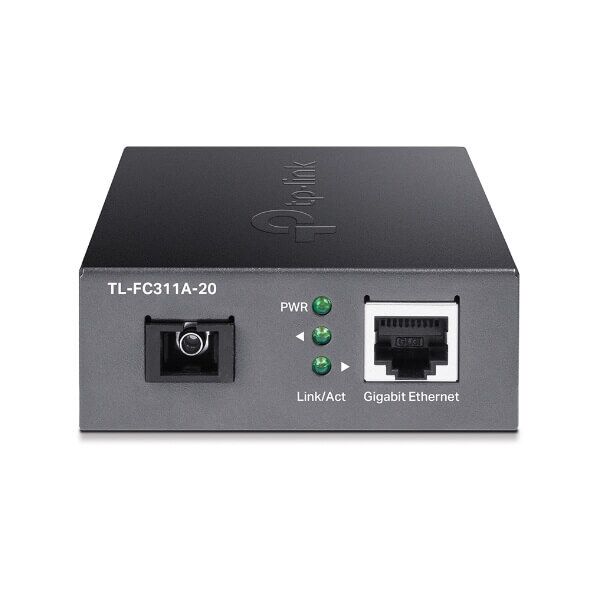

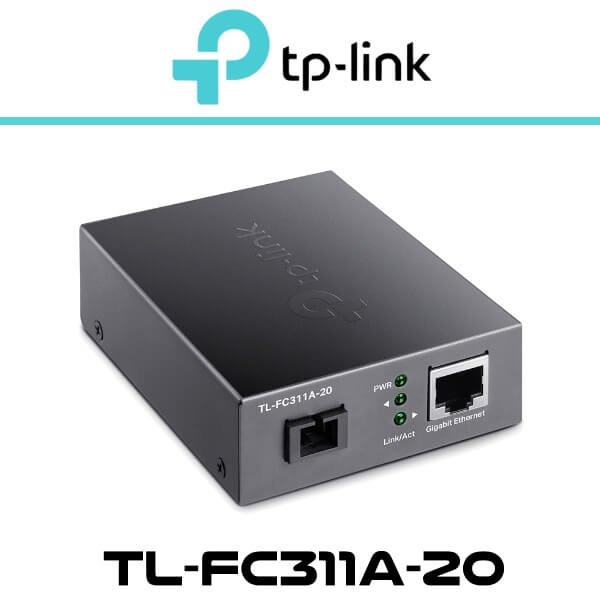

Tplink TL-FC311A20 Kuwait
The Tplink TL-FC311A20 Kuwait is an advanced gigabit media converter, featuring both a gigabit RJ-45 port and a gigabit SC fiber port, allowing for seamless conversion between electrical and optical signals. This capability is particularly beneficial for long-distance data transmission via optical fiber in commercial settings, such as park security monitoring and wireless networking.
The Tplink TL-FC311A20 Kuwait leverages cutting-edge WDM (wavelength division multiplexing) technology, enabling efficient data transmission over distances of up to 20 km using a single-mode fiber, effectively reducing cable deployment costs for customers by half. The Tplink TL-FC311A20 Kuwait operates by transmitting data at a wavelength of 1550 nm and receiving data at 1310 nm over optical fiber. Consequently, the terminal device paired with the Tplink TL-FC311A20 Kuwait should transmit data at a wavelength of 1310 nm and receive data at a wavelength of 1550 nm. TP-Link’s TL-FC311B-20 media converter is among the compatible products that can seamlessly collaborate with the Tplink TL-FC311A20 Kuwait.
Additionally, this versatile media converter offers the flexibility to be used either as a standalone device, eliminating the need for a rack, or in conjunction with the Tplink TL-FC311A20 Kuwait rack. It supports auto MDI/MDI-X in the TX port, where duplex mode is automatically negotiated for user convenience.
Quick Features
- Tplink TL-FC311A20 is designed to convert 1000BASE-LX fiber to 1000Base-T copper media or vice versa.
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode.
- Supports auto MDI/MDIX for TX port.
- The Tplink TL-FC311A20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance up to 20 km with only one single-mode fiber, which saves half of the cable deployment cost for customers compares to dual-fiber deployment.
- Wavelength: Tx 1550 nm, Rx 1310nm; Compatible TP-Link model: TL-FC311B-20, TL-SM321B-2 and TL-FC311B-2 (Only under 2km transmission).
Technical Specifications
| NETWORK | |
| Standards and Protocols | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z |
| ENVIRONMENT | |
| Operating Temperature | 0˚C to 50˚C (32˚F to 122˚F) |
| Storage Temperature | -40˚C to 70˚C (-40˚F to 158˚F) |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 90% RH non-condensing |
| HARDWARE FEATURES | |
| Interface |
|
| Network Media |
|
| Power Supply | External Power Adapter: 5 V/0.6 A |
| LED | PWR, Link/Act |
| Dimensions ( W x D x H ) | 3.7×2.9×1.1 in (94.5×73.0×27.0 mm) |
| Wave Length | 1550 nm TX, 1310 nm RX |
| MEDIA CONVERTER & MODULE | |
| Fiber Type | 9/125 μm single-mode fiber |
