Ubiquiti AirFiber5XHD Kuwait

Ubiquiti AirFiber5XHD Kuwait

The Ubiquiti AirFiber5XHD Kuwait features 21.2 bps/Hz spectral efficiency, line‑rate data packet processing for up to 1.34 Gb/s of real data throughput, and innovative extreme Range Technology (xRT).

Description

Ubiquiti AirFiber5XHD Wi-Fi Bridge Kuwait

Designed for use in the 5 GHz frequency band, the new Ubiquiti AirFiber5XHD Kuwait is Ubiquiti’s first LTU radio, offering greater channel bandwidths of up to 100 MHz, and more advanced RF components. Pair the AF-5XHD with a compatible Ubiquiti® airFiber X antenna or RocketDish antenna for a complete 5 GHz Point-to-Point (PtP) solution. An IP67 upgrade kit is included to provide enhanced protection to the Ubiquiti AirFiber5XHD Kuwait from dust and water.

The Ubiquiti AirFiber5XHD Kuwait’s LTU silicon and radio architecture provides breakthrough performance. Its core communications processing engine surpasses the limitations inherent to generic Wi -Fi chips to provide low latency, long‑range capability, DFS flexibility, higher constellations, and better power output, along with improved receive sensitivity. The Ubiquiti AirFiber5XHD Kuwait features 21.2 bps/Hz spectral efficiency, line‑rate data packet processing for up to 1.34 Gb/s of real data throughput, and innovative extreme Range Technology (xRT).

Key Features

  • Frequency Range : 4.8 GHz – 6.2 GHz (Worldwide)
  • Max. Conducted TX Power : 29 dBm (Dependent on Regulatory Region)
  • Frequency Accuracy : < 2 ppm
  • Channel Bandwidth :
    • 10/20/30/40/50/60/80/100 MHz Selectable
    • Programmable Uplink and Downlink Duty Cycles
  • Programmable Transmit Power
  • Programmable Duty Cycle (GPS synchronized frames)
  • Configurable GPS Synchronization
  • Split TX and RX Frequency
  • Split TX and RX Channel Bandwidth
  • Local Security Management for SMBs
  • Dual Redundant Gigabit Ethernet Ports with PoE
  • OFDM and OFDMA Support
  • Bluetooth Wireless Configuration
  • AlignLock Antenna Aiming Guard
  • User-Configurable Interference Mitigation
  • Redundant Images for Fail-Safe Configuration
  • Persistent Spectrum Analysis with Dedicated RX
  • Ubiquiti AirFiber5XHD Kuwait is equipped with wide Voltage Range, Enhanced Surge Protection

Technical Specs

Specifications
Dimensions 224 x 82 x 48 mm (8.82 x 3.23 x 1.89″)
Weight 0.35 kg (0.77 lb)
GPS External, Magnetic Base
Operating Frequency
  • 5150-5250MHz
  • 5740-5850MHz
Power Supply 24V, 1A PoE Gigabit Adapter (Included)
Power Method Dual Passive Power over Ethernet
Maximum Power Consumption 12W
Supported Voltage Range 20-50VDC
Mounting airFiber X Mount (Rocket Mount Compatible)
GPS Pole Mount (Included)
Certifications FCC
Operating Temperature -40 to 55° C (-40 to 131° F)
INTERFACE

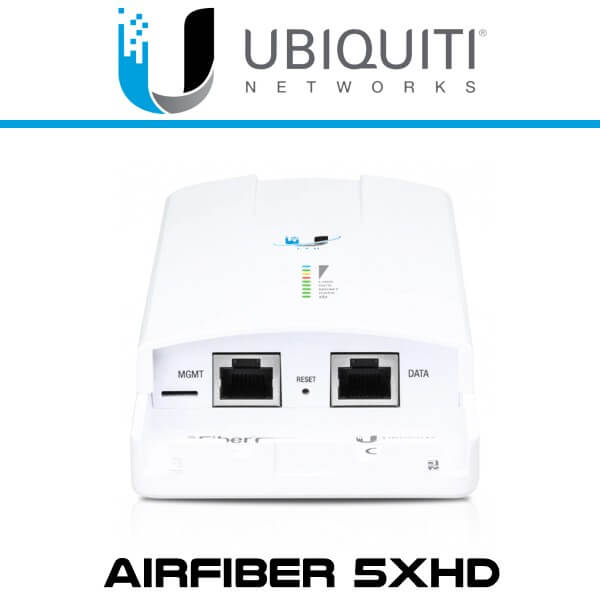

Data Port (1) 10/100/1000 Ethernet Port
Configuration Port (1) 10/100/1000 Ethernet Port
SYSTEM
Processor LTU IC
Maximum Throughput 1+ Gbps
Maximum Range 200+ km (Throughput and range values may vary depending on the environmental conditions)
Encryption 128-bit AES
Operating System airOS F
RADIO FREQUENCY
Max TX Power 29 dBm (Dependent on Regulatory Region)
Frequency Accuracy
  • ± 2.5 ppm without GPS Synchronization
  • ± 0.2 ppm with GPS Synchronization
Channel Bandwidth 10/20/30/40/50/60/80/100 MHz Selectable
