Ubiquiti UAP IW HD Kuwait

Ubiquiti UAP IW HD Kuwait

=”text-align: justify;”>The Ubiquiti UAP IW HD Kuwait can be conveniently powered by an 802.3af or 802.at compliant switch.

Description

Ubiquiti UAP IW HD Access Point Kuwait

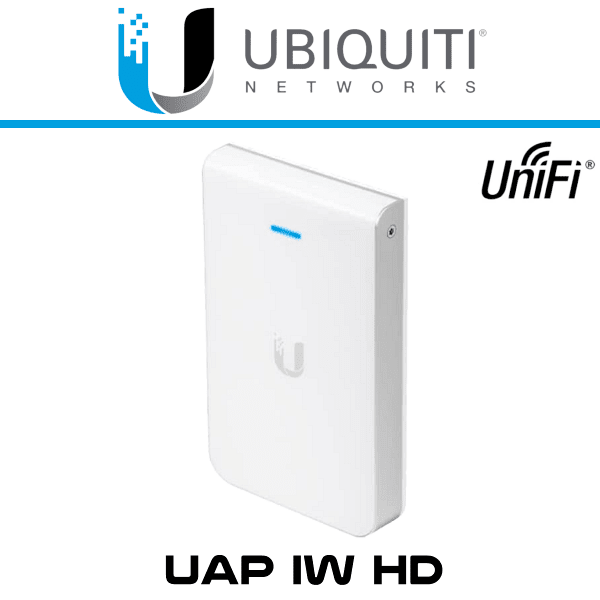

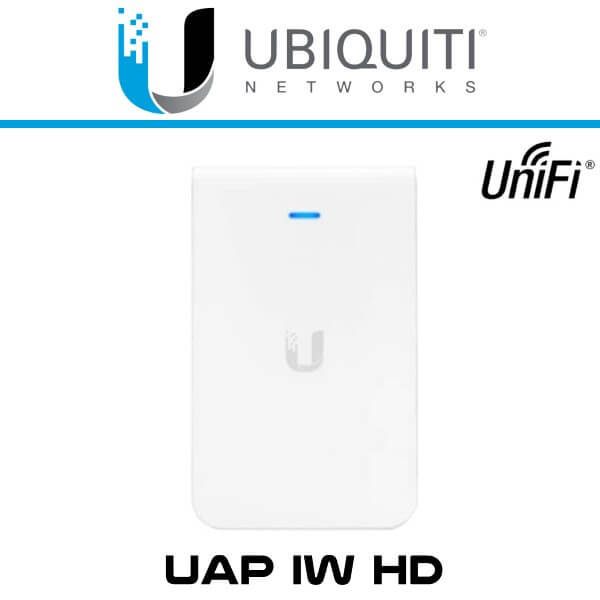

The Ubiquiti UAP IW HD Kuwait is a high-density In-Wall access point with a refined industrial design. It can be easily installed using the included mounting hardware. The sleek and elegant Ubiquiti UAP IW HD Kuwait transforms an Ethernet wall connection into a simultaneous, dual-band 802.11ac Wi-Fi Access Point with 4×4 MIMO technology.

Features

  • Superior Processing Power
    • The Ubiquiti UAP IW HD Kuwait is capable of complex operations (guest control, filtering, and other resource-intensive tasks) that may slow down a lesser-equipped AP.
  • Power over Ethernet (PoE) Standard
    • The UAP IW HD can be conveniently powered by an 802.3af or 802.at compliant switch. We recommend powering your UniFi devices with a UniFi PoE Switch.
  • Customizable with Various Skins
    • Optional skins (sold separately) allow the Ubiquiti UAP IW HD to discreetly blend into its setting.
  • UniFi Network application
    • Use the UniFi Network application to provision thousands of UniFi APs, map out networks, quickly manage system traffic, and provision additional UniFi APs.
  • Quick and Simple Installation
    • The UAP IW HD Kuwait has a refined industrial design and can be easily installed using the included mounting hardware.

Specifications

Physical Characteristics

  • Dimensions : 139.7 x 86.7 x 25.75 mm (5.5 x 3.41 x 1.01″)
  • Weight : 210 g (7.41 oz)
  • Networking Interface : 5 x 10/100/1000 Ethernet Ports
  • Buttons : Reset
  • Power Method :
    • 802.3af PoE
    • 802.3at PoE+
  • Supported Voltage Range : 44 to 57VDC
  • PoE Out : 48V Passthrough (Pins +1, 2; -3, 6)
  • Power Save : Supported
  • Beamforming : Supported
  • Maximum Power Consumption : 11W
  • With PoE Passthrough : 23W
  • TX Power :
    • 2.4 GHz : 23dBm
    • 5 GHz : 26 dBm
  • Dual Band Antennas :
    • 2 x Single-Port, Single-Polarity Dual-Band Antennas,
    • 2.4 GHz : 1.8 dBi Each
    • 5 GHz : 3.4 dBi Each
  • Single-Band :
    • 2 x Single-Port, Dual-Polarity, Single-Band Antennas
    • 5 GHz: 6 dBi Each
  • WiFi Standards : 802.11 a/b/g/n/ac/ac-wave2
  • Wireless Security : WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) 802.11w/PMF
  • BSSID : Up to 8 per Radio
  • Mounting : 1-Gang Electrical Wall Box (Not Included)
  • Operating Temperature : -10 to 60° C (14 to 140° F)
  • Operating Humidity : 5 to 95% Noncondensing
  • Certifications : CE, FCC, IC

Advanced Traffic Management

  • VLAN: 802.1Q
  • Advanced QoS: Per-User Rate Limiting
  • Guest Traffic Isolation: Supported
  • WMM : Voice, Video, Best Effort, and Background
  • Concurrent Clients : 200+

Supported Data Rates (Mbps)

  • Standard : Data Rates
  • 802.11a : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 802.11n : 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
  • 802.11ac : 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80)
  • 802.11b : 1, 2, 5.5, 11 Mbps
  • 802.11g : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
