Ubiquiti AirFiber60HD Kuwait

Ubiquiti AirFiber60HD Kuwait

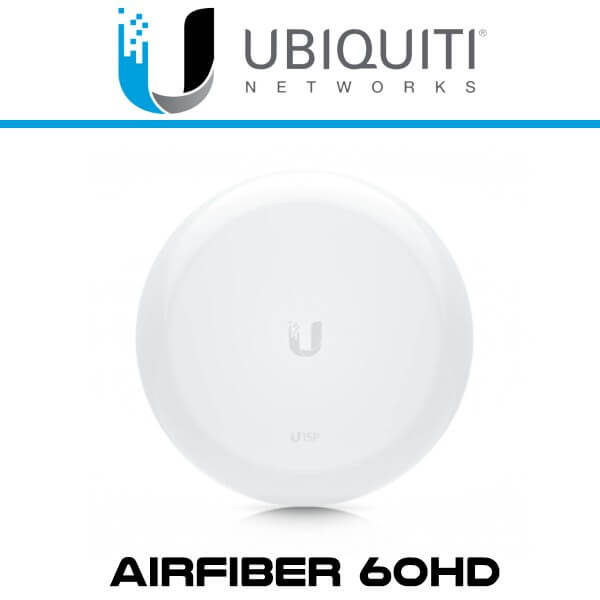

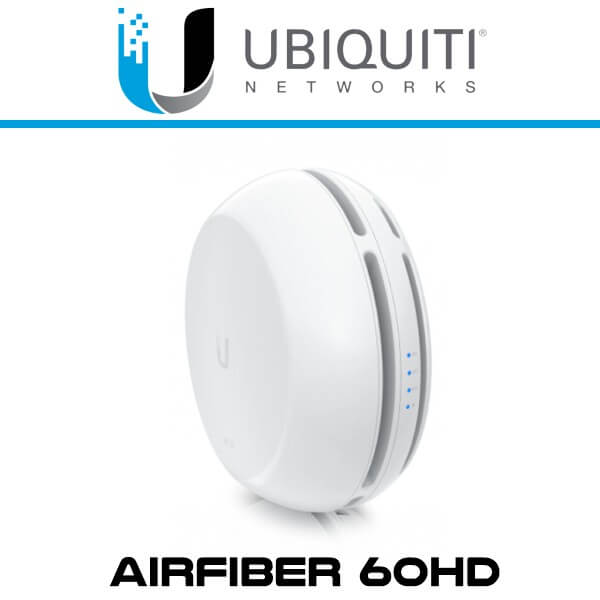

The Ubiquiti AirFiber60HD Kuwait is a 60 GHz radio for low-interference and high-throughput connectivity. It’s integrated with a high-gain dish antenna for long range and high performance.

Description

Ubiquiti AirFiber60HD Wi-Fi Bridge Kuwait

The Ubiquiti AirFiber60HD Kuwait is a 60 GHz radio designed to create superior mid-range, point-to-point (PtP) links up to 2 km. The AF60 HD delivers low-interference, low-latency throughput within the 60 GHz spectrum. Compact and highly durable, the Ubiquiti AirFiber60HD Kuwait also features integrated GPS and a Bluetooth management radio to simplify setup, configuration, and monitoring. This bridge is ideal for ISPs looking to maximize signal linking with cost-effective equipment.

Key Features :

  • 60 GHz radio with 5 GHz radio backup
  • Low-interference 60 Ghz spectrum
  • Long range, up to 2 km
  • Up to 1 Gbps with low latency
  • Integrated GPS
  • Full and half bandwidth support

Technical Specifications

General

  • Dimensions : 413 x 413 x 320 mm (16.26 x 16.26 x 12.60″)
  • Weight :
    • Without Mount : 1.4 kg (3.09 lb)
    • With Mount : 1.8 kg (3.97 lb)
  • Enclosure : Aluminum, UV-stabilised Polycarbonate
  • Antenna Gain :
    • 5 GHz : 11 dBi
    • 60 GHz : 38 dBi
  • Networking Interface : (1) 10/100/1000 Mbps Ethernet Port
  • Max. Power Consumption : 11W
  • Power Method : Passive PoE, Pins 4, 5+ and 7, 8-
  • Power Supply : 24VDC, 0.5A Gigabit PoE Adapter (Included)
  • Voltage Range : +22 to +26VDC
  • LEDs : Power/Ethernet/5G/60G/GPS
  • Mounting : Pole Mount (Included)
  • Wind Loading : 420 N @ 200 km/h (94.4 lbf @ 125 mph)
  • Wind Survivability : 200 km/h (125 mph)
  • ESD/EMP Protection : ± 24kV Contact/Air
  • Operating Temperature : -40°C to 60°C (-40°F to 140°F)
  • Operating Humidity : 5 to 95% Noncondensing
  • Certifications : FCC, IC, CE

System

  • Maximum Throughput : 1.8 Gbps
  • Maximum Range : 2+ km
  • Encryption : WPA2-PSK (AES)/WPA2 Enterprise
  • OS : airOS GP

Radio

  • Max. Conducted TX Power :
    • 5/60 GHz Combined :  25 dBm
  • Channel Bandwidth :
    • 60 GHz : 2160 MHz
    • 5 GHz : 20/40/80 MHz

Operating Frequency (MHz)

  • US/CA :
    • U-NII-1 : 5150 – 5250
    • U-NII-3 : 5725 – 5850
  • 57,000 – 66,000
