Cisco Catalyst2960-48TTL Kuwait

Cisco Catalyst2960 48TTL Kuwait enables you to protect important information, keep unauthorized users off the network, and maintain uninterrupted operation.

Add to quote

Description

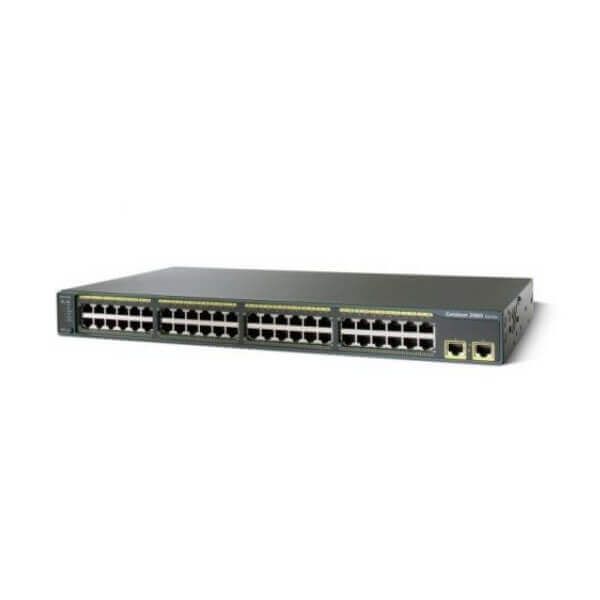

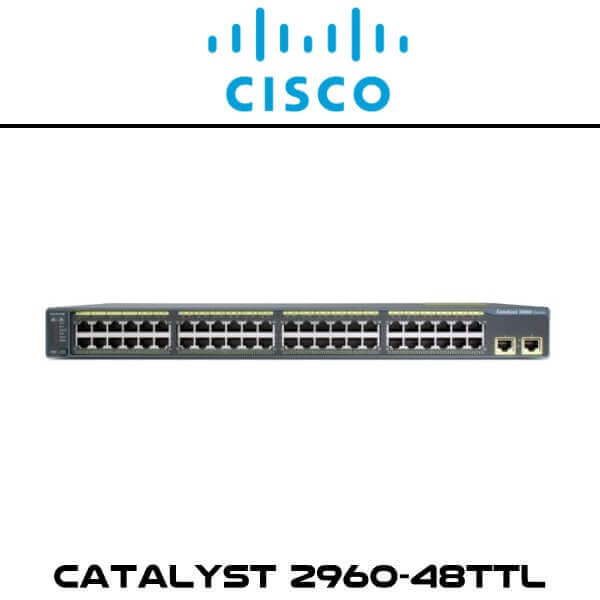

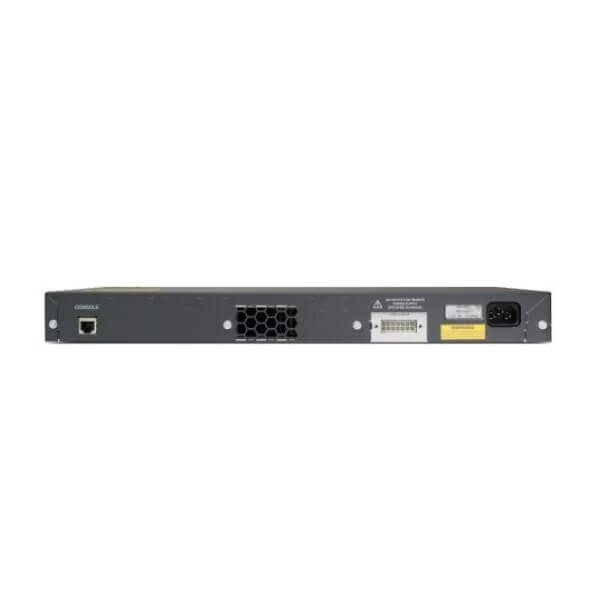

Cisco Catalyst2960-48TTL Network Switch Kuwait

The Cisco Catalyst2960-48TTL Kuwait is an intelligent fixed configuration 48 port Ethernet switch that will provide fast Ethernet and Gigabit Ethernet connectivity. Common features include integrated NAC (Network Admission Control), advanced QoS (quality of service) and scalable network management.

Features

Intelligence : Prioritize voice traffic or data exchange so delivery of information is aligned with your business requirements using the premium Cisco Catalyst2960-48TTL Kuwait.

Enhanced Security : Cisco Catalyst2960-48TTL Kuwait enables you to protect important information, keep unauthorized users off the network, and maintain uninterrupted operation.

Reliability : Take advantage of standards-based methods or FlexStack stacking for increasing dependability and rapid recovery from problems. You can also add redundant power supply for extra reliability.

Easy Configuration : Use integrated Cisco Catalyst Smart Operations and Cisco Network Assistant to simplify set-up, upgrades, and troubleshooting of the Cisco Catalyst2960-48TTL Kuwait switch.

Technical Specifications

General

Device Type
Switch – 48 ports – managed

Enclosure Type
Rack-mountable 1U

Subtype
Fast Ethernet

Ports
48 x 10/100 + 2 x 10/100/1000

Performance
Switching capacity : 32 Gbps
Forwarding performance (64-byte packet size) : 10.1 Mpps

MAC Address Table Size
8K entries

Remote Management Protocol
SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH

Encryption Algorithm
SSL

Authentication Method
Secure Shell (SSH), RADIUS, TACACS+

Features
Layer 2 switching, auto-sensing per device, dynamic IP address assignment, auto-negotiation, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Link Aggregation Control Protocol (LACP), Port Security, MAC Address Notification, Remote Switch Port Analyzer (RSPAN)

Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP)

RAM
64 MB

Flash Memory
32 MB flash

Status Indicators
Port transmission speed, port duplex mode, power, link OK, system, link/activity

Expansion / Connectivity

Interfaces
48 x 100Base-TX RJ-45 ¦ 2 x 1000Base-T RJ-45

Power

Power Device
Internal power supply

Voltage Required
AC 120/230 V (50/60 Hz)

Power Consumption Operational
42 Watt

Miscellaneous

Rack Mounting Kit
Optional

MTBF
339,743 hours

Compliant Standards
TUV GS, CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, NOM, VCCI Class A ITE, EN55024, CB, EMC, MIC, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, RoHS, CSA C22.2 No. 60950-1, FCC Part 15 B Class A
