Cisco C8300-1N1S6T Kuwait

Cisco C8300-1N1S6T Kuwait

Cisco C8300-1N1S6T Kuwait provides higher WAN port density and a redundant power supply capability. Powered by Cisco’s fully programmable software architecture, and API support, these platforms can facilitate automation at scale to achieve zero-touch IT capability while migrating workloads to the cloud.

Category:

Description

Cisco C8300-1N1S6T Cloud-Edge Platform Kuwait

Cisco C8300-1N1S6T Kuwait platforms deliver Cisco’s secure, cloud-scale SD-WAN solution for the branch. The Catalyst 8300 series is purpose-built for high performance and integrated SD-WAN services along with flexibility to deliver security and networking services together from the cloud or on premises. Cisco C8300-1N1S6T Kuwait provides higher WAN port density and a redundant power supply capability. Powered by Cisco’s fully programmable software architecture, and API support, these platforms can facilitate automation at scale to achieve zero-touch IT capability while migrating workloads to the cloud. Cisco C8300-1N1S6T Kuwait series edge platforms also come with an infrastructure that secures the platforms against threats and vulnerabilities with integrity verification and remediation of threats.

Features:

Multicore processors-

  • Intel x86 CPU with 8-GB memory default (up to 32 GB memory upgrade)
  • High-performance multicore processors support high-speed WAN connections.
  • Dynamic core allocation architecture that can leverage data plane cores for I/O and service plane as per-user configuration.

Embedded IPsec VPN hardware acceleration-

  • Up to 5 Gbps of IPSec Internet Mix (IMIX) traffic
  • Increases scalability for IPSec throughput needs for medium- and large-sized branches
  • SSL and crypto hardware acceleration

Integrated Gigabit Ethernet ports-

  • Cisco C8300-1N1S6T Kuwait provides 6 built-in Layer 3 Ethernet ports for WAN or LAN with port speeds ranging from 10Mbps, 100Mbps, 1Gbps and up to 10Gbps, depending on platform model
  • All platforms have at least 2 Ethernet ports that can support Small Form-Factor Pluggable (SFP or SFP+) based connectivity in addition to 4 RJ-45 connections, enabling fiber or copper connectivity.

DRAM-

  • Cisco C8300-1N1S6T Kuwait has 8G default DRAM and can be upgraded to 16G and 32G for higher scale and performance.

M.2 storage-

  •  The Cisco C8300-1N1S6T ships with default 16G M.2 USB for SD-WAN logging and additional storage on the platform. It can be upgraded to 32G M.2 USB and 600G M.2 Non-Volatile Memory Express (NVMe).

Technical Details

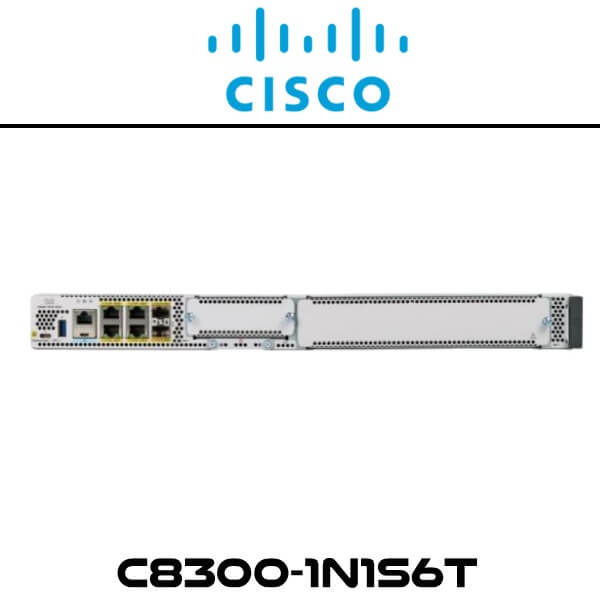

Part number C8300-1N1S-6T
Description C8300 1RU w/ 1G WAN (1 SM slot and 1 NIM slot, and 6 x 1-Gigabit Ethernet ports)
Multicore processors Intel x86 CPU with 8 GB memory default
Embedded IPsec VPN hardware acceleration Up to 5 Gbps of IPSec Internet Mix (IMIX) traffic
DRAM 8 GB
SD-WAN overlay tunnels scale 6000
Integrated Gigabit Ethernet ports
  • 6 built-in 10/100/1000/10G Ethernet ports for WAN or LAN
  • 2 SFP Ethernet ports, 4 RJ45 ports
Flash memory support 8-GB flash
M.2 storage With default 16G M.2 USB for SD-WAN logging and additional storage on the platform and can be upgraded to 32G M.2 USB and 600G M.2 NVMe Storage
