Description

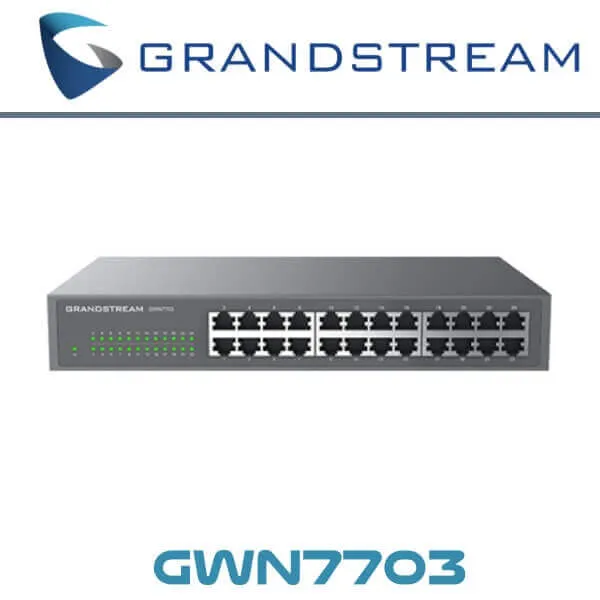

Grandstream GWN7703 Network Switch Kuwait

Introducing the Grandstream GWN7703 Kuwait, a range of unmanaged network switches that offer a fast and cost-effective solution to enhance high-speed Gigabit connectivity for your home office or small business. These switches are easy to use with no need for configuration or installation, and can be conveniently mounted on a desk or wall. With the auto MDI/MDIX functionality, you no longer require crossover cables. Additionally, each port of the Grandstream GWN7703 Kuwait Kuwaitsupports auto-negotiation, allowing the switch to automatically detect and adjust to the connection speed of 10/100/1000 Mbps network devices, ensuring seamless compatibility and optimal performance. The PoE (Power-over-Ethernet) model comes equipped with an intelligent dynamic PoE output port that complies with IEEE 802.3af standards. This feature adds convenience by providing power to PoE endpoints such as IP phones, IP cameras, WiFi access points, and more. In conclusion, the Grandstream GWN7703 Kuwait Kuwaitoffers a hassle-free plug-and-play solution, making it the ideal choice for home offices or small businesses in search of an unmanaged network switch solution.

Technical Specifications

• Gigabit Ports : 24
• PoE Ports :  N/A
• Enclosure :  Metal
• Mounting :  Desktop/Rack-Mount
• Standards and Protocols :  IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
• Port Features :
  • 16 * 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation
  • AUTO MDI/MDIX
• Network Media :  1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
• LED Indicators :
  • Per port :  Link/Activity Green
  • Per device :  Power Green
• Mac Address Table :  8K
• Switching Capacity : 48Gbps
• Jumbo Frame :  10KB
• Advanced Features :
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE 802.3x Flow Control
  • Half duplex backpressure
• Power Adapter :  Internal 100-240V AC, 50/60Hz,18W
• Max Power Consumption by Base System : 13W@220V/50Hz
• Environmental :
  • Operating Temperature :  0 to 40 °C (32 to 104 °F)
  • Storage Temperature :  -20 to 60 °C (-4 to 140 °F)
  • Operating Humidity :  10% to 90% Non-condensing
  • Storage Humidity :  10% to 90% Non-condensing
• Dimensions (L x W x H) :
  • Unit :  280 x 180 x 44mm;
  • Package :  366 x 211 x 53mm
• Weight :
  • Unit : 1.35KG
  • Entire Package : 1.95KG
• Package :
  • 1x Switch
  • 1x 1.2m AC Cable
  • Rack-mounting Standard Brackets
  • 4x Rubber Feet
  • 1x QIG
• Compliance : FCC, CE, RCM, IC, UKCA
