Description

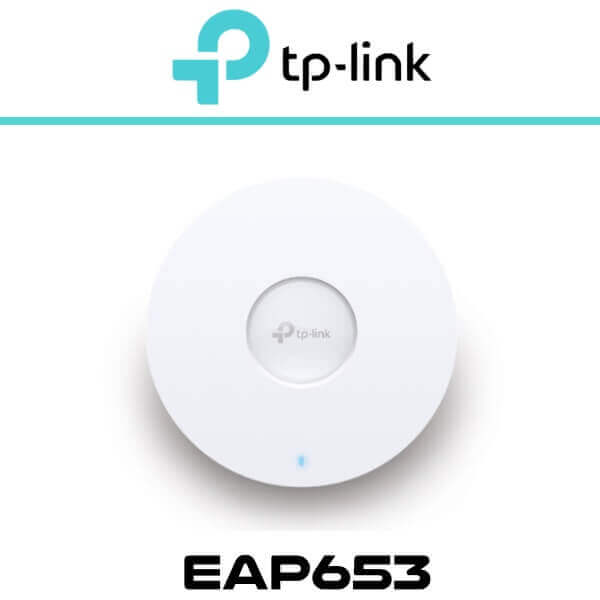

Tplink EAP653 Kuwait
The Tplink EAP653 Kuwait Access Point, delivering lightning-fast WiFi 6 speeds that provide simultaneous 574 Mbps on the 2.4 GHz band and 2402 Mbps on the 5 GHz band, resulting in a total WiFi speed of up to 2976 Mbps. WiFi 6 technology also ensures that more devices can connect to your network with enhanced speed and efficiency.
The Tplink EAP653 Kuwait offers versatile power options, supporting both 802.3at PoE+ and DC power supply (available separately), allowing for flexible installation solutions. Its ultra-sleek design, with a compact footprint measuring only 160 mm × 33.6 mm, enables discreet placement throughout your home.
For centralized network management, the Tplink EAP653 Kuwait seamlessly integrates with Omada SDN. Whether you prefer local management or cloud-based control via web UI or the Omada app, this access point provides a comprehensive solution. Additionally, seamless roaming ensures uninterrupted video streaming and voice calls, even as multiple users move between locations.
For extended coverage and flexible deployment, the Tplink EAP653 Kuwait can become part of the Omada Mesh, facilitating wireless connectivity between access points. By installing multiple Tplink EAP653 Kuwait access points, you can expand the coverage area throughout your home or business, ensuring a seamless and reliable WiFi experience.
Features
- Ultra-Fast WiFi 6 Speeds : Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
- High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
- Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
- 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.
- Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.
- Omada Mesh : Enables wireless connectivity between access points for extended range and flexible deployment.
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter NOT included) power supply for flexible installations.

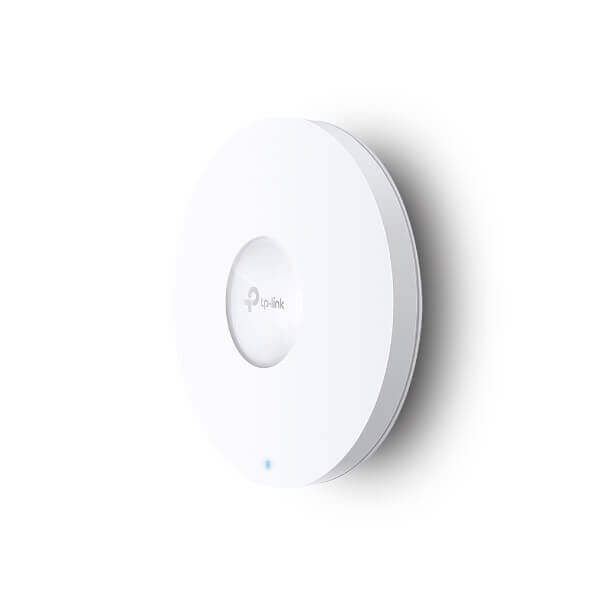

- Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.
Technical Specs
| HARDWARE FEATURES | |

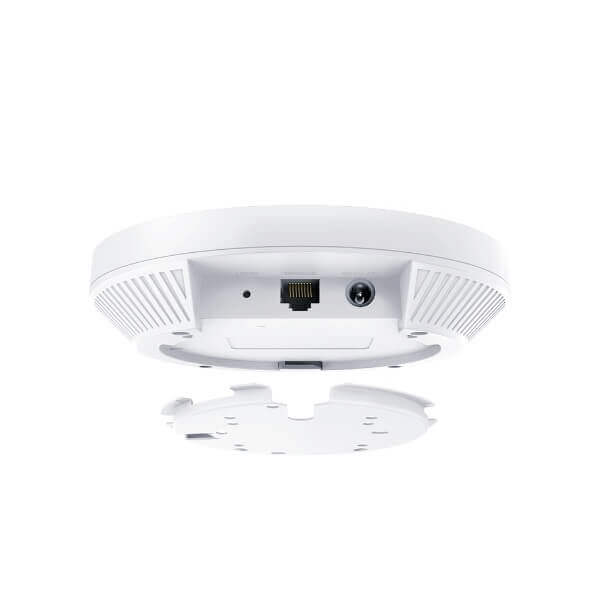

| Interface | 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) |
| Button | Reset |
| Power Supply | 802.3at PoE 12V DC (Power Adapter is NOT included) |
| Power Consumption | EU : 13.5 W |
| Dimensions ( W x D x H ) | 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
| Antenna Type | Internal Omni
2.4 GHz : 2× 4 dBi 5 GHz : 2× 5 dBi |
| Mounting | Ceiling /Wall Mounting (Kits included)
Junction Box Mounting |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 5 GHz : Up to 2402 Mbps
2.4 GHz : Up to 574 Mbps |
| Wireless Functions | 1024-QAM
4× Longer OFDM Symbol OFDMA Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) MU-MIMO HE160 (160 MHz Bandwidth) Seamless Roaming Omada Mesh Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication
Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | CE :
<20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, Band1 & Band2, EIRP) <30 dBm(5 GHz, Band3, EIRP)FCC : <25 dBm (2.4 GHz) <25 dBm (5 GHz) |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200) Omada Software Controller Omada Cloud-Based Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | EAP653
Ceiling/Wall Mounting Kits Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Environment | Operating Temperature : 0–40 ℃ (32–104 ℉)
Storage Temperature : -40–70 ℃ (-40–158 ℉) Operating Humidity : 10–90% RH non-condensing Storage Humidity : 5–90% RH non-condensing |
