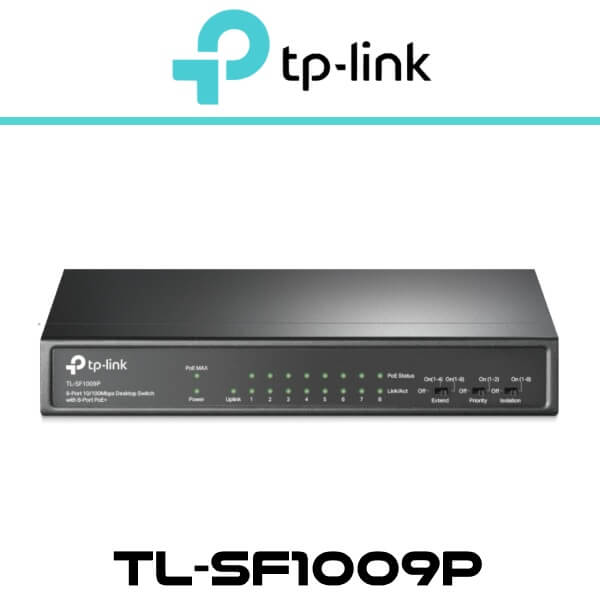

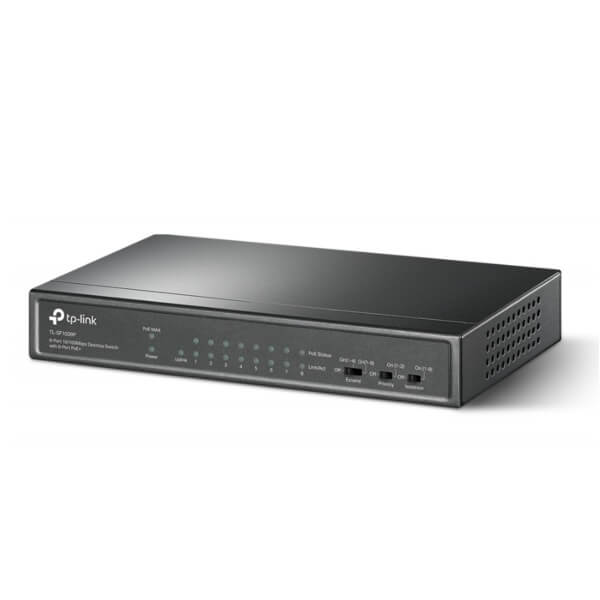

The Tplink TL-SF1009P Kuwait 9-Port 10/100 Mb/s PoE+ Compliant Unmanaged Switch Enhance your business network’s capacity to accommodate IP surveillance cameras, VoIP phones, access points, and more.

Category:

Description

Tplink TL-SF1009P Kuwait

The Tplink TL-SF1009P Kuwait 9-Port 10/100 Mb/s PoE+ Compliant Unmanaged Switch Enhance your business network’s capacity to accommodate IP surveillance cameras, VoIP phones, access points, and more. The Tplink TL-SF1009P Kuwait unmanaged switch boasts nine 10/100 Mb/s ports, with eight of them being PoE+ compliant, offering a combined power budget of 65W. Notably, all eight of these 30W PoE+ ports can be configured for Extend Mode, extending both data and power transmission over distances of up to 820 feet.

Furthermore, the switch provides a priority mode option for ports one and two, ensuring seamless high-speed video and audio traffic. Designed for effortless integration, this switch follows a plug-and-play setup, eliminating the need for additional hardware or software. Its fanless metal construction guarantees silent operation on desktops, and it can also be wall-mounted for flexibility in deployment.

Features

Powering PoE Devices

This Tplink TL-SF1009P Kuwait network switch features nine 10/100 Mb/s ports, eight of which are 30W PoE+ compliant to operate IP cameras, VoIP phones, access points, and other compatible devices.

Intelligent Power Management

The Tplink TL-SF1009P Kuwait is designed to intelligently cut power to lower priority devices to help ensure that high priority devices remain operational when the power consumption exceeds the 65W budget. The Tplink TL-SF1009P Kuwait switch automatically detects the power requirements for each connected device and works to prevent them from damage.

Extend Mode

Use the Extend Mode switch to extend the reach of the PoE+ ports from 100 feet at 100 Mb/s to up to 380 feet at 10 Mb/s for long-range surveillance installations.

Priority Mode

With a flip of a switch, ports one and two can be configured for Priority Mode, which helps to ensure smooth video and audio data transmissions.

Specifications

Interfaces

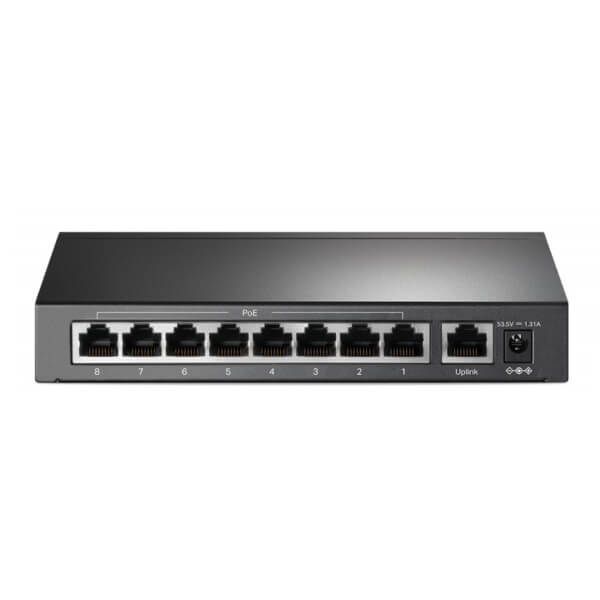

Ports 8 x 10/100 Mb/s Ethernet (RJ45) PoE+

1 x 10/100 Mb/s Ethernet (RJ45)

Protocols
Supported Protocols Auto-MDIX/MDI
Transmission Method Store-and-Forward
Jumbo Frames Support 2000 Bytes
MAC Address Table Size 2K
Standards
Supported IEEE Standards 802.3af, 802.3at, 802.3x
Performance
Forwarding Rate 1.33 Mpps
Switching Bandwidth 1.8 Gb/s
Electrical
Power Draw 77.1 W (Max)
PoE Power Budget 65 W
PoE per Port 30 W
Power Supply Type External
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 10 to 90%
Storage Temperature -40 to 158°F / -40 to 70°C
Storage Humidity 5 to 90%
General
Cooling System Passive
Indicator Lights Link/Activity, PoE, Power
Dimensions 6.7 x 3.9 x 1.1″ / 171 x 98 x 27 mm
Packaging Info
Package Weight 2.11 lb
Box Dimensions (LxWxH) 11 x 8.8 x 2.7″
