Tplink TL-SG1048 Dubai

Tplink TL-SG1048 Dubai

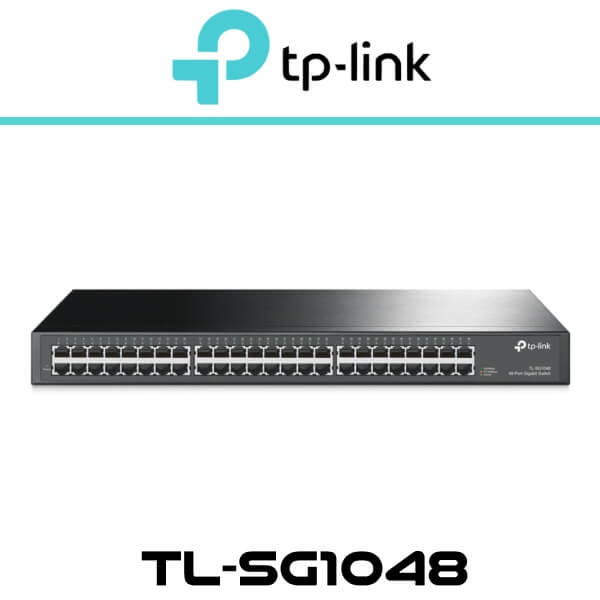

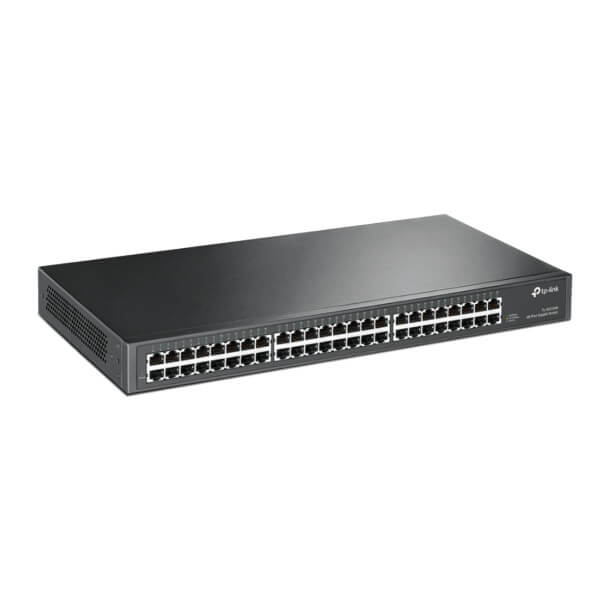

The Tplink TL-SG1048 Dubai is a 48-Port Gigabit Rackmount Switch by TP-Link, purpose-built to fulfill the connectivity demands of robust workgroups and departmental networks. This switch offers a dependable and user-friendly solution.

Category:

Description

Tplink TL-SG1048 Dubai

The Tplink TL-SG1048 Dubai is a 48-Port Gigabit Rackmount Switch by TP-Link, purpose-built to fulfill the connectivity demands of robust workgroups and departmental networks. This switch offers a dependable and user-friendly solution, free from the complexities of management, and boasts 48 10/100/1000Mbps ports. The Tplink TL-SG1048 Dubai seamlessly blends ease of use with unmatched performance, delivering exceptional value for budget-conscious network administrators seeking top-notch solutions at competitive prices.

Key Features:

Ease of Use The Tplink TL-SG1048 Dubai Gigabit Switch simplifies installation with its automatic features, enabling a plug-and-play experience that’s hassle-free. No complex configurations are needed. Auto MDI/MDI-X crossover support on all ports eliminates the requirement for crossover cables or uplink ports. Each port also features auto-negotiation, which detects the link speed of connected devices (10, 100, or 1000 Mbps) and intelligently adjusts settings for compatibility and peak performance. Its compact, space-saving design is ideal for desktop setups with limited space, and it can also be conveniently and securely rack-mounted. Dynamic LED indicators provide real-time status updates and basic fault diagnosis.

High Performance The Tplink TL-SG1048 Dubai boasts a non-blocking wire-speed architecture with an impressive 96Gbps switching capacity, ensuring maximum data throughput. Its 8K MAC address table offers scalability even for large networks. The switch also supports 802.3x Flow Control for full-duplex mode, while back pressure flow control is available for half-duplex mode, effectively alleviating traffic congestion and guaranteeing reliable data transmission.

TP-LINK Green Technology This next-generation 48-Port Gigabit Rackmount Switch, the Tplink TL-SG1048 Dubai, incorporates cutting-edge energy-efficient technologies that expand network capacity significantly while minimizing power consumption. It automatically adjusts power usage based on link status, reducing the carbon footprint of your network. Additionally, it complies with RoHS standards, which restrict the use of certain hazardous materials. Furthermore, a substantial portion of the packaging materials is recyclable, underlining its commitment to environmental sustainability.

Technical Specs

HARDWARE FEATURES
STANDARDS AND PROTOCOLS IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
INTERFACE 48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
NETWORK MEDIA 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
FAN QUANTITY 2
POWER SUPPLY 100-240VAC, 50/60Hz
POWER CONSUMPTION Maximum: 32.3W
DIMENSIONS ( W X D X H ) 17.32*8.7*1.73 in.(440*220*44 mm)
PERFORMANCE
SWITCHING CAPACITY 96Gbps
PACKET FORWARDING RATE 71.4Mpps
MAC ADDRESS TABLE 16K
BUFFER MEMORY 12Mb
JUMBO FRAME 12KB
TRANSFER METHOD Store-and-Forward
OTHERS
CERTIFICATION FCC, CE, RoHS
PACKAGE CONTENTS 48-Port Gigabit Rackmount Switch

Power Cord

Installation Guide

Rackmount Kits

Rubber Feet
