Description
Tplink TL-SG2008 Kuwait

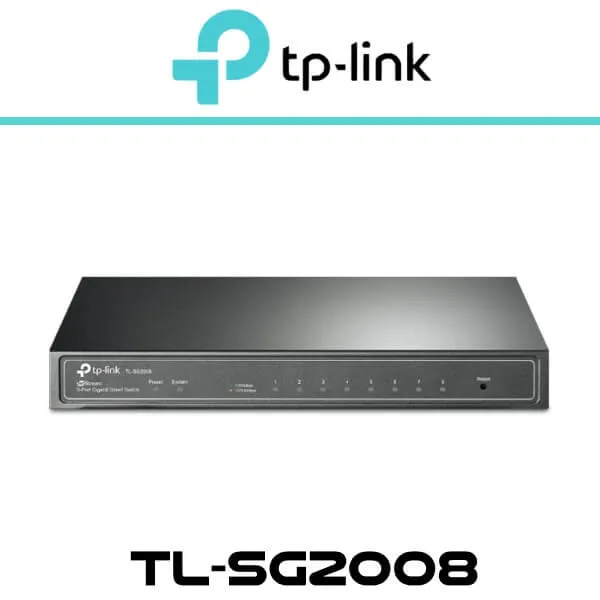

The Tplink TL-SG2008 Kuwait 8-Port Gigabit Smart Switch by TP-Link empowers network administrators with an array of Layer 2 network features, granting full control over diverse network functions. Equipped with loopback detection, cable diagnostics, and IGMP snooping capabilities, this switch excels at optimizing traffic management. Its eight Gigabit Ethernet ports deliver swift and dependable wired connections, complemented by advanced Quality of Service (QoS) features that simplify the prioritization of traffic. This ensures that bandwidth-intensive tasks receive the necessary network resources for efficient execution.
Features
Layer 2 Features
- Static Link Aggregation/ Link Aggregation Control Protocol (LACP)
- Up to 512 VLANs simultaneously(out of 4K VLAN IDs)
- STP/RSTP/MSTP
- IGMP Snooping
Quality of Service
- 4 priority queues
- Support IEEE 802.1P
- DSCP QoS
- Rate limit feature
Security Strategies
- Access Control List (L2~L4 ACL)
- Port Security
- Storm Control
- SSL and SSH encryptions
Management
- Web-based GUI
- Command Line Interface (Telnet)
- SNMP v1/v2c/v3
- RMON (1, 2, 3, 9 group)
Technical Specs
| Interfaces | |

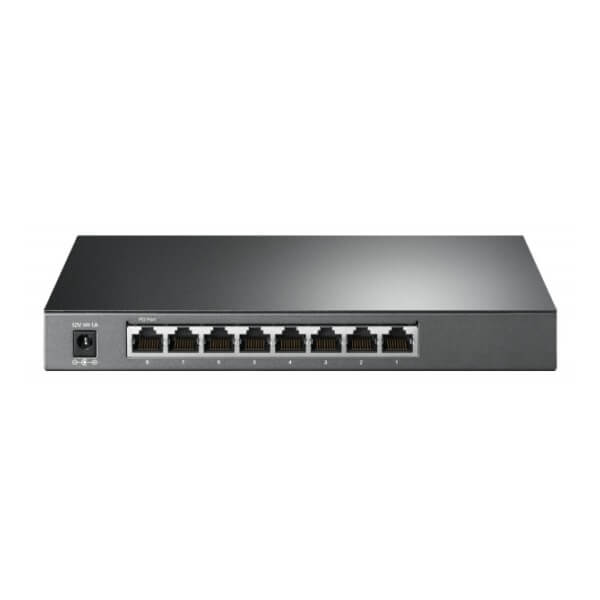

| Ports | 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) |
| Protocols | |
| Supported Protocols |
|
| Queuing | Strict Priority, Weighted Round Robin (WRR) |
| Jumbo Frames Support | 9,216 Bytes |
| MAC Address Table Size | 8K |
| VLAN Groups | 512 |
| VLAN IDs | 4000 |
| Security | |
| Security Features | Storm Control |
| Standards | |
| Supported IEEE Standards | 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.3ab, 802.3ad, 802.3i, 802.3u, 802.3x |
| Performance | |
| Forwarding Rate | 11.9 Mpps |
| Switching Bandwidth | 16 Gb/s |
| Priority Queues | 4 |
| Computer | |
| OS Compatibility |
|
| Electrical | |
| Power Draw | 6.42 W (Active) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 90% |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Storage Humidity | 5 to 90% |
| Certifications | RoHS, as per Manufacturer |
| General | |
| Cooling System | Passive |
| Dimensions | 8.2 x 4.9 x 1″ / 20.9 x 12.6 x 2.6 cm |
| Packaging Info | |
| Package Weight | 2.1 lb |
| Box Dimensions (LxWxH) | 11.024 x 8.898 x 2.677″ |
