Tplink TL-SL1218MP Kuwait

Tplink TL-SL1218MP Kuwait

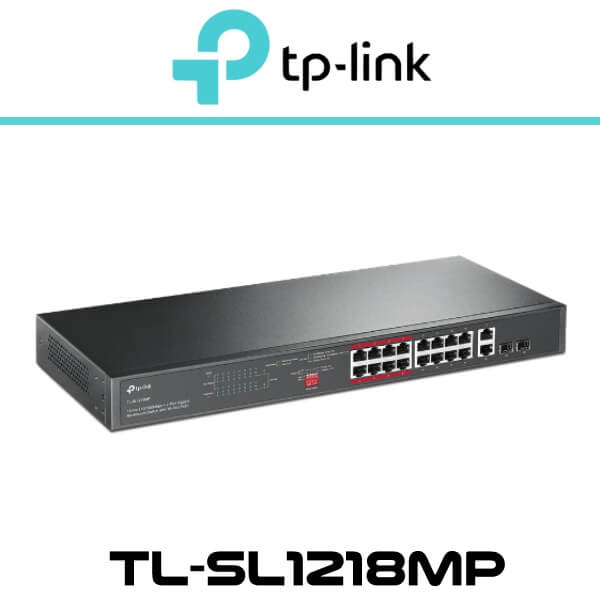

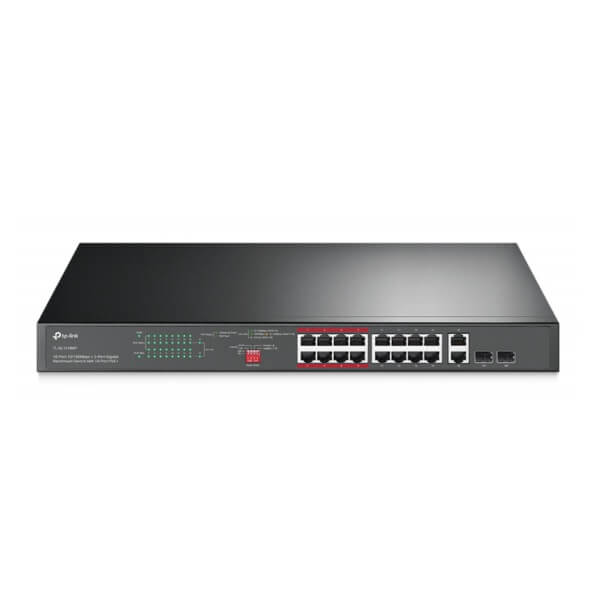

The Tplink TL-SL1218MP Kuwait PoE switch, featuring 16 ports that fully support the PoE+ standard. This switch offers a straightforward solution for expanding your wired network while simultaneously delivering power through the same Ethernet.

Category:

Description

Tplink TL-SL1218MP Kuwait

The Tplink TL-SL1218MP Kuwait PoE switch, featuring 16 ports that fully support the PoE+ standard. This switch offers a straightforward solution for expanding your wired network while simultaneously delivering power through the same Ethernet cable. With an impressive total power budget of 192W, capable of providing up to 30W per port, the Tplink TL-SL1218MP Kuwait can effectively power high-demand devices like Access Points, IP Cameras, IP Phones, and more.

Furthermore, the switch introduces an innovative Extend Mode, allowing devices to receive both PoE power and data transmission at distances of up to 250 meters*. Additionally, the Priority mode prioritizes Port 1-8, ensuring top-notch quality for sensitive applications.

Features

High PoE Power Budget

The Tplink TL-SL1218MP Kuwait complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.

Up to 250m Transmission for Surveillance

The Tplink TL-SL1218MP Kuwait is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.

Video Quality Guaranteed

Priority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.

Technical Specs

HARDWARE FEATURES
Interface
  • 16 PoE+ 10/100Mbps RJ45 Ports
  • 2 10/100/1000Mbps RJ45 Ports
  • 2 Combo Gigabit SFP Slots
Network Media
  • 10BASE-T : UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX : UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T : UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-X MMF, SMF
Fan Quantity 2 Fans
Physical Security Lock Yes
Power Supply 100-240V AC, 50/60 Hz
Backup Bandwidth 7.2 Gbps
PoE+ Ports(RJ45)
  • Standard : 802.3at/802.3af compliant
  • PoE Ports : Port1- Port16
  • PoE Power Budget : 192W
Mac Address Table 8K
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in.
(440 × 180 × 44 mm)
Max Power Consumption 18.7 W (no PD connected)
217.2 W (with 192W PD connected)
Max Heat Dissipation
  • 63.9 BTU/h (no PD connected)
  • 741.2 BTU/h (with 192W PD connected)
SOFTWARE FEATURES
Advanced Features
  • Compatible with IEEE 802.3at/af compliant devices
  • Port Priority Mode
  • Extend Mode (Up to 250m PoE power supply and data transmission)
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE802.3x Flow Control
Transmission Method Store-And-Forward
OTHERS
Certification FCC, RoHS
Package Contents
  • TL-SL1218MP
  • Power Cable
  • Installation Guide
Environment
  • Operating Temperature : 0°C~40°C (32°F~104°F)
  • Storage Temperature : -40°C~70°C (-40°F~158°F)
  • Operating Humidity : 10% ~ 90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
