Description

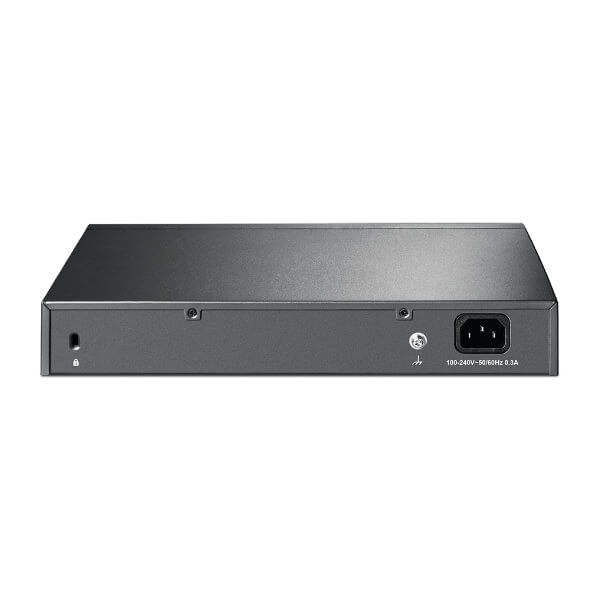

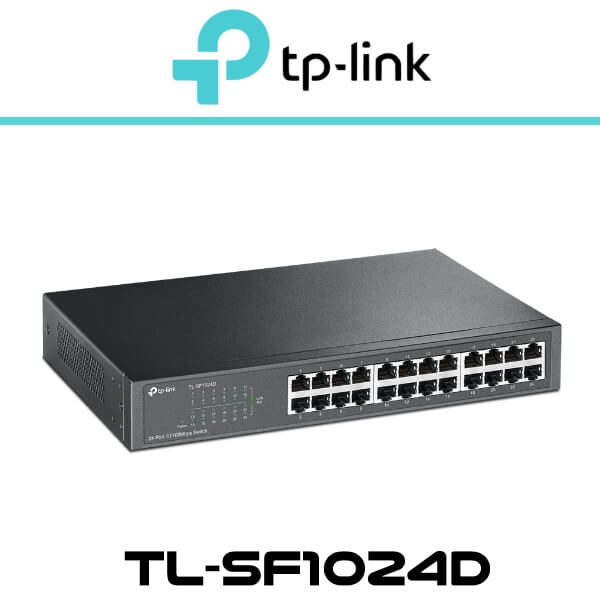

Tplink TL-SF1024D Kuwait
The Tplink TL-SF1024D Kuwait 24-Port 10/100Mbps Switch delivers a high-performance, budget-friendly, user-friendly, and effortless solution for seamlessly upgrading your aging network to a swift 100Mbps network. All 24 ports come equipped with auto MDI/MDIX support, eliminating cable type concerns and simplifying the plug-and-play process. Moreover, by harnessing innovative energy-efficient technology, the Tplink TL-SF1024D Kuwait can slash power consumption by up to 75%. Additionally, 80% of the packaging materials used are recyclable, making it an environmentally responsible choice for your business network upgrade.
Key Features:
TP-LINK Green Technology The Tplink TL-SF1024D Kuwait, part of the new generation of switches, incorporates cutting-edge energy-efficient technologies that significantly expand your network’s capacity while minimizing power consumption. It dynamically adjusts power usage based on link status and cable length, reducing your network’s carbon footprint. Additionally, it adheres to EU’s RoHS standards, which prohibit the use of certain hazardous materials. Furthermore, 80% of the packaging materials used are recyclable, underscoring its environmental responsibility.
High-Performance Design The Tplink TL-SF1024D Kuwait is thoughtfully designed with a robust rack-mount size steel case, complemented by a safety-certified internal power supply. This combination results in a highly durable product, particularly cost-effective for environments with fewer than 16 users. With its non-blocking switching architecture, the TL-SF1024D seamlessly handles packet forwarding and filtering at full wire-speed, ensuring optimal throughput. Moreover, IEEE 802.3x flow control is employed for Full Duplex mode, and backpressure is utilized for Half Duplex mode, effectively alleviating traffic congestion and ensuring the reliable operation of the TL-SF1024D.
User-Friendly Operation The Tplink TL-SF1024D Kuwait Fast Ethernet switch boasts automatic features that simplify installation, transforming it into a hassle-free, plug-and-play experience. No intricate configurations are necessary. Auto MDI/MDIX eliminates the need for crossover cables, and auto-negotiation on each port intelligently detects a network device’s link speed (10 or 100 Mbps), making real-time adjustments for compatibility and peak performance.
Technical Specs
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Interface | 24 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| Network Media | 10BASE-T : UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX : UTP category 5, 5e or above cable (maximum 100m) |
| Fan Quantity | Fanless |
| Power Supply | External Power Adapter(Output : 9VDC/0.6A) |
| Power Consumption | Maximum : 3.2W |
| Dimensions ( W x D x H ) | 11.6*7.1*1.7 in. (294*180*44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 3.19W(220V/50Hz) |
| Max Heat Dissipation | 10.88BTU/h |
| PERFORMANCE | |
| Switching Capacity | 4.8Gbps |
| Packet Forwarding Rate | 3.57Mpps |
| MAC Address Table | 8K |
| Buffer Memory | 2Mb |
| Green Technology | Innovative energy-efficient technology saves power up to 75% |
| Transfer Method | Store-and-Forward |
| OTHERS | |
| Certification | FCC, RoHS |
| Package Contents | 24-Port 10/100Mbps Desktop/Rackmount Switch
Power Cord Installation Guide Rackmount Kit Rubber Feet |
| Environment | Operating Temperature : 0℃~40℃ (32℉~104℉)
Storage Temperature : -40℃~70℃ (-40℉~158℉) Operating Humidity : 10%~90% non-condensing Storage Humidity : 5%~90% non-condensing |
