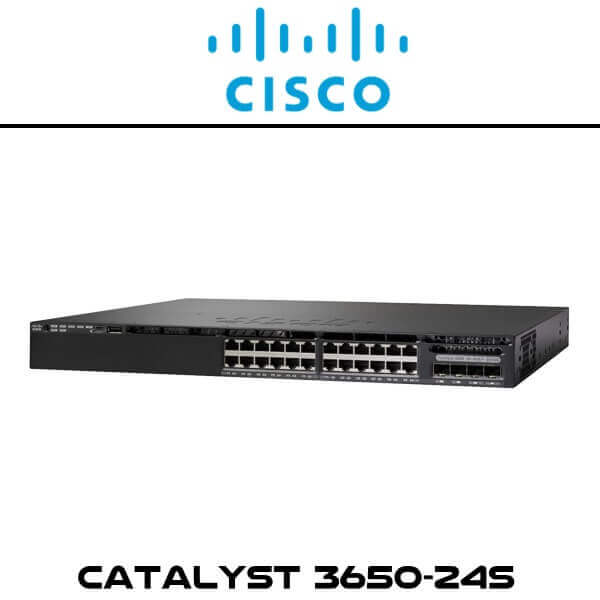

Cisco Catalyst3650-24S Network Switch Kuwait

The Cisco Catalyst3650-24S Kuwait Switch, with Cisco StackWise-160 Technology, can stack 9 switches and support up to 160 Gpbs stack bandwidth. The WS-C3650-24TS-L integrates with 24 Ethernet ports and 4 x 1G SFP uplink ports in IP Base feature set.

The Cisco Catalyst3650-24S Kuwait is the next generation enterprise-level standalone with stackable option switch with IP Base image. WS-C3650-24PS-S has 24 Gigabit Ethernet POE+ ports with 4 fixed 1G SFP uplink ports and provides fully convergence between wired and wireless capacity on a single platform.

The 3650 Series switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE®) on the Cisco Catalyst 3650 Series multigigabit switches, and offer modular and field-replaceable redundant fans and power supplies. The Cisco Catalyst3650-24S Kuwait switches also come in a 12-inch lower depth form factor so that you can deploy them in tight,  wires closets in remote branches and offices where depth of the switch is a concern.

Features

Integrated wireless controller capability with:

• Up to 40G of wireless capacity per switch (48-port models)
• Support for up to 50 access points and 1000 wireless clients on each switching entity (switch or stack)
• 24 and 48 10/100/1000 data and PoE+ models with energy-efficient Ethernet (EEE) supported ports
• 24 and 48 100-Mbps and 1-, 2.5-, 5-, and 10-Gbps (multigigabit) Cisco UPOE and PoE+ models with EEE[1]
• Five fixed-uplink models with four Gigabit Ethernet, two 10 Gigabit Ethernet, four 10 Gigabit Ethernet, eight 10 Gigabit Ethernet, or two 40 Gigabit Ethernet Quad Small Form-Factor Pluggable Plus (QSFP+) ports
• 24-port and 48-port 10/100/1000 PoE+ models with lower noise and reduced depth of 11.62 inches for shallow depth cabinets in enterprise, retail, and branch-office environments
• Optional Cisco StackWise-160 technology that provides scalability and resiliency with 160 Gbps of stack throughput
• Dual redundant, modular power supplies and three modular fans providing redundancy[2]
• Support for external power system RPS 2300 on the 3650 mini SKUs for power redundancy
• Full IEEE 802.3at (PoE+) with 30W power on all ports in 1 rack unit (RU) form factor
