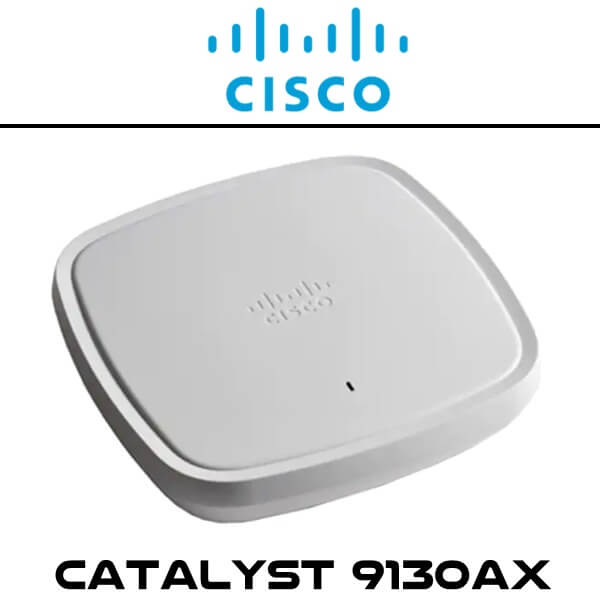

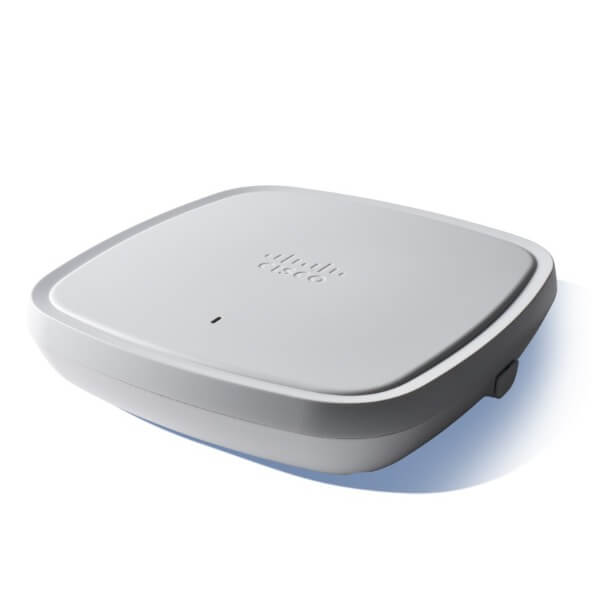

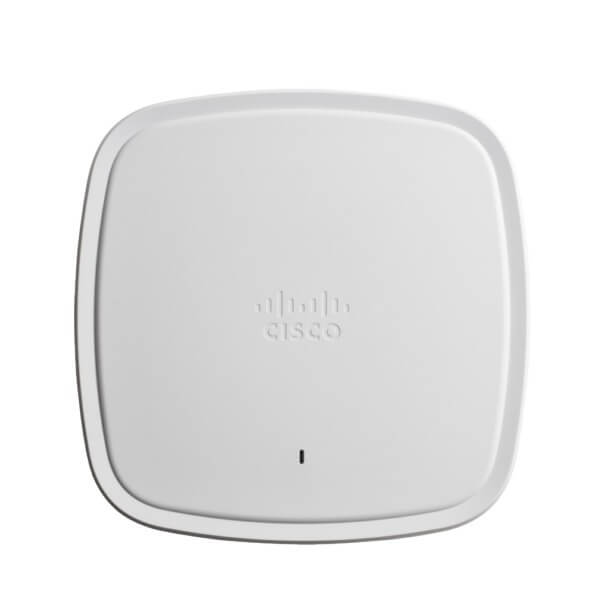

Cisco Catalyst9130AX Access Point Kuwait
Cisco Catalyst9130AX Kuwait Series Access Points provide a seamless experience anywhere for everyone, with high scaling and unmatched performance in diverse network deployments. Going beyond the Wi-Fi 6 (802.11ax) standard, the 9130AX Series provides integrated security, resiliency, and operational flexibility as well as increased network intelligence.
Extending Cisco’s intent-based network and perfect for networks of all sizes, the Cisco Catalyst9130AX Kuwait scales to meet the growing demands of IoT while fully supporting the latest innovations and new technologies. The 9130AX Series is also a leader in performance, security, and analytics.
The Cisco Catalyst9130AX Kuwait Access Points, paired with the Cisco Digital Network Architecture (Cisco DNA), are enterprise-class products that will address both your current and future needs. They are the first step in updating your network to take better advantage of all of the features and benefits that Wi-Fi 6 provides.
The Cisco Catalyst9130AX Kuwait Access Points support both Orthogonal Frequency-Division Multiple Access (OFDMA) and multiuser multiple input, multiple output (MU-MIMO), delivering more predictable performance for advanced applications and IoT. Additionally, with up to 5 Gbps and NBASE-T and IEEE 802.3bz Ethernet compatibility, the 9130 Series can seamlessly offload network traffic without any bottlenecks.
Key features :
- Wi-Fi 6 certified, supporting 802.11ax on both 2.4GHz and 5GHz bands
- Up to four Wi-Fi radios : 5GHz flexible radio (single 8×8 or dual 4×4), 2.4GHz (4×4) and Cisco RF ASIC
- OFDMA and MU-MIMO
- Multigigabit support
- Internal and external antenna
- Embedded Wireless Controller
- Cisco Flexible Radio Assignment and Cisco CleanAir Technology
- Four radios : 2.4 GHz (4×4), 5 GHz (8×8 and 4×4), Cisco RF ASIC, and BLE/IoT
Technical Details
| Software
|
Catalyst 9130AXI
- Cisco Unified Wireless Network Software Release 8.10.x or later
- Cisco IOS XE Software Release 16.12.1 with AP Device Pack, or later
|
| Supported wireless LAN controllers
|
- Cisco Catalyst 9800 Series Wireless Controllers
- Cisco 3504, 5520, and 8540 Wireless Controllers and Cisco Virtual Wireless Controller
|
| 802.11n version 2.0 (and related) capabilities
|
- 4×4 MIMO with four spatial streams
- Maximal Ratio Combining (MRC)
- 802.11n and 802.11a/g
- 20- and 40-MHz channels
- PHY data rates up to 1.5 Gbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz)
- Packet aggregation : Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive)
- 802.11 Dynamic Frequency Selection (DFS)
- Cyclic Shift Diversity (CSD) support
|
| 802.11ac
|
- 8×8 downlink MU-MIMO with eight spatial streams
- MRC
- 802.11ac beamforming
- 20-, 40-, 80-, and 160-MHz channels
- PHY data rates up to 6.9 Gbps (160 MHz with 5 GHz)
- Packet aggregation : A-MPDU (transmit and receive), A-MSDU (transmit and receive)
- 802.11 DFS
- CSD support
- WPA3 support
|
| 802.11ax
|
- 8×8 uplink/downlink MU-MIMO with eight spatial streams
- Uplink/downlink OFDMA
- TWT
- BSS coloring
- MRC
- 802.11ax beamforming
- 20-, 40-, 80-, and 160-MHz channels
- PHY data rates up to 10 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz)
- Packet aggregation : A-MPDU (transmit and receive), A-MSDU (transmit and receive)
- 802.11 DFS
- CSD support
- WPA3 support
|
| Integrated antenna
|
- 2.4 GHz : Peak gain 4 dBi, internal antenna, omnidirectional in azimuth
- 5 GHz : Peak gain 6 dBi, internal antenna, omnidirectional in azimuth
|
| External antenna with Smart antenna connector
|
- The Cisco Catalyst 9130AXE Access Point is certified for use with antenna gains up to 13 dBi (2.4 GHz and 5 GHz)
- Cisco offers the industry’s broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios
- Supports Self-Identifiable Antennas (SIA) on the Smart antenna connector
- Smart antenna connector is a compact multi-RF connector with 8-DART interface
- Requires the AIR-CAB002-D8-R= 2-fppt smart antenna connector when used with antennas with a RP-TNC connector
- Requires the AIR-CAB003-D8-N= 3 ft smart antenna connector when used with AIR-ANT2513P4M-N= antenna
|
| Interfaces
|
- 1x 100, 1000, 2500, 5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz
- Management console port (RJ-45)
- USB 2.0 at 4.5W (enabled via future software)
|
| Indicators
|
Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
| Dimensions (W x L x H)
|
Access point (without mounting brackets) :
C9130AXI : 8.9 x 8.9 x 1.88 in. (22.6 x 22.6 x 4.8 cm) |
| Environmental
|
Cisco Catalyst 9130AXI
- Non-operating (storage) temperature : -22° to 158°F (-30° to 70°C)
- Non-operating (storage) altitude test : 25˚C, 15,000 ft (4600 m)
- Operating temperature : 32° to 122°F (0° to 50°C)
- Operating humidity : 10% to 90% (noncondensing)
- Operating altitude test : 40˚C, 9843 ft (3000 m)
Note : When the ambient operating temperature exceeds 40°C, the access point will shift from 8×8 to 4×4 on the 5 GHz radio, uplink Ethernet will downgrade to 1 Gigabit Ethernet; however, the USB interface will remain enabled. |
| System memory
|
- 2048 MB DRAM
- 1024 MB flash
|
| Warranty |
Limited lifetime hardware warranty |
| Available transmit power settings
|
2.4 GHz
- 23 dBm (200 mW)
- 20 dBm (100 mW)
- 17 dBm (50 mW)
- 14 dBm (25 mW)
- 11 dBm (12.5 mW)
- 8 dBm (6.25 mW)
- 5 dBm (3.13 mW)
- 2 dBm (1.56 mW)
- -1 dBm (0.79 mW)
- -4 dBm(0.39 mW)
5 GHz
- 26 dBm (400 mW)
- 23 dBm (200 mW)
- 20 dBm (100 mW)
- 17 dBm (50 mW)
- 14 dBm (25 mW)
- 11 dBm (12.5 mW)
- 8 dBm (6.25 mW)
- 5 dBm (3.13 mW)
- 2 dBm (1.56 mW)
- -1 dBm (0.79 mW)
|
| Maximum number of nonoverlapping channels
|
2.4 GHz
- 802.11b/g :
- 802.11n :
- 802.11ax :
5 GHz
- 802.11a :
- 802.11n :
- 20 MHz : 26 FCC, 16 EU
- 40 MHz : 12 FCC, 7 EU
- 802.11ac/ax :
- 20 MHz : 26 FCC, 16 EU
- 40 MHz : 12 FCC, 7 EU
- 80 MHz : 5 FCC, 3 EU
- 160 MHz 2 FCC, 1 EU
Note : This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain. |
| Compliance standards |
Safety :
- IEC 60950-1
- EN 60950-1
- UL 60950-1
- CAN/CSA-C22.2 No. 60950-1
- AS/NZS60950.1
- UL 2043
- Class III equipment
Emissions :
- CISPR 32 (rev. 2015)
- EN 55032 (rev. 2012/AC :2013)
- EN 55032 (rev. 2015)
- EN61000-3-2 (rev. 2014)
- EN61000-3-3 (rev. 2013)
- KN61000-3-2
- KN61000-3-3
- AS/NZS CISPR 32 Class B (rev. 2015)
- 47 CFR FCC Part 15B
- ICES-003 (rev. 2016 Issue 6, Class B)
- VCCI-CISPR 32
- CNS (rev. 13438)
- KN-32
- QCVN 118 :2018/BTTTT
Immunity :
- CISPR 24 (rev. 2010)
- EN 55024 + AMD 1(rev. 2010)
- EN 55035 : 2017
- KN35
Emissions and immunity :
- EN 301 489-1 (v2.1.1 2017-02)
- EN 301 489-17 (v3.1.1 2017-02)
- QCVN (18 :2014)
- QCVN 112 :2017/BTTTT
- KN 489-1
- KN 489-17
- EN 60601-1-2 :2015
- EN 61000-6-1 : 2007
Radio :
- EN 300 328 (v2.1.1)
- EN 301 893 (v2.1.1)
- AS/NZS 4268 (rev. 2017)
- 47 CFR FCC Part 15C, 15.247, 15.407
- RSP-100
- RSS-GEN
- RSS-247
- China regulations SRRC
- LP0002 (rev 2018.1.10)
- Japan Std. 33a, Std. 66, and Std. 71
RF safety :
- EN 50385 (rev. Aug 2002)
- ARPANSA
- AS/NZS 2772 (rev. 2016)
- EN 62209-1 (rev. 2016)
- EN 62209-2 (rev. 2010)
- 47 CFR Part 1.1310 and 2.1091
- RSS-102
IEEE standards :
- IEEE 802.3
- IEEE 802.3ab
- IEEE 802.3af/at
- IEEE 802.11a/b/g/n/ac/ax
- IEEE 802.11h, 802.11d
Security :
- 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA3
- 802.1X
- Advanced Encryption Standard (AES)
Extensible Authentication Protocol (EAP) types :
- EAP-Transport Layer Security (TLS)
- EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol (MSCHAP) v2
- Protected EAP (PEAP) v0 or EAP-MSCHAP v2
- EAP-Flexible Authentication via Secure Tunneling (EAP-FAST)
- PEAP v1 or EAP-Generic Token Card (GTC)
- EAP-Subscriber Identity Module (SIM)
|
