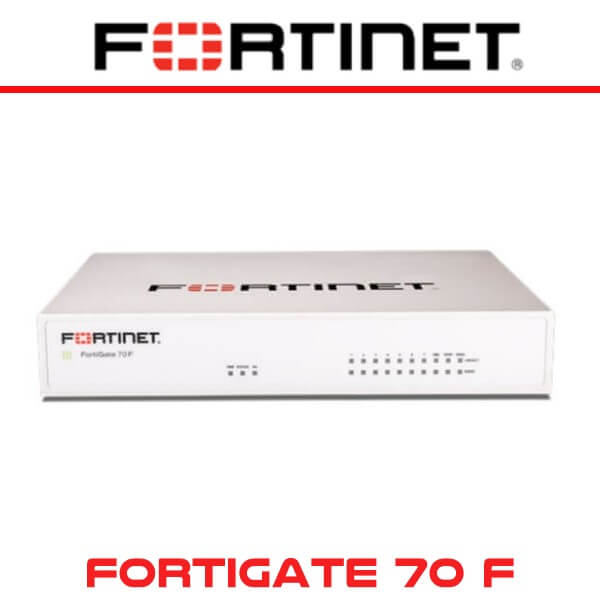

Fortigate 70F Kuwait

Fortigate 70F Kuwait

The FortiGate Next-Generation Firewall Fortigate 70F  is exceptionally well-suited for establishing security-focused networks in various distributed enterprise locations and reshaping WAN architecture, regardless of the scale.



Fortinet Fortigate 70F Firewall Kuwait

The FortiGate Next-Generation Firewall Fortigate 70F Kuwait is exceptionally well-suited for establishing security-focused networks in various distributed enterprise locations and reshaping WAN architecture, regardless of the scale. Equipped with a robust array of FortiGuard security services driven by AI/ML technology and our integrated Security Fabric platform, the Fortigate 70F Kuwait provides unified, automated, end-to-end protection against threats across all scenarios.

FortiGate leads the industry with its pioneering integration of SD-WAN and zero-trust network access (ZTNA) enforcement directly within an NGFW solution, all powered by a single operating system. The Fortigate 70F Kuwait takes charge of managing, verifying, and facilitating user access to applications, ensuring a consistent and optimized user experience with seamless efficiency.

Fortigate 70F Highlights

  • Gartner Magic Quadrant Leader for both Network Firewalls and SD-WAN.
  • Security-Driven Networking with FortiOS delivers converged networking and security.
  • Unparalleled Performance with Fortinet’s patented SoC processors.
  • Enterprise Security with consolidated AI / ML-powered FortiGuard Services.
  • Simplified Operations with centralized management for networking and security, automation, deep analytics, and self-healing.

Powered by Security Processing Unit (SPU)

Traditional firewalls cannot protect against today’s content- and connection-based threats because they rely on off-the-shelf hardware and general-purpose CPUs, causing a dangerous performance gap. Fortinet’s custom SPU processors deliver the power you need—up to 520Gbps—to detect emerging threats and block malicious content while ensuring your network security solution does not become a performance bottleneck.


Combines a RISC-based CPU with Fortinet’s proprietary Security Processing Unit (SPU) content and network processors for unmatched performance.

  • Delivers industry’s fastest application identification and steering for efficient business operations
  • Accelerates IPsec VPN performance for best user experience on direct internet access
  • Enables best of breed NGFW Security and Deep SSL Inspection with high performance
  • Extends security to access layer to enable SD-Branch transformation with accelerated and integrated switch and access point connectivity.

Hardware Features

Compact and Reliable Form Factor

Designed for small environments, you can place it on a desktop or wall-mount it. It is small, lightweight, yet highly reliable with a superior MTBF (Mean Time Between Failure), minimizing the chance of a network disruption.

Access Layer Security

FortiLink protocol enables you to converge security and the network access by integrating the FortiSwitch into the FortiGate as a logical extension of the NGFW. These FortiLink enabled ports can be reconfigured as regular ports as needed.


Hardware Specifications
GE RJ45 WAN / DMZ Ports 2 / 1
GE RJ45 Internal Ports 5
GE RJ45 FortiLink Ports (Default) 2
Wireless Interface
USB Ports 1
Console (RJ45) 1
Internal Storage
Trusted Platform Module (TPM) No
Bluetooth Low Energy (BLE) No
System Performance* — Enterprise Traffic Mix
IPS Throughput 2 1.4 Gbps
NGFW Throughput 2, 4 1 Gbps
Threat Protection Throughput 2, 5 800 Mbps
System Performance and Capacity
Firewall Throughput (1518 / 512 / 64 byte UDP packets) 10/10/6 Gbps
Firewall Latency (64 byte UDP packets) 2.54 μs
Firewall Throughput (Packets Per Second) 9 Mpps
Concurrent Sessions (TCP) 1.5 M
New Sessions/Second (TCP) 35 000
Firewall Policies 5000
IPsec VPN Throughput (512 byte) 1 6.1 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 200
Client-to-Gateway IPsec VPN Tunnels 500
SSL-VPN Throughput 6 405 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 200
SSL Inspection Throughput (IPS, avg. HTTPS) 3 700 Mbps
SSL Inspection CPS (IPS, avg. HTTPS) 3 500
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 100 000
Application Control Throughput (HTTP 64K) 2 1.8 Gbps
CAPWAP Throughput (HTTP 64K) 8.5 Gbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of FortiSwitches Supported 24
Maximum Number of FortiAPs (Total / Tunnel Mode) 64 / 32
Maximum Number of FortiTokens 500
High Availability Configurations Active-Active, Active-Passive, Clustering
