Description

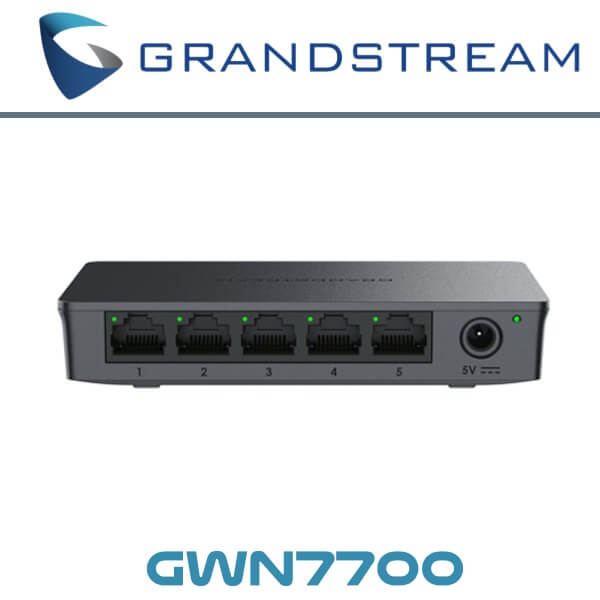

Grandstream GWN7700 Network Switch Kuwait
The Grandstream GWN7700 Kuwait series are unmanaged network switches that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses. It requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables. Each port supports auto-negotiation to allow the Grandstream GWN7700 Kuwait to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance. The PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points, and other PoE endpoints.
Grandstream GWN7700 Kuwait Features
- 5/8 Gigabit Ethernet ports
- 802.3 af/at compliant with up to 30W on each port, PoE
models only - Supports deployment in IPv6 and IPv4 networks
- Green technology reduces power consumption
- Support for long cable connections
- LED Indicators; Per Port : Link/Activity/Speed, Per Device : Power
- Auto MDI/MDIX crossover for all ports
- The GWN7700 series supports up to 8 Gigabit ports depending on the model, supporting up to 16Gbps switching capacity and 9KB Jumbo Frame capabilities
- All GWN7700 devices support Auto-Negotiation and Auto MDI/ MDIX, which are two features that help ensure the network and all devices within it are operating at high transmission rates
Technical Specs
- Model : GWN7700
- Box Contents :
- 1x GWN7700 Switch
- 1x Power Adapter
- 1x QIG
- Gigabit Ports : 5
- PoE Ports : N/A
- Enclosure : Plastic
- Mounting : Desktop/ Wall-Mount
- Standards and Protocols :
- IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.1p
- IEEE 802.3af
- IEEE 802.3at
- Port Feature :
- 5× 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation
- AUTO MDI/MDIX
- Network Media :
- 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
- PoE Configuration : N/A
- LED Indicators :
- Per port : Link/Activity Green
- Per device : Power Green
- Mac Address Table : 2K
- Switching Capacity : 10Gbps
- Jumbo Frame : 9KB
- Advanced Features :
- Mac Address Auto-Learning And Auto-Aging
- IEEE 802.3x Flow Control
- 802.1p/DSCP QoS
- IGMP :
- IGMP Fast-Leave
- IGMP Snoop
- Route Port Autolearn
- Query Refresh Member Port
- Power Adapter :
- External 5V/0.6A
- Max Power Consumption by Base System :
- 1.7W
- Environmental :
- Operating Temperature : 0 to 40 °C (32 to 104 °F)
- Storage Temperature : -40 to 70 °C (-40 to 158 °F)
- Operating Humidity : 10% to 90% Non-condensing
- Storage Humidity : 5% to 90% Non-condensing
- Compliance :
- FCC, CE, RCM, IC, UKCA
