Description

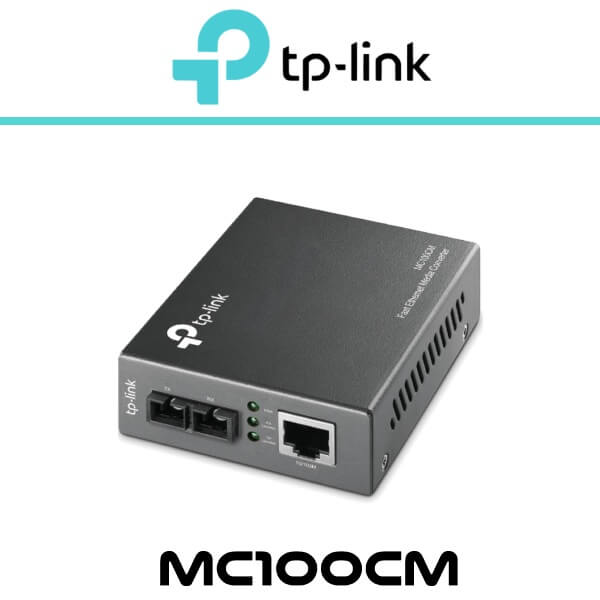

Tplink MC100CM Kuwait
The Tplink MC100CM Kuwait functions as a media converter, purpose-built to establish connections between 100BASE-FX fiber and 100Base-TX copper, in both directions. It adheres to the IEEE 802.3u standards for 10/100Base-TX and 100Base-FX, utilizing multi-mode fiber cable with an SC-Type terminal for physical connections.
The Tplink MC100CM Kuwait Media Converter fully supports longwave (LX) laser specifications while maintaining a consistent wire-speed forwarding rate. It operates at a wavelength of 1310nm for both data transmission and reception. With Auto MDI/MDI-X for the TX port and automatic negotiation of duplex mode, it offers flexibility in network configuration. This Media Converter excels in transmitting data over extended fiber optic distances, covering multi-mode fiber spans of up to 1.2 miles (2km).
Quick Features
- Tplink MC100CM Kuwait complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- The Tplink MC100CM extends fiber distance up to 1.2 miles (2km)
Technical Specs
| Brand | Tp-link |
| MEDIA CONVERTER & MODULE | |
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Basic Function |
|
| Ports |
|
| Wave Length | 1310nm |
| Network Media 10BASE-T |
|
| Network Media 100BASE-T |
|
| Network Media 100BASE-FX | Multi-mode Fiber |
| LED Indicators | PWR, Link/Act |
| Dimensions (W*D*H) | 3.7 × 2.9 × 1.1 in. (95 × 73 × 27 mm) |
| Power Supply | External power supply |
| Max Power Consumption | 2.4W |
| Safety & Emission | FCC, CE, RoHS |
| Environment |
|
