Description

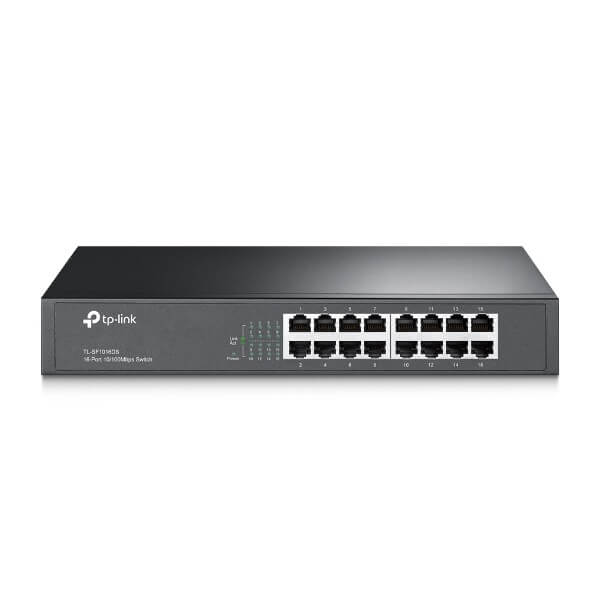

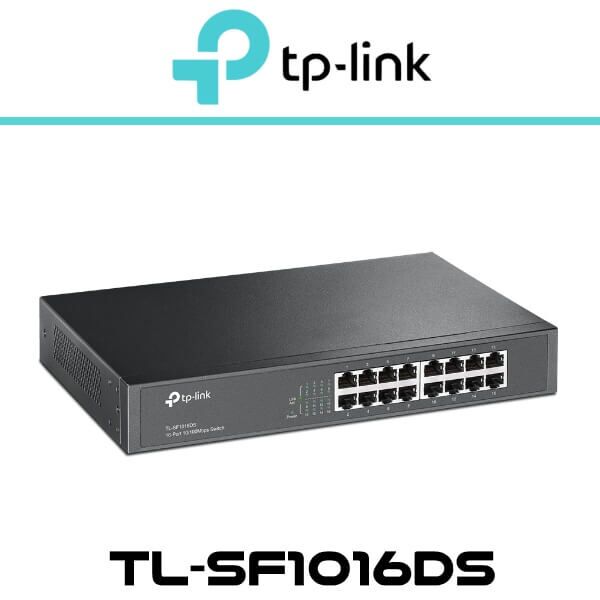

Tplink TL-SF1016DS Kuwait
The Tplink TL-SF1016DS Kuwait Fast Ethernet Switch offers a robust, cost-effective, user-friendly, and straightforward solution for modernizing your existing network to a blazing-fast 1000 Mbps. With all 16 ports equipped with Auto MDI/MDIX support, cable compatibility concerns become a thing of the past – simply plug and play. Furthermore, thanks to its innovative power-saving technology, the Tplink TL-SF1016DS Kuwait can trim power consumption by as much as 25%.
Features
High performance
The rack-mounted metal housing combined with a safe, certified internal power supply makes the Tplink TL-SF1016DS Kuwait a very robust and affordable solution for up to 16 users. Using the unlocked switching architecture, the TL-SF1016DS transmits and filters packets at full cable speed for maximum throughput. IEEE 802.3x flow control for full duplex mode and Backpressure for half duplex mode reduce network overload and ensure reliable operation of TL-SF1016DS.
- Innovative energy-saving technology saves up to 25% of energy consumption
- Supports IEEE 802.3x flow control for full duplex mode and Backpressure for half duplex mode
- Unlocked switching architecture transmits and filters packets at full cable speed to ensure maximum throughput
- Switching capacity 3.2 Gbit/s
- Storage and transfer; switching scheme
- Auto MDI / MDIX function eliminates the need for crossover cables
- Supports automatic MAC address learning and automatic aging
- Automatic port negotiation function provides intelligent hardware integration from 10 to 100 Mbit/s
- Plug and Play design simplifies installation
- Fanless design for silent operation
Technical Specs
| Features / filters | |
| LAN standard | Fast Ethernet 10/100Mb/s |
| Number of LAN ports | 16x [10/100M (RJ45)] |
| Number of WAN ports | Not applicable |
| 10G support | N |
| AC adapter included | Y |
| AC input frequency | 50/60 |
| AC input voltage | 220 – 240 |
| Auto MDI/MDI-X | Y |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Built-in modem | None |
| Certification | FCC, CE, RoHS |
| Depth | 180 |
| Height | 44 |
| LED indicators | Y |
| MAC address table | 8000 |
| Management | No |
| Networking standards | IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
| Numbers of pieces in the package | 1-pack |
| Operating relative humidity (H-H) | 10 – 90 |
| Operating temperature (T-T) | 0 – 40 |
| Packet buffer memory | 2 |
| Power connector | DC-in jack |
| Power consumption (typical) | 2.23 |
| Power over Ethernet (PoE) | N |
| Power supply included | Y |
| Product colour | Black |
| Rack mounting | Y |
| Storage relative humidity (H-H) | 5 – 90 |
| Storage temperature (T-T) | -40 – 70 |
| Switching capacity | 3.2 |
| Switching layer | 2 |
| Throughput | 2.38 |
| Type of case | Desktop |
| Width | 294 |
| Equipment features | |
| Standards and protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Ports | 16 RJ45 10/100Mbps ports (automatic connection speed negotiation, Auto MDI/MDIX auto crossover) |
| Network cabling | 10Base-T: Cat 3, 4 or 5 UTP cable (up to 100m)
100Base-Tx: Cat 5 or 5e UTP cable (up to 100m) |
| Fanless | Yes |
| Physical security | Yes |
| Power supply | 100-240VAC, 50/60Hz |
| Power consumption | Maximal: 2.23W (220V/50Hz) |
| Dimensions (S x G x W) | 294×180×44 mm (11.6×7.1×1.7 inches) |
| Installation | Rack Mountable |
| Max. energy consumption | 2.06W(220V/50Hz) |
| Amount of heat generated | 7.03BTU/h |
| Performance | |
| Switching efficiency | 3.2Gb/s |
| Speed of packet redirection | 2.38Mp/s |
| MAC address plate | 8K |
| Buffer size | 2Mb |
| Advanced Functions | Green Technology
802.3X Flow Control |
| Green technology | Energy saving – reduces energy consumption by up to 75% |
| Switching architecture | Store-and-Forward |
| Other | |
| Certificates | FCC, CE, RoHS |
| Package contents | Switch TL-SF1016DS
Power Cable Installation instructions Mounting elements Rubber feet |
| System requirements | Microsoft Windows 8, 7,Vista, XP or MAC OS, NetWare, UNIX or Linux. |
| Working environment | Operating temperature: 0℃~40℃ (32℉~104℉);
Storage temperature: -40℃~70℃ (-40℉~158℉); Operating air humidity: 10%~90%, non-condensing Storage humidity: 5%~90%, non-condensing |
